- Page 1 INSTRUCTION MANUAL APW1000 / 2000 / 3000 Power Amplifiers...
-
Page 2: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock do not remove cover (or back panel). No CAUTION: user serviceable parts inside. Refer servicing to qualified personnel only. To reduce the risk of fire or electric shock, do not expose this apparatus to WARNING: rain or moisture. - Page 3 Sentences preceded by symbol contain important safety instruction. Please read it carefully. DETAILED SAFETY INSTRUCTIONS. Water and moisture: This apparatus should not be used near water (i.e. bathtub, kitchen sink, swimming pools, etc.) Ventilation: This apparatus should be placed in position that doesn’t interfere with correct ventilation. This unit, for example, should not be placed on a bed, sofa cover o similar surfaces that could cover ventilation openings, or placed in a built-in installation, such a bookcase or a cabinet that could block air flow trough ventilation openings.
- Page 4 Objects or liquid entry inside the unit: Be careful that no objects fall or liquid is spilled inside the unit through ventilation openings. Safe power line use: • Keep firmly the plug and the wall outlet while disconnecting the unit from AC power. •...
- Page 5 In case of interferences from source signal, THD value will raise over 10%. Don’t place this unit in a bookshelf o in other places with small room. • PROEL S.P.A. is not responsible for any damage that occurs due to a wrong unit installation.

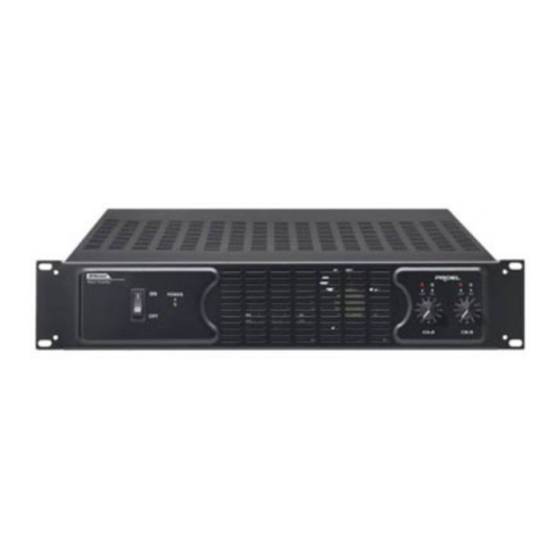

- Page 6 Thank you for choosing one of Proel products, and for your confidence towards our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional installation systems. DESCRIPTION APW series amplifier has been specifically designed for paging, music, and sound reinforcement applications in P.A.
-
Page 7: Front Panel Description
FRONT PANEL DESCRIPTION fig.1 Power switch and power LED. A & B level controls. SIG LED (Signal LED) – these LEDs indicate that a signal is present after the level controls. OL LED (Overload LED) – these LEDs turn on when the output of the amplifier reaches its maximum. -
Page 8: Rear Panel Description
REAR PANEL DESCRIPTION fig.2 XLR & 6.3mm. (1/4” TRS) jack, balanced linked inputs. 30Hz sub-sonic filter. CLIP LIMITER circuit on/off switch. AMP MODE selector: MONO – Input A only is active and its signal is routed to both amplifier stages. The level control of channel A sets the output level for CHANNEL A &... -
Page 9: Technical Specifications
Mains AC IEC standard power input. TECHNICAL SPECIFICATIONS Model APW 1000 APW 2000 APW 3000 Output RMS Power in 480x2 @ 2Ω 800x2 @ 2Ω 1400x2 @ 2Ω Watts – MONO 300x2 @ 4Ω 450x2 @ 4Ω 750x2 @ 4Ω STEREO modes 205x2 @ 8Ω... - Page 10 This unit complies with CE Directive 73/23/CEE (Low Voltage) and following modifications 93/68/CEE, by European Specifications: EN 60065:1998 Disclaimer Proel SpA pursue a policy of continuous research and development. Proel SpA reserve the right to modify product circuitry and appearance at any moment, without prior notice.
- Page 11 Notes...
- Page 12 PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia 37/43 64027 Sant’Omero (Te) – Italy Tel: +39 0861 81241 Fax: +39 0861 887862 E-mail: info@proelgroup.com installation.proelgroup.com...
