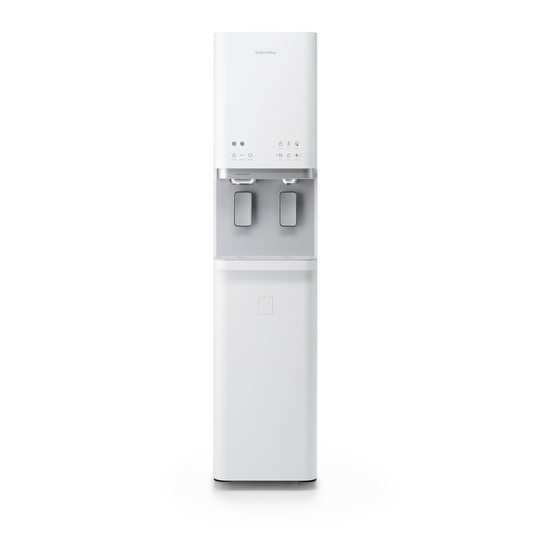

- Page 1 Coway Water Filtration Device CHPI-620L This product is for domestic use only. It cannot be used in overseas countries where the power voltage is different. Warranty card is included in this user’s manual. Read and save these instructions. This paper can be recycled.
- Page 2 FEATURES A water filtration device with an ice-making feature It is conveniently designed to provide cold water and ice. Simple ice dispensing lever The user can easily get ice just by gently pressing the ice dispensing lever. Dispenser hole lighting When an ambient/cold/hot water or ice outlet is in use, a soft lamp will light up.
-
Page 3: Table Of Contents
DEAR CUSTOMERS COWAY Coway Ice-Making Water Purifier. Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual. -
Page 4: Safety Information
SAFETY INFORMATION DANGER : Failing to follow the precautions below may result in serious injury or even death. Do not use a damaged power plug or loose electric outlet. P lease connect the power plug to a dedicated grounded electrical outlet for 220 V - 240 V~ 50 Hz. - Page 5 For Information N ever place the product in water. D o not disassemble, repair, or modify the product at your own discretion. D o not place any containers with water, medicine, food, metallic objects or flammable material on top of the product. U nplug the system before cleaning it.
- Page 6 SAFETY INFORMATION WARNING : Failing to follow the precautions below may result in considerable physical injury or property damage. Do not let children hang on to the product or climb on it. T his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand...
- Page 7 For Information CAUTION : Failing to follow the precautions below may result in slight physical injury or property damage. Do not install the product on a sloped surface. Do not apply force or impact to the product. W hen the product is in use, maintain a distance of at least 4 inch from the walls.
-
Page 8: Parts Name
PARTS NAME Front / Back Top Cover Rear Cover Power Cord Control Part Ice Dispenser Hole Cold/Hot/Ambient Water Faucet Radiator Grill Cup Dispenser Touch Lever Drip Tray Front Drain Cover Outlet Hose for (Hot water) Reject Water (Blue) Inlet Hose for the Main Water Supply (Orange) Front Cover Height-adjusting Feet... -
Page 9: Water Filtration Process
Using a filter that is not certified or even using a certified filter for too long may reduce the filter performance. The 5-step water filtration system (CHPI-620L) First filter : Neo-Sense filter - Step 1 : Neo-Sense filter removes particulate materials, such as sand and rust, from the main water supply. - Page 10 PLEASE CHECK BEFORE USE Please check before use! This water filtration unit must be plugged into its own dedicated 240 V~ 50 Hz, AC only electric outlet. It must be plugged into a grounded 240 V~ 50 Hz outlet. It must be connected to a correct power source for the product to run normally. Open the main water supply valve.
- Page 11 BUTTONS AND INDICATORS How to use Indication Part L ock Feature L ight Indicator Sensor C ontinuous S ervice Dispense check Indicator lights P ower Saving Indicator I ce Lock H ot Water Indicator Indicator I ce Full A mbient Indicator Water I ce On...
- Page 12 BUTTONS AND INDICATORS Control Part C ontinuous I ce Lock Dispense Button Button P ower Saving Button H ot Water Button I ce On A mbient Button Water Button C old Water H ot Water Button Lock Button Ice Lock Button Ice On Button Use this button to activate/deactivate the Use this button to activate/deactivate the...
- Page 13 How to use the Cold Water feature Press the Cold Water button for a few seconds and check if the Cold Water indicator is on. The indicator light will light up based on the cold water temperature. Press the Cold Water button again for a few seconds to deactivate it. How to use the Hot Water feature Press the Hot Water button for a few seconds and check if the Hot Water indicator is on.
- Page 14 HOW TO GET THE DESIRED WATER How to Get Cold Water Push the Cold Water button and press a glass against the dispenser lever to dispense cold water. - I f the unit does not dispense cold water, check if the Cold Water indicator is on (refer to P.10).
- Page 15 How to use How to Get Ambient Water Push the Ambient Water button and press a glass against the dispenser lever to dispense ambient water. - I f the unit does not dispense ambient water, check if the Ambient Water indicator is on (refer to P.10).
-
Page 16: How To Install
For own dedicated 240 V~ 50 Hz, AC only electric outlet Connect the orange inlet hose into the tap water supply pipe Connect the reject water drain hose Tap water supplying hose (orange) tubing Reject water outlet hose (blue) tubing (CHPI-620L) - Page 17 Maintenance Be Careful! WHERE TO INSTALL THE WATER FILTRATION UNIT I Install the product in a cool part of the room, on an even surface, avoid direct sunlight and away from humidity, dust, and dripping water. WATER FILTRATION INSTALLATION LOCATION II Allow a clearance of 10 cm or more behind the product, and level the water filtration unit.
-
Page 18: How To Clean
HOW TO CLEAN How to Clean the Internal Water Tank 1. Use the drain hose to completely drain the water from the internal tank, and save the drained water. For cold water, push the Cold Water button and press the dispenser lever to drain cold water. For ambient/hot water, open the front drain cover and use the drain hose to drain the water. - Page 19 Maintenance 4. Separate the antibacterial filter from the cover of the internal water tank, and shake & rinse it out in clean stored water before putting it back in. 5. Please wipe the inside of the cold water/ice storage tank and the surface of the evaporator using a soft cloth.
- Page 20 HOW TO CLEAN 8. Close the internal water container cover and top cover, plug in the electric power cord, and open the water supply valve. Check if the water is dispensed from the cold/ambient/ hot water faucet before restarting the water filtration unit by pressing the Ice Lock/Hot Water/Cold Water buttons. Close the internal water tank cover completely.
-
Page 21: Cleaning Method
CLEANING METHOD Maintenance How to Clean the Drip Tray 1. How to separate the drip tray Separate the drip tray and wipe the inside with a soft cloth. 2. How to assemble the drip tray Slightly lift the drip tray cover. How to Separate and Clean the Basket 1. -
Page 22: Filter Replacement
If filters are not replaced regularly, filtered water quality may be compromised. Estimated filter replacement cycles may vary depending on the quality of the main water supply or the volume of the filtration. CHPI-620L Filter Model Expected Replacement Cycle... -
Page 23: How To Replace The Filter
HOW TO REPLACE THE FILTER Maintenance Don’t Forget to Replace the Filter! 1. Unplug the power cord, close the water supply valve, and completely drain the water inside the filtration unit (refer to P. 17). 2. After removing the fitting from the filter to be replaced, replace the filter (use a proper tool for the separation). - Page 24 TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items.
- Page 25 PRODUCT SPECIFICATIONS Others Product Name Electric Cold Water Dispenser (Hot Water and Ice Maker combined) Model CHPI-620L Filtration Method Reverse osmosis system Recovery Rate 50 % (343 kPa, 25 °C, NaCl 200 ppm) Rated Power Input Cool : 1.1 A, Heat : 260 W – 310 W...
- Page 26 WATER FLOW DIAGRAM CHPI-620L Ambient Water Tank Ice Tray Inlet Valve Feed-NOS Valve Cooling Tank Tank Cold Water Inlet Valve Drain Heating Tank 3 WAY Valve Drain Tank Ambient/Cold/ Hot Water Extraction Main Water Hand Valve Ice/Cold Water Drain Reject Water...
- Page 27 MEMO Others...
- Page 28 Water Filtration System Performance Data Sheet Model : CHPI-620L This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 58 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 58.
- Page 29 The RO component of the CHPI-620L system must be replaced every 24 months to ensure the system will continue to remove pentavalent arsenic. The component identification and locations where you can purchase the component are listed in the installation/...
- Page 30 0.0046 1,1,2-trichloroethane 0.150 0.0005 > 99 trichloroethylene 0.180 0.0010 > 99 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.300 0.015 chlorodibromomethane xylenes (total) 0.070 0.001 > 99 COWAY Co., Ltd. 136-23, Yugumagoksa-ro, Yugu-eup, Gongju-si, Chungcheongnam-do, 32508 Korea Tel. : 82-41-850-7879...
- Page 31 MEMO Others...
- Page 32 MADE IN KOREA 9230976 www.coway.com...
