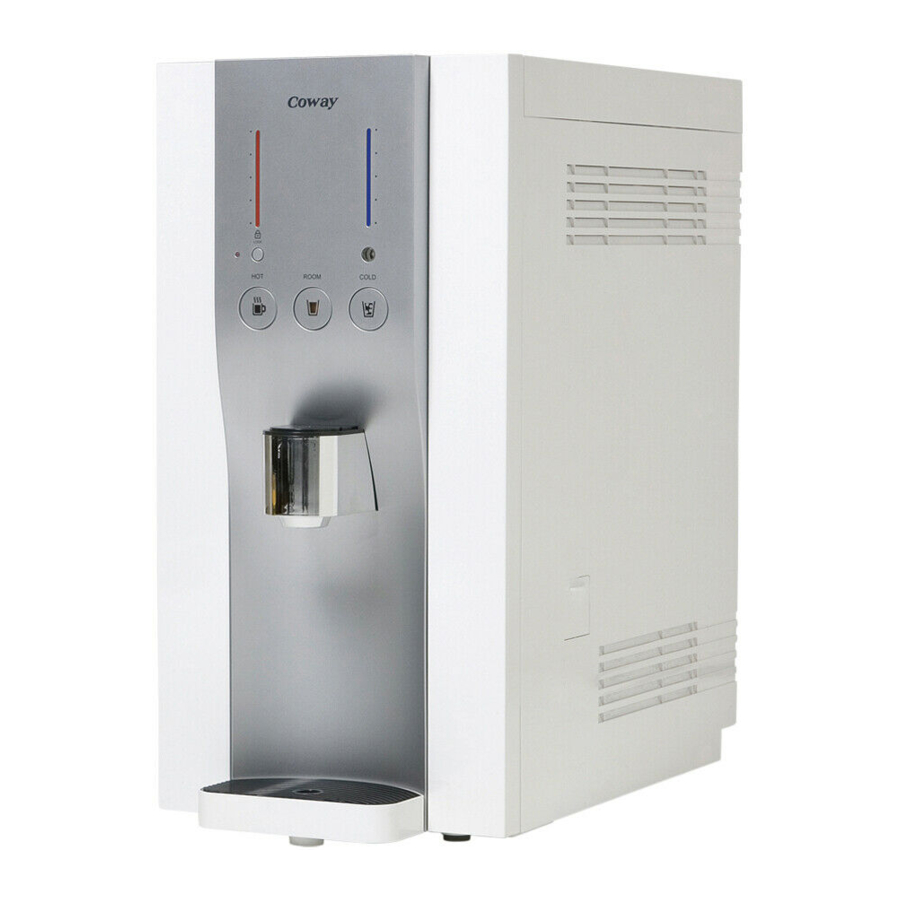

CHP-06DL
Water Filtration Device
• This product can not be used if the voltage is different from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User's Manual before use.
• Warranty card is included in this User's Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHP-06DL and is the answer not in the manual?

Questions and answers

Related Manuals for Coway CHP-06DL

Summary of Contents for Coway CHP-06DL

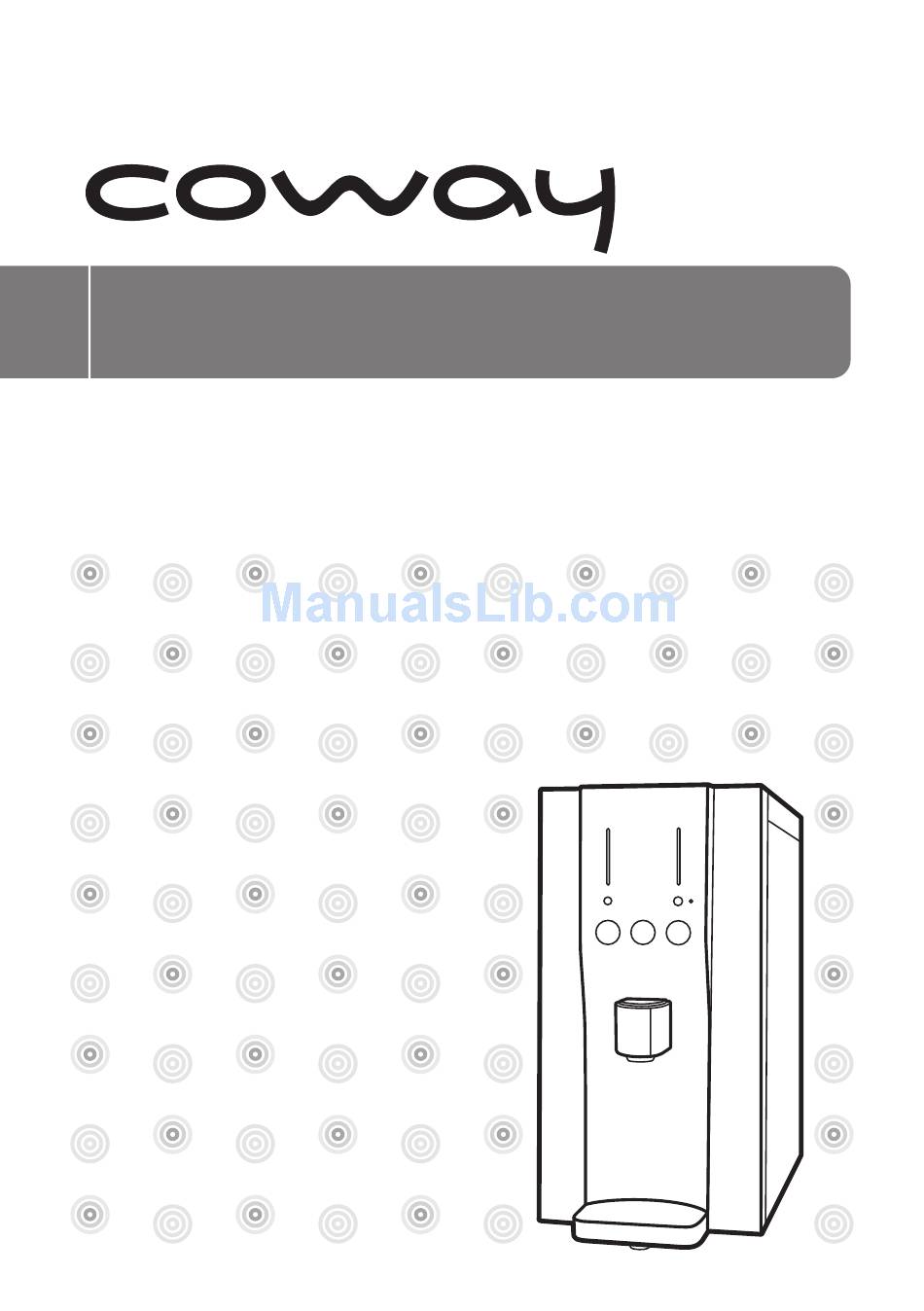

  • Page 1 CHP-06DL Water Filtration Device • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES 1. Quantitive extraction function It is convenient as we can drink a glass of water by performing the quantitive extraction. 2. Hot water locking device, hot water warning effects device It applied the hot water locking devices to prevent the danger of burn when child extracts the hot water by the curiosity, and the hot water doesn’t be extracted and it gives the warning sound even if you press the hot water extraction button in the locking status.

  • Page 3: Table Of Contents

    User’s Manual. As this manual contains the product warranty card, please keep it in a safe place. The CHP-06DL is tested and certified by WQA according to NSF/ ANSI 42, 53, 58 and 372.

  • Page 4: Safety Information

    • In the case the power cord is damaged, do not replace the cord yourself. Call Coway Service Center to have it replaced. • Do not install near a heating device. • When the water is coming inside of the product or there is a puddle on the product, call Service Center after closing the supplying valve and unplugging.
  • Page 5 • If our product produces a strange noise or odd smell, immediately unplug from the electrical outlet and call our Service Center. • Do not put the candle, a light for cigarette on the products. • Do not place any containers with water, medicine, food, small metallic objects, or any flammable material on the top of the product.
  • Page 6 SAFETY INFORMATION Warning : If not observed, serious injury or property damage could occur. • If the electric outlet is wet, carefully unplug the unit and let the electric outlet completely dry before subsequent use. • Unplug the product before repair, inspection, or parts replacement.
  • Page 7 Caution : If not observed, minor physical injury or property damage may occur as a result . • The filtration device installation shall comply with applicable state and local regulations. • Use after closing the water tank cover completely inside of the product.

  • Page 8: Parts Name

    PARTS NAME Front Indicators Light detection sensor Controls Extraction button Cold/Hot/Room(Ambient) Extraction Faucet Gutter Rear Top Cover Cooling Stopper Radiator Grill Power Cord Inlet(Orange) Outlet(Blue)

  • Page 9: Water Filtration Process

    Step 4 : INNO-SENSE FILTER Step 5 : ANTIBACTERIAL FILTER* The CHP-06DL conforms to NSF/ANSI 42, 53 and 58 for the reduction of Aesthetic Chlorine, Taste and Odor, VOCs, Pentavalent Arsenic, Barium, Radium 226/228, Cadmium, Hexavalent Chromium, Trivalent Chromium, Lead, Copper, Selenium and TDS as verified and substantiated by test data and NSF/ANSI 372 for low lead compliance.

  • Page 10: Installation Precautions

    INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1. Close main water supply valve to separate the faucet. 2. Apply the teflon tape on the adaptor and fit it to the pipe. Do not turn the water pipe. 3.
  • Page 11 Please check before use! Only connect the power cord to the voltage rating that matches it on the rating plate. • Open the main water supply valve. The main water must be supplied to operate the water filtration device normally. • After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use. • When the indicator in the indication part is turned off When the indicator in the indication part is turned off, check if the power supply was stopped due to the power failure or other cause.
  • Page 12 INDICATION / OPERATION PART Indication part / Operation part Hot water temperature Cold water temperature indicator indicator Hot water mode indicator Extraction button Hot water locking indicator Extraction indicator LED Hot water locking button Cold water mode indicator Hot water selection button Light sensor Room(ambient)
  • Page 13 Operation part Hot water locking button Hot water selection button To select/deselect hot water locking To select/deselect hot water mode. mode. (Pressing so long) When you lock the hot water, the Use when you wish to extract the hot water doesn’t be extracted even hot water.(Pressing shortly) if you press the extraction button.
  • Page 14 INDICATION / OPERATION PART To use the hot water locking mode Press the hot water locking button for about 3 seconds and check if the hot water locking indicator in the indicator part is turned on. If you wish to turn off the hot water locking mode, press hot water locking button for about 3 seconds or more.
  • Page 15 HOW TO USE To drink the cold water If you check the cold water temperature indicator and press the extraction button by selecting the cold water button, about 1 cup of the cold water (paper cup basis) is extracted. When you press the extraction button again during...
  • Page 16 HOW TO USE To drink the room(ambient) water When you select the room(ambient) water button and press the extraction button, about 1 cup of the room(ambient) water (paper cup basis) is extracted. When you press the extraction button again during the extraction, the extraction is stopped. To extract continuously If you select a type of water (cold water/hot water/ room temperature water) and press and hold...

  • Page 17: Installation

    Cooling stopper supply valve voltage rating that matches it on the rating plate. Outlet tubing (Blue, CHP-06DL) Connect the orange color inlet tubing to the tap water supplying pipe. Connect the outlet tubing(CHP-06DL) Inlet tubing (Orange) Outlet tubing (Blue, CHP-06DL)
  • Page 18 When the position is moved, connect the power cord when 30 minutes passes after installing. To maintain optimal product performance, consult a Coway engineer for the detailed installation methods. There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory.

  • Page 19: Cleaning Method

    CLEANING METHOD Storage tank 1. Turn off by pressing cold water/hot water mode selection button in the front of the product for 3 seconds or more and unplug the power cord. Close the main water supply valve. 2. Open the side draining door and pull out the red draining faucet. Empty the water tank completely using the draining hose and unplug the power cord.
  • Page 20 CLEANING METHOD 4. Please mount the antibacterial filter * again after separating it from the water tank cover and cleaning it by shaking in the drained water. (Antibacterial filter – option *) 5. Please wipe the surface of the storage tank with soft clothes.

  • Page 21: Gutter

    7. Open the main water supply valve after closing the upper cover. Please operate the water filtration device again by pressing cold water/hot water mode selection button in the front of the product after checking if the water is coming from the extraction faucet.

  • Page 22: Filter Replacement

    Please replace filters at a specified replacement cycle. For replacement filters, please contact Coway authorized dealers and distributors.  Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product.

  • Page 23: Filter Replacement Method

    FILTER REPLACEMENT METHOD 1. Close the main water supply valve after unplugging the power cord, and drain the water inside of the water filtration device (See P.19). ▶ 2. Lift the front draining door and release 1 fixed screw using the phillips driver.
  • Page 24 FILTER REPLACEMENT METHOD 3. After separating the fitting connected to the filter to replace, please replace the filter. (Separate the fitting using the proper tool.) When you are replacing filters, please make sure that a corresponding filter and a hose are firmly connected and that there is no leakage. It is recommended to empty the water tank filled with the filtered water at Tips least one time right after the filter replacement.

  • Page 25: Troubleshooting

    TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items.
  • Page 26 TROUBLESHOOTING Symptom Check Measures to take • Isn’t it about time to change the filter? Request the filter replacement. • Wasn’t the water cut or the main water supply Open the main water supply valve. The water doesn’t valve closed? come or the amount of input •...
  • Page 27 SPECIFICATION Product Water Filtration Device Model CHP-06DL Filtration Method RO(Reverse Osmosis) Power Supply Refer to the rating plate. Room Water Cold Water 2.3 L Tank Capacity Hot Water 1.2 L Total 6.5 L Dimension 260 mm(W) × 440 mm(D) × 510 mm(H) Working Temperature 5 °C - 35 °C...

  • Page 28: Water Flow Diagram

    WATER FLOW DIAGRAM CHP-06DL FEED-NOS Valve Check Valve Storage tank Disposed Water Feed Water Valve Cooling tank 3 WAY Valve Heating tank Cool / Hot / Room Water Hot Water Drain Disposed Water The Antibacterial filter contains silver, which is known to inhibit the propagation of microorganisms and to...
  • Page 29 MEMO...

  • Page 30: One Year Limited Warranty

    INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY.
  • Page 31 If the Product fails to operate for its accident, alteration, improper installation or intended purpose, then notify Coway or its other acts that are not the fault of Coway or Representative Agency within 48 hours or the manufacturer of the product or that are within the next business day after discovery not covered by the manufacturer’s warranty;...
  • Page 32 MADE IN KOREA 1206872 www.coway.com...
