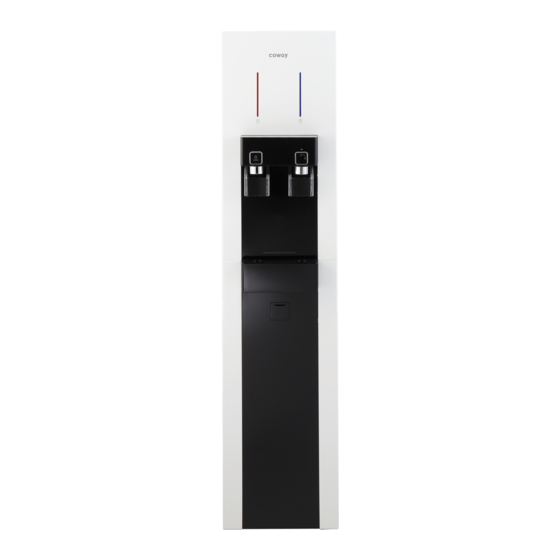

CHP-590N
Water Filtration Device
• This product can not be used if the voltage is different from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User's Manual before use.
• Warranty card is included in this User's Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHP-590N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coway CHP-590N

Summary of Contents for Coway CHP-590N

  • Page 1 CHP-590N Water Filtration Device • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES A display to show the status at a glance This display uses various indicators so you can see the product's status conveniently at a glance. Hot water safety tap A safety equipment is installed on the hot water tap to prevent burns from hot water (90 ℃...

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway Water Filtration Device Thank you for using Please read this Users’ Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place.

  • Page 4: Safety Information

    SAFETY INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. for 220 V - 240 V use only for 120 V use only Danger : If not observed, serious injury or even death could occur.
  • Page 5 • If our product produces a strange noise or odd smell, immediately unplug from the electrical outlet and call our Service Center. • Do not put the candle, a light for cigarette on the products. • Do not place any containers with water, medicine, food, small metallic objects, or any flammable material on the top of the product.
  • Page 6 SAFETY INFORMATION Warning : If not observed, serious injury or property damage could occur. • If the electric outlet is wet, carefully unplug the unit and let the electric outlet completely dry before subsequent use. • Unplug the product before repair, inspection, or parts replacement.
  • Page 7 Caution : If not observed, minor physical injury or property damage may occur as a result . • The filtration device installation shall comply with applicable state and local regulations. • Use after closing the water tank cover completely inside of the product.

  • Page 8: Parts Name

    PARTS NAME Front Control panel Indicators Cold / Room Water Changeover Dial Cold / Room Water Faucet Cup-Touch Lever Hot Water Safety Button Hot Water Faucet Gutter Front Drain Cover (Hot water) Front Cover Leveling Feet...
  • Page 9 Rear Radiator Grill Distance Maintenance Bar Installation location Heatproof Plate Inlet(Orange) Tubing Power Cord Rear Cover...

  • Page 10: Water Filtration Process

    If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 5-step water filtering system (CHP-590N) Step 1, 2: NEO-SENSE FILTER Removes particles such as sand or rust from source water and protects the other filters.
  • Page 11 INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1. Close main water supply valve to separate the faucet. 2. Apply the teflon tape on the adaptor and fit it to the pipe. Do not turn the water pipe. 3.
  • Page 12 INSTALLATION PRECAUTIONS Please check before use! Only connect the power cord to the voltage rating that matches it on the rating plate. • After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use. •...
  • Page 13 INDICATION / OPERATION PART Indication part / Operation part 1 Hot water 2 Cold water H ot water lock temperature temperature button indicator indicator 3 Hot water 4 Cold water Cold water mode mode mode selection button indicator indicator Indication part Hot water temperature Cold water temperature indicator...
  • Page 14 INDICATION / OPERATION PART Indication part Hot water mode Cold water mode selection button selection button To select/deselect hot water To select/deselect cold water mode. mode. To use the Cold Water function ■ Press the cold water mode selection button and check that the cold water mode indicator light is on.
  • Page 15 HOW TO USE To drink the cold water Turn the cold water conversion knob to the left and push the Cup-Touch Lever to enjoy cold water. ▶ - If cold water is not dispensed from the water purifier, check that the Cold Water indicator is lit up on the display (see page 13).
  • Page 16 HOW TO USE To drink the room water Turn the cold water conversion knob to the right and push the Cup-Touch Lever to enjoy room water. ▶...

  • Page 17: Maintenance

    INSTALLATION Follow the instruction for installation Main water supply valve Distance maintenance bar installation location voltage rating that matches it on the rating plate. Connect the orange color inlet tubing to the tap water supplying pipe. Inlet tubing (Orange)
  • Page 18 When the position is moved, connect the power cord when 30 minutes passes after installing. To maintain optimal product performance, consult a Coway engineer for the detailed installation methods. There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory.

  • Page 19: Cleaning Method

    CLEANING METHOD Storage tank 1. Hold down both the cold water/hot water function buttons at the front of the product for 2 seconds to turn the product off and then unplug the power cord. Lock the water supply valve. 2. Use the outlet tubing to completely drain all water from inside the purifier. ∗...
  • Page 20 CLEANING METHOD 4. Detach the antibacterial filter from the water tank cover and shake in water from the product to clean, then reinstall. ▶ ▶ 5. Wipe the interior water tank surfaces with a soft cloth. 6. Rinse the interior water storage tank clean with water taken in advance from the product, and then use the outlet tubing to completely drain.

  • Page 21: Gutter

    Gutter 1. Detaching the gutter Remove the gutter cover and then raise the gutter to easily detach it. ▶ 2. How to assemble the gutter Attach the gutter to the front of the product and then gently lift the gutter cover. Main body Wipe with a soft, dry cloth.

  • Page 22: Faucets

    CLEANING METHOD Faucets 1. Turn the taps in a clockwise direction to detach. 2. Wash the detached taps in running water. 3. Remove moisture from the taps with a soft, dry cloth. 4. After cleaning is finished, turn the taps in a counterclockwise direction to reattach.

  • Page 23: Filter Replacement

    Please replace filters at a specified replacement cycle. For replacement filters, please contact Coway authorized dealers and distributors.  Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product.

  • Page 24: Filter Replacement Method

    FILTER REPLACEMENT METHOD 1. Close the main water supply valve after unplugging the power cord, and drain the water inside of the water filtration device (See P.18). ▶ 2. After separating the fitting connected to the filter to replace, please replace the filter.

  • Page 25: Troubleshooting

    TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items.

  • Page 26: Specification

    SPECIFICATION Product Water Filtration Device Model CHP-590N Power Supply Refer to the rating plate. Room Water Cold Water Tank Capacity Hot Water Total 12 L Dimension 260 mm(W) × 448 mm(D) × 1 150 mm(H) Working Temperature 5 °C - 35 °C (41 °F - 95 °F) Production Rate 720 L/d (25 °C, 0.14 Mpa)

  • Page 27: Water Flow Diagram

    WATER FLOW DIAGRAM CHP-590N Feed-NOS Valve Over Heating Constant Flow Storage Fitting Tank Cooling Tank Cool/Room Heating Water Water Tank Feed Water Hot Water Drain...
  • Page 28 Water Filtration System Performance Data Sheet Model: CHP-590N This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42 and 53 for the reduction of the substances listed below and NSF/ANSI 372 for lead-free compliance. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.
  • Page 29 0.0046 1,1,2-trichloroethane 0.150 0.0005 > 99 trichloroethylene 0.180 0.0010 > 99 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.300 0.015 chlorodibromomethane xylenes (total) 0.070 0.001 > 99 COWAY Co., Ltd. 136-23, Yugumagoksa-ro, Yugu-eup, Gongju-si, Chungcheongnam-do, 32508 Korea Tel. : 041-850-7879...

  • Page 30: Warranty Card

    INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY.
  • Page 31 If the Product fails to operate for its accident, alteration, improper installation or intended purpose, then notify Coway or its other acts that are not the fault of Coway or Representative Agency within 48 hours or the manufacturer of the product or that are within the next business day after discovery not covered by the manufacturer’s warranty;...
  • Page 32 1225943 www.coway.com...
