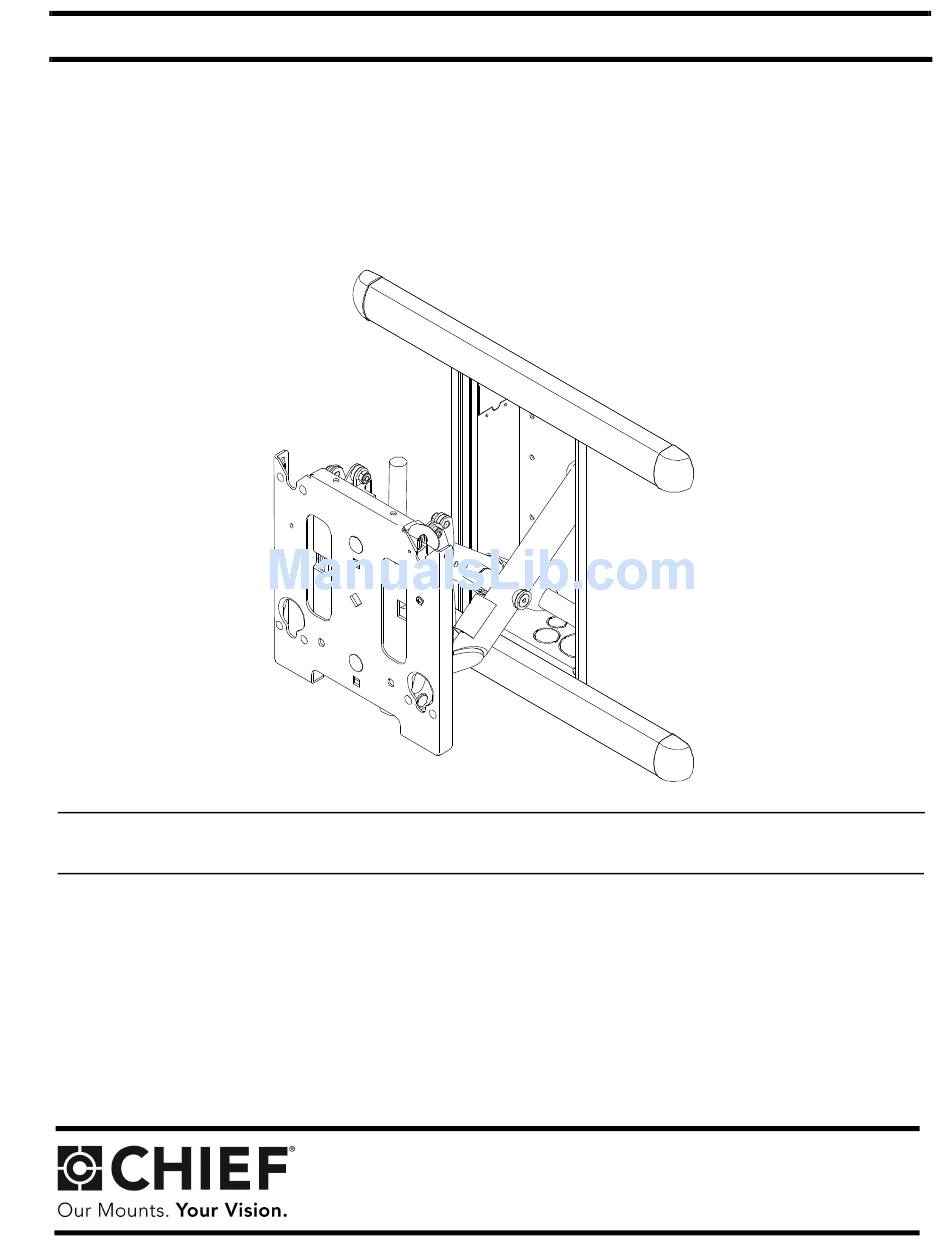

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Installationsanleitung Instruções de Instalação Medium Flat Panel In-Wall Mount Istruzioni di installazione Installatie-instructies Instructions d´installation Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description MIWRF SERIES...
-
Page 2: Installation Instructions
MIWRF SERIES DISCLAIMER Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 Installation Instructions MIWRF SERIES TOOLS REQUIRED FOR INSTALLATION AND PARTS 1/2" 1/8" 7/16" 9/16" 1" Universal Interface Bracket provided with Models MIWRFUB and MIWRFVB not shown. B (2) A (1) C (4) D (4) E (2) F (1) G (2)
- Page 4 MIWRF SERIES Installation WARNING: IMPROPER INSTALLATION CAN RESULT IN DEATH OR SERIOUS PERSONAL INJURY! This accessory should be installed by qualified personnel only. WARNING: IMPROPER INSTALLATION CAN LEAD TO MOUNT FALLING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! DO NOT deviate from installation instructions provided.
- Page 5 (B) if required. (See Figure 6) (B) x 2 Secure mount to studs using four flat washers (F2) and four Lag screws(F1). (See Figure 7) MIWRF SERIES IMPROPER INSTALLATION CAN LEAD TO Figure 5 (C) x 4 Figure 6...
- Page 6 MIWRF SERIES (F1) x4 (A) x1 Figure 7 Cover and Trim Installation Cover Installation To install covers: (F2) x4 Install upper and lower wall channel covers (E) by tipping cover top down and positioning as shown in end view of figure below.
-
Page 7: Display Installation
(See Figure 11) Remove pin and nuts and move to lower holes. MIWRF SERIES Figure 10 A padlock or bolt may be placed through latch holes... -
Page 8: Cable Management
MIWRF SERIES CABLE MANAGEMENT WARNING: IMPROPER INSTALLATION CAN LEAD TO SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Make sure cables do not run through pinch points. Locate and install cable tie clips (J) where desired for proper cable routing. (See Figure 12) Figure 12 Route cables down arms on mount. - Page 9 (See Figure 17) Adjust display height by turning adjustment nut in desired direction. (See Figure 17) Tighten adjustment locking screw when display is at desired height. (See Figure 17) Figure 17 MIWRF SERIES (on back side in this view)
- Page 10 MIWRF SERIES YAW Tension Adjustment The mount is designed to accommodate up to 37.5 deg. of travel to left and right of center. To adjust YAW tension: With display installed, loosen adjustment screw using hex wrench. (See Figure 18) Check for desired tension.
- Page 11 Installation Instructions MIWRF SERIES DIMENSIONS...
- Page 12 MIWRF SERIES Chief Manufacturing, a products division of Milestone AV Technologies 8805-000249 Rev A 2008 Milestone AV Technologies www.chiefmfg.com 11/08 USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands...
