- Page 1 Инструкция для Chief PAC722 Перейти в карточку товара 8 800 775 98 98...
-
Page 2: Installation Instructions

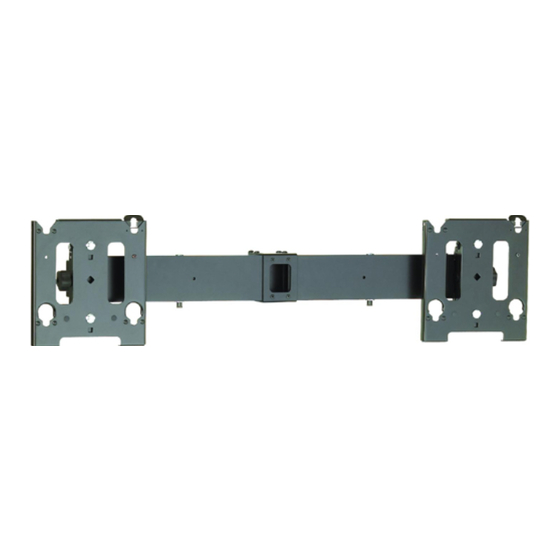

I N S T A L L A T I O N I N S T R U C T I O N S PAC722 MAC722 Medium/Large Side-by-Side Accessory for Carts and Stands Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description MAC722 / PAC722... -
Page 3: Important Warnings And Cautions
WARNING: Failure to provide adequate structural strength Chief® is a registered trademark of Milestone AV Technologies. for this component can result in serious personal injury or All rights reserved. damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. - Page 4 Installation Instructions MAC722 / PAC722 DIMENSIONS MAC-722 33.50 4.50 58.80 4.01 MAXIMUM DISPL AY WIDT H F ROM CART / ST AND FRO NT 5° T IL T EXT E NDE D CONFI G URAT IO N 7.87 39.18 MI NI MUM DISPLAY WIDT H...
-
Page 5: Tools Required For Installation
MAC722 / PAC722 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16" (Included) 1/2" (12.7mm) PARTS A (1) [Extension Assembly] G (4) F (4) B (1) 5/16" 5/16-18 x 3-1/2" [PAC722 Left C (1) Head Assembly] [PAC722 Right Head Assembly] H (1) 3/16"... -
Page 6: Assembly And Installation
Attach faceplates (B and C) OR (D and E) to the extension assembly (A) using two 5/16-18 x 3-1/2" button head cap screws (F) and two 5/16" locking nuts (G) for each The MAC722 and PAC722 side-by-side accessories are for use faceplate. (See Figure 3) with Chief carts and stands. -
Page 7: Attaching Displays
MAY LEAD TO SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to ensure the total amount of weight placed on the MAC722 does not exceed 125 lbs (56.7 kg) [62.5 lbs (28.3) per faceplate]; OR on the PAC722 does not exceed 150 lbs (68.0 kg) [75 lbs (34.0) per faceplate]. -
Page 8: Cable Management
Installation Instructions MAC722 / PAC722 WARNING: EACH DISPLAY MAY WEIGH IN EXCESS OF 40 LBS! Always use two people and proper lifting techniques when installing or positioning display on stand. Lower display into place listening for audible "click" to ensure recessed area of mounting buttons are properly seated in lower area of mounting holes. - Page 9 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
- Page 10 Chief PAC722 Описание...
