TMV2 (T2MK75F16D, T2MK75F16DQ, T2MK77F16D, and T2MK77F16DQ):
TMV2 accommodates a variety of Mercury boards with or without Altronix sub-assemblies for access systems.
Mercury Access Controllers:
1. Fasten spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 6, pg. 7).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 6a, pg. 7).
3. Mount backplane to enclosure with hardware.
Altronix Sub-Assemblies and/or Adapters:
1. Fasten spacers to pems which match the hole pattern (C) for Altronix Sub-Assemblies (Fig. 6, 6a, pg. 7).
2. Mount boards to spacers utilizing pan head screws provided with the product (Fig. 6, pg. 7).
Access Controller Position Chart for the Following Models:
Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
Sub-Assembly or Adapter
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), VR6, GB1 (Genetec Synergis Cloud Link adapter plate)

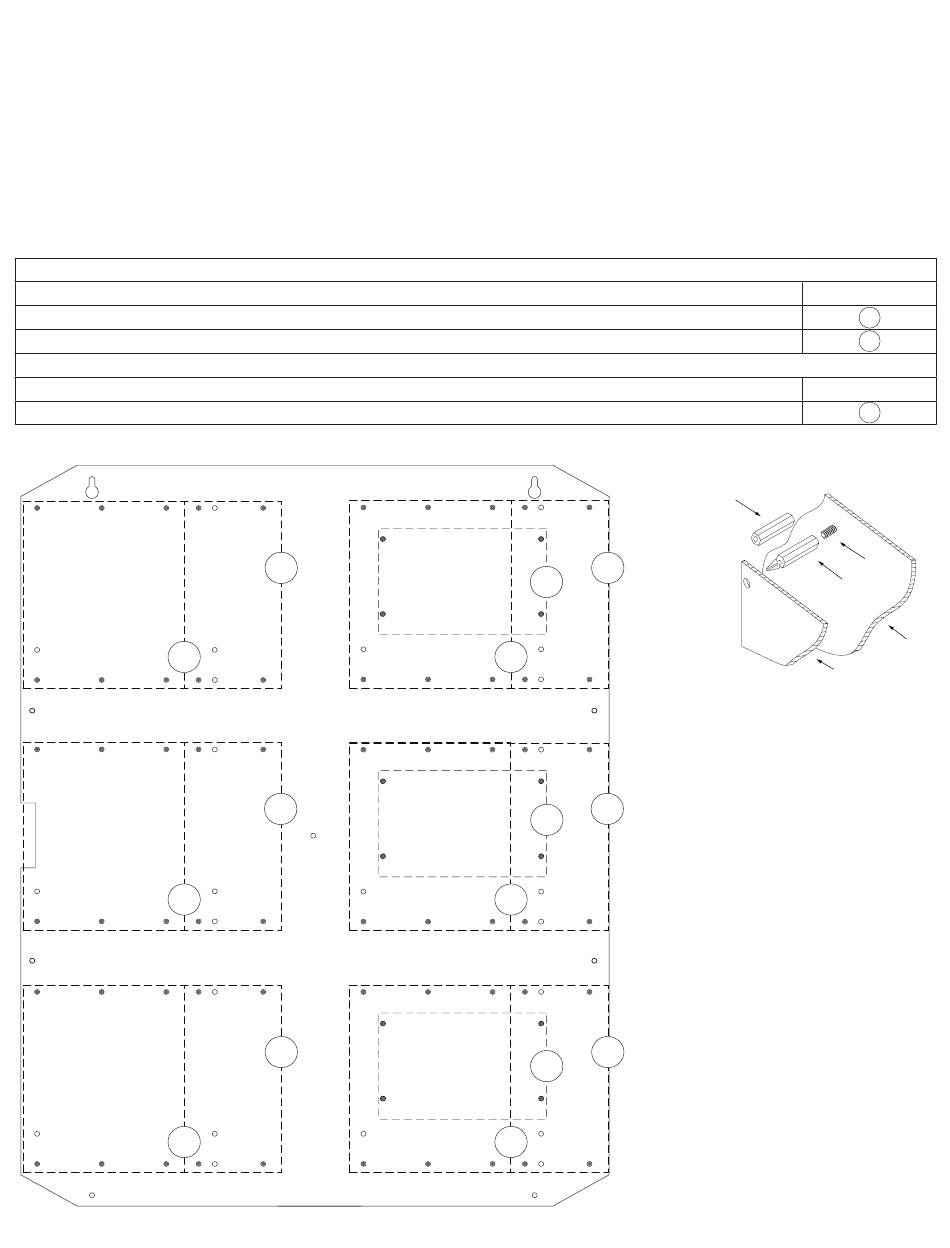

Fig. 6
B
B
B
Trove2/Mercury PTC Kits Installation Guide
Configuration of Mercury and/or Altronix Boards
A
A
A
Mercury
Altronix
A
C
B
A
C
B
A
C
B
Pem Mounting
A
B
Pem Mounting
C
Nylon
Spacer
Pem
Snap on
Spacer
Backplane
Sub-Assembly
Fig. 6a
