Video • Data • Power

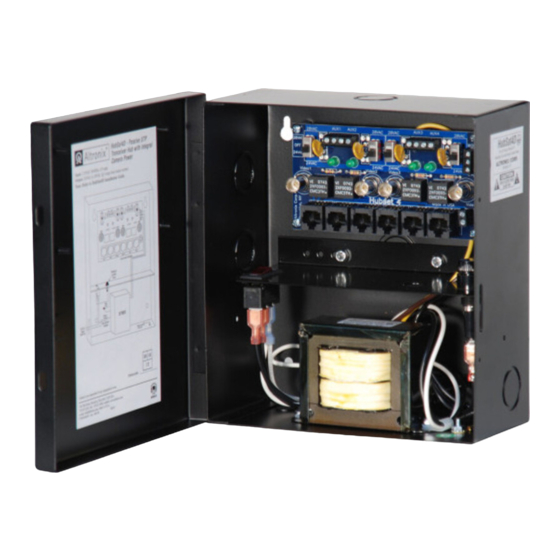

HubSat4Di Series
Passive UTP Transceiver Hub with
Integral Isolated Camera Power
Models Include:
HubSat4Di
- Four (4) Camera Channels
HubSat42Di
- HubSat4Di with four (4) HubWayAv Video Balun/Combiners for 24VAC Cameras
HubSat43Di
- HubSat4Di with four (4) HubWayDv Video Balun/Combiners for 12VDC Cameras
Installation Guide
Rev. 090209
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubSat4Di Series
Summary of Contents for Altronix HubSat4Di Series
- Page 1 Video • Data • Power HubSat4Di Series Passive UTP Transceiver Hub with Integral Isolated Camera Power Models Include: HubSat4Di - Four (4) Camera Channels HubSat42Di - HubSat4Di with four (4) HubWayAv Video Balun/Combiners for 24VAC Cameras HubSat43Di - HubSat4Di with four (4) HubWayDv Video Balun/Combiners for 12VDC Cameras Installation Guide More than just power.
-
Page 2: Table Of Contents
Table of Contents: Overview ..............pg. 3 Specifications . -
Page 3: Overview
Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv or HubWayDv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC electronically isolated PTC protected outputs with surge suppression. -
Page 4: Hubsat4Di For Use As A Remote Accessory Module With Hubway/Hubwayld/Hubwayldh Utp Transceiver Hubs
• For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e. pg. 7). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 7). The total cable distance must not exceed 750 ft. for video transmission between the HubSat4Di and each camera. -
Page 5: Alternate 24Vac Fixed Camera Hookup
• For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e, pg. 7). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 7). The total cable distance must not exceed 750 ft. for video transmission between the HubSat4Di and each camera. -
Page 6: Hubsat4Di Circuit Board
Fig. 1 - HubSat4Di Circuit Board 28VAC 28VAC 28VAC 28VAC AUX1 AUX2 AUX3 AUX4 24VAC 24VAC 24VAC 24VAC VIDEO1 VIDEO2 VIDEO3 VIDEO4 PVD1 PVD2 DATA 1-4 VIDEO 1-4 PVD3 PVD4 1a - BNC Connector: Video in from remote camera video out to DVR. 1b - Output PTCs: Protects each output. -
Page 7: Hubwayav, Hubwayav2, Hubwaydv Video Balun/Combiners
HubWayAv, HubWayAv2, HubWayDv Video Balun/Combiners: Altronix Input Voltage Model from Power Number HubWay Unit Output Voltage to Camera Camera Type HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras *Based on camera load and structured cable length. - Page 8 Fig. 4 Fig. 4a - Illuminated master power disconnect circuit breaker: • OFF position: circuit breaker tripped – Switch not illuminated. • RESET (ON) position – Switch illuminated. (ON) 28VAC 28VAC 28VAC 28VAC AUX1 AUX2 AUX3 AUX4 24VAC 24VAC 24VAC 24VAC VIDEO1 VIDEO2...
-
Page 9: Hubsat4Di As A Passive Utp Transceiver Hub With Integral Camera Power
Typical Application Drawing for HubSat4Di Passive UTP Transceiver Hub with Integral Camera Power: Fig. 5 Head End Equipment (DVR) Monitor RS485 Data Video Data Power Data CAT-5 Video HubWayAv Power CAT-5 Video Balun Combiner 24VAC PTZ HubWayDv Camera Video Balun Combiner 12VDC PTZ Video... - Page 10 Notes: - 10 - HubSat4Di Installation Guide...
- Page 11 Notes: HubSat4Di Installation Guide - 11 -...
-
Page 12: Enclosure Dimensions
(25.4mm) 5.25” (133.35mm) 1” 1” (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIHubSat4Di I20U...
