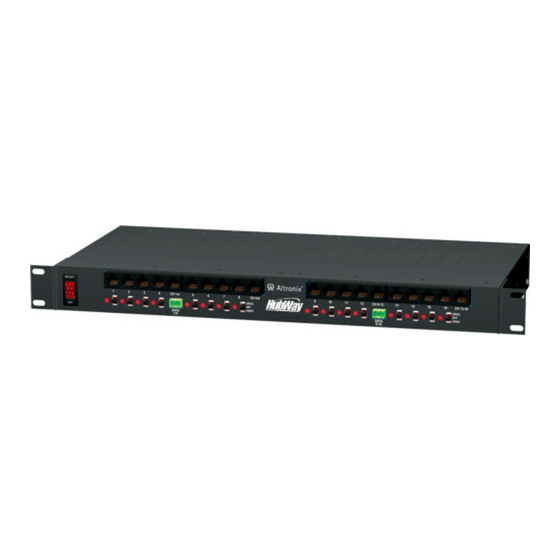

Video • Data • Power
Passive UTP Transceiver Hub
with Integral Isolated Camera Power
Installation Guide
Models Include:
HubWay8Di
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
HubWay82Di
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
- Includes eight (8) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWay83Di
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
- Includes eight (8) UL Listed Accessory
HubWayDv Video Balun/Combiners
Rev. 032108
HubWay16Di
- UL Listed sixteen (16) Channel Passive UTP
HubWay162Di
- UL Listed sixteen (16) Channel Passive UTP
- Includes sixteen (16) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWay163Di
- UL Listed sixteen (16) Channel Passive UTP
- Includes sixteen (16) UL Listed Accessory
HubWayDv Video Balun/Combiners
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubWay162Di
Summary of Contents for Altronix HubWay162Di
-
Page 1: Installation Guide
- UL Listed sixteen (16) Channel Passive UTP Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power HubWay82Di HubWay162Di - UL Listed eight (8) Channel Passive UTP - UL Listed sixteen (16) Channel Passive UTP... -
Page 2: Common Specifications
1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. -
Page 3: Installation Instructions
RJ45 jack of the Video Balun/Combiner located at camera 1. • For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e, pg. 5). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 5). - Page 4 + -- - 4 - HubWay Passive Unit...
-
Page 5: Hubwayav, Hubwayav2, Hubwaydv, And Hubwaydvi Video Balun/Combiners
HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Input Voltage Altronix from HubWay Model Number Unit Output Voltage to Camera Camera Type Power LED HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras HubWayDvi *24VAC/28VAC 12VDC electronically isolated 12VDC cameras without isolation Red *Based on camera load and structured cable length. -
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video Data Four (4) Video Video Video Video (CAT-5) signals on a Power Data Data Power single CAT-5... - Page 7 1U EIA 19” Rack Mount Chassis Dimensions (H x W x D approximate): 1.625” x 19.125” x 8.5” (41.3mm x 485.8mm x 215.9mm) REAR 1.625" 41.3mm AC POWER TOP & BOTTOM 17.625" 447.7mm 8.5" 215.9mm FRONT CH 1-4 CH 5-8 CH 9-12 CH 13-16 28VAC...
-
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWay8Di/HubWay16Di J15N MEMBER - 8 -...
