Altronix HubSat Series Installation Manual

Passive utp transceiver hub with integral camera power
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Video • Data • Power
Passive UTP Transceiver Hub
with Integral Camera Power
Installation Guide
Models Include:
HubSat8DV
- Eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power
HubSat82DV
- Eight (8) Channel Passive UTP Transceiver includes eight (8) HubWayAv Video Balun/Combiners
HubSat83DV
- Eight (8) Channel Passive UTP Transceiver includes eight (8) HubWayDv Video Balun/Combiners
Rev. 041212
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HubSat Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix HubSat Series

Summary of Contents for Altronix HubSat Series

  • Page 1 Video • Data • Power Passive UTP Transceiver Hub with Integral Camera Power Installation Guide Models Include: HubSat8DV - Eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power HubSat82DV - Eight (8) Channel Passive UTP Transceiver includes eight (8) HubWayAv Video Balun/Combiners HubSat83DV - Eight (8) Channel Passive UTP Transceiver includes eight (8) HubWayDv Video Balun/Combiners More than just power.

  • Page 2: Table Of Contents

    Table of Contents: Overview pg. 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Specifications .

  • Page 3: Overview

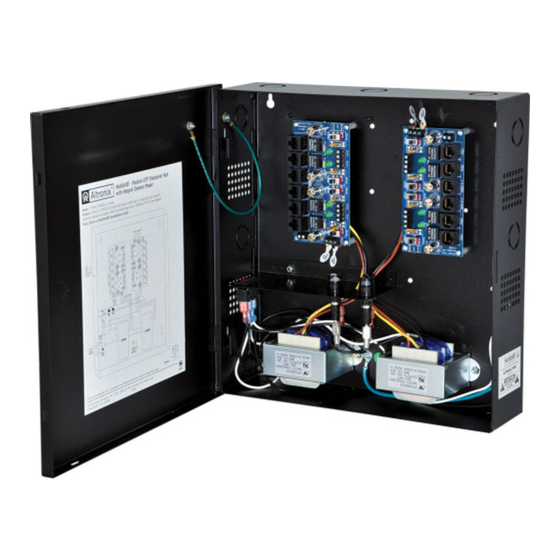

    Overview: Altronix HubSat8DV Passive UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/ RS485 data and power over a single CAT-5 or higher structured cable . Unit provides 8 camera channels in a wall mount enclosure . Video transmission range is up to 750 ft . max . per channel . Units are compatible with AC and/ or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners .

  • Page 4: Hubway/Hubwayld/Hubwayldh Utp Transceiver Hubs

    For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e, pg. 7) . • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 7) . • For non-isolated 12VDC cameras use Altronix model HubWayDvi Video Balun/Combiner (Figs.

  • Page 5: Alternate 24Vac Fixed Camera Hookup

    The total cable distance must not exceed 750 ft . for video transmission between the HubSat8DV and each camera . Repeat this step for all other camera channels [PVD2-4] on Circuit Board A and [PVD1-4] on Circuit Board B . 3 .

  • Page 6: Hubsat Circuit Board

    Fig. 1 - HubSat Circuit Board 28VAC 28VAC 28VAC 28VAC AUX1 AUX2 AUX3 AUX4 24VAC 24VAC 24VAC 24VAC VIDEO1 VIDEO2 VIDEO3 VIDEO4 PVD1 PVD2 DATA 1-4 VIDEO 1-4 PVD3 PVD4 1a - BNC Connector: 1g - Channels 1-4: Video in from remote camera video out to DVR . Single CAT-5 or higher structured cable out to 1b - Output PTCs: Protects each output .

  • Page 7: Hubwayav, Hubwayav2, Hubwaydv, And Hubwaydvi Video Balun/Combiners

    HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Altronix Input Voltage Model from Power Number HubWay Unit Output Voltage to Camera Camera Type HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras HubWayDvi *24VAC/28VAC 12VDC electronically isolated 12VDC cameras without isolation *Based on camera load and structured cable length .
  • Page 8 Fig. 3 Fig. 3a - Illuminated master power disconnect circuit breaker: • OFF position: circuit breaker tripped – Switch not illuminated . • RESET (ON) position – Switch illuminated . Input 220VAC 60Hz - 8 - HubSat8DV...

  • Page 9: Typical Application Drawings

    Typical Application Drawing HubSat8DV Passive UTP Transceiver Hub with Integral Camera Power: Fig. 4 Head End Equipment (DVR) Monitor RS485 Data Video Data Power CAT-5 Data Video HubWayAv Power CAT-5 Video Balun Combiner 24VAC PTZ HubWayDv Camera Video Balun Combiner 12VDC PTZ Video Camera...
  • Page 10 Notes: - 10 - HubSat8DV...
  • Page 11 Notes: HubSat8DV - 11 -...

  • Page 12: Enclosure Dimensions

    Altronix is not responsible for any typographical errors . 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A . MEMBER...
