Page 1: Installation Guide
Video • Data Passive UTP Transceiver Hub Installation Guide Models Include: HubWayH16 - Sixteen (16) Camera Channels More than just power. Rev. 121710... -
Page 2: Installation Instructions
Plug the RJ45 connector at one end of the structured cable into the RJ45 jack marked [Channel 1-16] of the HubWayH16 (Fig. 1c, pg. 3). Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack of the Video Balun/Combiner located at the camera (Fig. - Page 3 HubWayH Passive Hub Unit - 3 -...

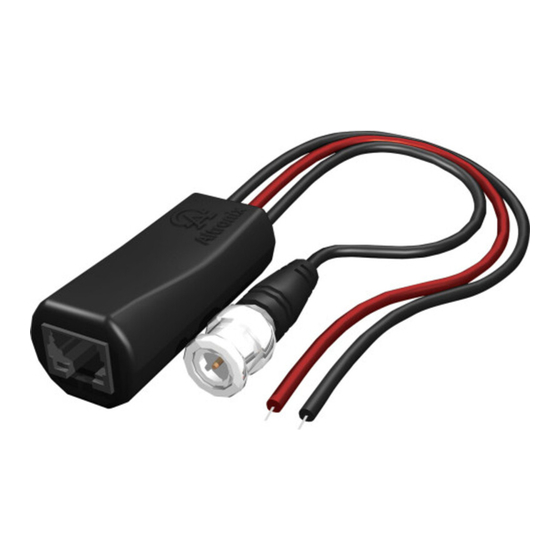

- Page 4 Cat5 back to HubWay or Data to Camera HubSat Video from Camera Power to Camera Fig. 2b Cat5 back to HubWayH16 Power to Camera Video from Camera Fig. 2c VIDEO Commercial CCTV Accessory 3C03 HubWayDv VIDEO BALUN/COMBINER Refer to the HubWay Video Balun/Combiner Installation Guide Rev.
-
Page 5: Typical Application
Typical Application: Fig. 3 External Rack Mount Head end 12VDC or 24VAC Fig. 3a Equipment (DVR) Power Supply HubWayH16 HubWayH16 Front Panel Rear Panel DATA Connections Connections DATA POWER CHANNEL + --- Video Balun Combiner CAT-5 Video/ Power 12VDC or... -
Page 6: Rack Mount Installation
1U EIA 19” Rack Mount Chassis Mechanical Drawing & Dimensions: 1.696”H x 19”W x 2.4980”D REAR Fig. 4 19.0000” DATA DATA DATA DATA DATA DATA DATA DATA 1.696” DATA DATA DATA DATA DATA DATA DATA DATA 17.1000” TOP & BOTTOM 3.0225 2.4980”... - Page 7 Notes: HubWayH Passive Hub Unit - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIHubWayH16 L20J - 8 - HubWayH Passive Hub Unit...
