fusion
sERiEs
™
fixed & tilt MOUNtiNG SOlUtiONS

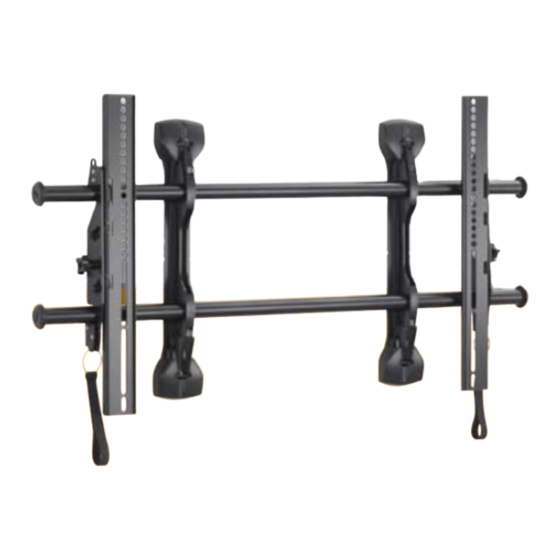

Chief's Fusion
™
Series of installer-inspired fixed and tilt flat panel TV mounts solve the top flat panel installation problems.
Innovative features like Centerless
™
lateral shift and ControlZone
™
height and roll adjustment provide perfect TV placement,
and reduce installation time. A full line of supporting accessories can be integrated in a wide variety of AV configurations.
Shipping January 2009!
www.chiefmfg.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Fusion Series
Summary of Contents for CHIEF Fusion Series
- Page 1 fusion sERiEs ™ fixed & tilt MOUNtiNG SOlUtiONS Chief’s Fusion ™ Series of installer-inspired fixed and tilt flat panel TV mounts solve the top flat panel installation problems. Innovative features like Centerless ™ lateral shift and ControlZone ™ height and roll adjustment provide perfect TV placement, and reduce installation time.
- Page 2 fixed & tilt MOUNtiNG SOlUtiONS flat PaNel MOUNtS FUSION More information on these fixed & tilt solutions, and other Chief products located on the web at www.chiefmfg.com. diScOver the 4 c’S Of MOUNtiNG: CenTerleSS lATerAl ShIFT ™ Get up to 16” of post installation lateral shift - 8” left/right of uprights. ConTrolZone heIGhT &...
- Page 3 SPeCifiCAtiONS TV Size Model Range Depth from Wall fUSiON Series fixed & tilt Mounts with controlZone 26 - 47” 1.96” (50 mm) 26 - 47” 1.99” (51 mm) 37 - 63” 1.96” (50 mm) 37 - 63” 1.99” (51 mm) 55 - 75”...
- Page 4 fixed & tilt MOUNtiNG SOlUtiONS flat PaNel acceSSOrieS CUStOMiZABle fUSiON ACCeSSORY SYSteM A full line of supporting accessories can be integrated with Fusion Fixed & Tilt wall mounts, extending the same adjustment benefits to the entire configuration. mix and match accessories with any Fusion mount for the perfect installation in every application.
