Summary of Contents for CHIEF FHP110

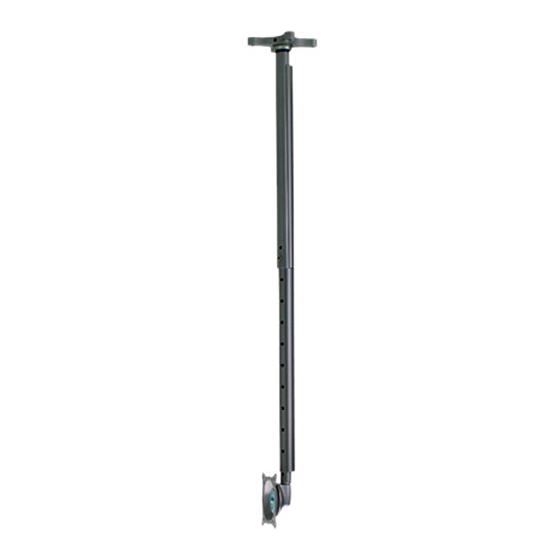

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Ceiling Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FHP110, FHPV...
-
Page 2: Save These Instructions
It is the installer’s responsibility to make sure the combined weight of all components located between the FHP110 or FHPV up to (and including) the display does not exceed 40 lbs (18.1 kg). - Page 3 Installation Instructions FHP110, FHPV LEGEND Tighten Fastener Hex-Head Wrench Apretar elemento de fijación Llave de cabeza hexagonal Befestigungsteil festziehen Sechskantschlüssel Apertar fixador Chave de cabeça sextavada Serrare il fissaggio Chiave esagonale Bevestiging vastdraaien Zeskantsleutel Serrez les fixations Clé à tête hexagonale...
-
Page 4: Tools Required For Installation
FHP110, FHPV Installation Instructions TOOLS REQUIRED FOR INSTALLATION Hardware required - not included - 3/8" x 3" (minimum length) Grade 2 lag bolts (Qty. 4) - 3/8" Grade 2 washers (Qty. 4) 3/16" (included) 5/32” (included) PARTS B (1) 5/16-18 x 1/4”... - Page 5 NOTE: If using only two bolt holes for mounting, two opposing Installing the Display holes must be used. The FHP110 or FHPV may be used with displays having a VESA flush or recessed mounting pattern. 1 1/2" NPS 101.600 VESA Compliant Flush Mounting 4.00...
- Page 6 FHP110, FHPV Installation Instructions Install two M4 x 12mm Phillips pan head screws (L) into Install four .50 x .194 x 3/8" nylon spacers (P) or four upper mounting holes in display back leaving 3/16” of screw .50 x .194 x 3/4” Nylon spacers (Q) as necessary over the protruding out of display.
-
Page 7: Cable Management
Installation Instructions FHP110, FHPV Attaching Assembly Columns Adjustments CAUTION: WATCH FOR PINCH POINTS! Do not place CAUTION: Watch for pinch points! Do not place fingers fingers between movable parts. between movable parts. Slide inner column with attached display up from below into To adjust display Roll, Pitch, and YAW tension: installed outer column. - Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 1 on 12/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
