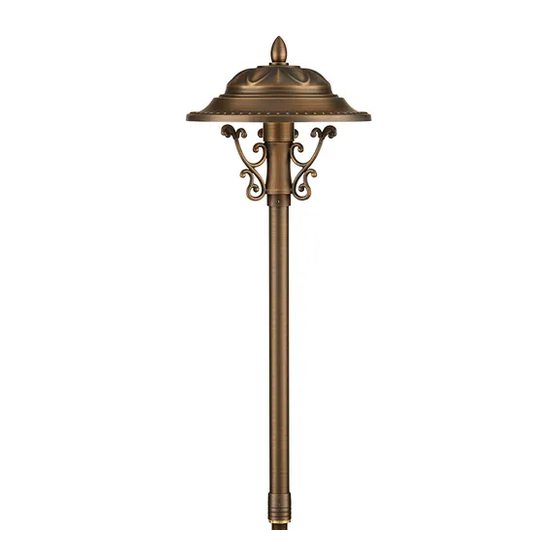

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® KinglyPro Path Light (Lamp - Ready) ® APL-3020-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE Package Contents KinglyPro Path Light (Lamp Ready) ® A. (1) Fixture Body C. (1) Inner Shade APL-3020-B-BZ B. (1) Fixture Hood D. (1) Stake Important Safety Instructions: Read Before Installation Parts Required This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). - Page 3 INSTALLATION & MAINTENANCE GUIDE Install Lamp KinglyPro Path Light (Lamp Ready) ® Bulb Insert the bulb with the correct APL-3020-B-BZ wattage and type marked on the Socket fixture label. Install Stake CAUTION: Do not exceed maximum wattage marked on luminaire label. Board Determine the desired location for mounting the fixture.
- Page 4 INSTALLATION & MAINTENANCE GUIDE KinglyPro Path Light (Lamp Ready) ® APL-3020-B-BZ Wire Connection Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main low voltage supply cable leads.
- Page 5 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m - 8 -...
