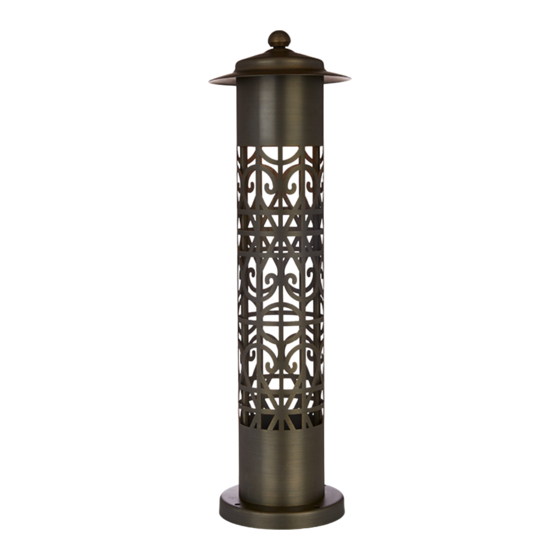

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® AxialPro Bollard ® APL-3025-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE AxialPro Bollard ® APL-3025-4-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body C. (1) Hat B. (1) Coupler D. (1) Finial Product Dimensions 6.45” 22.4” 5.9” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE AxialPro Bollard ® APL-3025-4-B-BZ Install Fixture Hat Screw the coupler onto the top Finial center of the fixture body and hand tighten until snug. Secure the fixture hat onto the Fixture Hat coupler with the finial and hand tighten until snug.
- Page 5 INSTALLATION & MAINTENANCE GUIDE AxialPro Bollard ® APL-3025-4-B-BZ Install Fixture Body to Stake Pass the fixture wire through the center hole of the stake. Thread the fixture body onto the stake and hand tighten until snug. Fixture Body Fixture Wire Ground Stake Soil...
- Page 6 INSTALLATION & MAINTENANCE GUIDE AxialPro Bollard ® APL-3025-4-B-BZ Wire Connections Supply Wire from Fixture Body Pigtail Wire Connectors Main Supply Cable Strip both leads from the fixture body. Using two wire connectors (sold separately) connect the leads from the fixture body to the main supply cable leads.
- Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-APL-3025-4-B-BZ-ver1.pdf...
