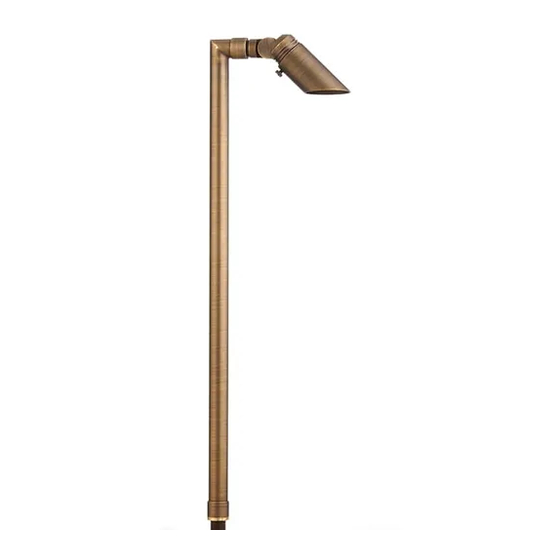

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® PinnaclePro Mini Path Light ® APL-3017-4-X-XX Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE Package Contents PinnaclePro Mini Path Light ® A. (1) Stem C. (1) Stake APL-3017-4-X-XX B. (1) Fixture Body Important Safety Instructions: Read Before Installation Parts Required (sold separately) This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). - Page 3 INSTALLATION & MAINTENANCE GUIDE Install Shield and Glare Guard PinnaclePro Mini Path Light ® Place the shield over the bulb and APL-3017-4-X-XX Fixture Body thread onto the fixture. Attach the glare guard back onto the shield and Install Fixture Body to Stem Shield secure with the set screw.
- Page 4 INSTALLATION & MAINTENANCE GUIDE Adjust Angle of Fixture Body PinnaclePro Mini Path Light ® Using an Allen Wrench, loosen the APL-3017-4-X-XX Allen Wrench adjustment screws and modify the fixture body to the desired angle. Then tighten the adjustment screws. Install Lens Clear away an area in the ground at the wireway slot on top of the stake.
- Page 5 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-APL-3017-4-X-XX-ver1...
