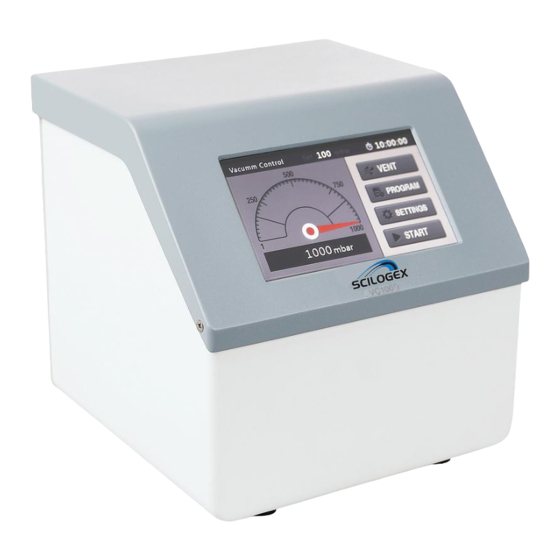

- Page 1 SCI100VC Vacuum controller Please read the safety instructions in this manual carefully before using this product and ensure to operate this product as per the operating instructions only. Ver.20181205...
- Page 2 Disclaimer • This manual had been prepared with the attitude of being responsible for the users but cannot guarantee that the contents of the manual are fully correct. • If any occasional or subsequent loss is caused by the use of the manual, the company will not be liable in any way.
-
Page 3: Table Of Contents
Table of Contents SAFETY PRECAUTIONS..................1 PRODUCT OVERVIEW ..................1 2.1 S ......................2 COPE OF APPLICATION 2.2 T ...................... 2 ECHNICAL PARAMETERS 2.3 C ........................3 OMPONENTS OPERATING INSTRUCTIONS ................4 3.1 O ....................4 PACKAGE INSPECTION 3.2 O ........................ -
Page 5: Safety Precautions
1. Safety Precautions Caution! • Please carefully read the manual before operating the product, and observe the specifications on safe operation. • Ensure that only trained staff operates this product. Ground protection for safety! • Ensure that the power socket has been properly grounded before operating the product •... -
Page 6: Scope Of Application
2.1 Scope of application • The product is intended to control the vacuum level of the vacuum system with the gas as medium in the environments like school, laboratory and factory. An environment where the product works should meet the following requirements. •... -
Page 7: Components
Steam temperature 5℃-40℃ External dimension 189mm×207mm×193mm WxDxH Weight 4.0kg Input power supply AC110—240V, 50Hz/60Hz Working temperature 10℃-40℃, ≤80%RH Input power 600W Maximum output power 500W (220V), 300W(110V) 2.3 Components Three-in-one switch Touch screen Communication interface Pump interface Air vent Power output Load interface socket... -
Page 8: Operating Instructions
Air vent Connects with air or inertia gas if necessary. Load interface Connects the load, such as revolving evaporator. Power output Provides power supply to vacuum pump. socket Table 2 3. Operating instructions 3.1 Open-package inspection Open-package inspection aims to confirm the completeness of associated parts. The packing list is given below. -
Page 9: Operation
3.2 Operation 3.2.1 Instrument preparation • The instrument should be place on a stable surface and well ventilated without any flammables or explosives. • Ensure that the label indicated the correct voltage before connecting the device to power supply. • Ensure that the power socket is grounded properly. - Page 10 icon changed to , gently touch it again to stop the control program. Table 4 Note: ‘PROGRAM’ and ‘SETTINGS’ buttons cannot be operated if the control program starts.
- Page 11 3.2.3. Instrument configuration Gently touch the "SETTINGS" button to pop up the password soft keyboard, enter the password (the default initial password is 6666), then press “enter” key, confirm the password is correct and then pop up the setting interface, as shown in the figure below. Fig.
- Page 12 3.2.4. Operation mode selection and configuration Click the “Program” button to pop up the program selection interface as shown in the following figure. Fig. 3.2.3 Click “Vacuum control” in the “Function” section to choose the single-point control operation mode, click “Program” to select the program operation mode.
- Page 13 Name Function Introduction Set the vacuum value within a range of 1 - local atmospheric Set vacuum(mbar) pressure (P0) Hysteresis value affects the pressure fluctuation range and the Hysteresis(mbar) ON/OFF frequency of vacuum pump. Setting range 1-300mbar Time(min) Time can be set within a range of 0-5999min Table 6 After setting the parameters, click “OK”...
- Page 14 (1) Program selection Name Function introduction Open Select the program number Hysteresis value affects the pressure fluctuation range Hysteresis(mbar) and the ON frequency of vacuum pump Setting range 1-300mbar Table 7 After setting the parameters, click “OK” key to enter the program operation interface as shown in the following figure.
- Page 15 (2) Program editing Click the “Edit” button in the “program selection interface” to pop up the program editing interface as shown in the following figure. Program editing area Program selection button Fig. 3.2.7 Name Function introduction Sequence No. of program execution Time(min) Timing time, set within a range of 0-5999min Set the vacuum value within a range of 1 - local...
-
Page 16: Maintenance
will be skipped to the next control program. 3.2.5. Ventilation Gently touch the “VENT” button to vent air and lift it to stop venting. 4. Maintenance Proper maintenance and operation of the instrument in good working state can extend its service life. Keep the instrument dry and clean in routine operations. -
Page 17: Failure Diagnosis
Check whether the hysteresis Increase the hysteresis frequently. value is too small. value. 6. Product certification SCILOGEX certifies that the construction of this product conforms in accordance to China national and industry standards and ISO9001 standards, and other international standards organizations. -
Page 18: Warranty Policy
• This instrument is warranted to be free from defects in material and workmanship and it must be operated in accordance with our operating guidelines. • Although great care is used when packaging items for shipment, SCILOGEX cannot accept liability for transportation of goods from SCILOGEX and transit damage is not covered by warranty For claims under the warranty please contact your local supplier.
