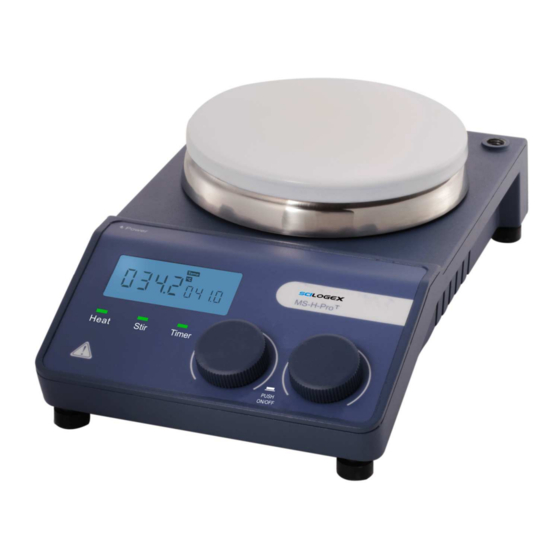

MS-H-Pro-T Magnetic Hotplate-Stirrer with Timer
User Manual
SCI340-ProT
Magnetic Hotplate-Stirrer with Timer
Please read the User Manual carefully before use, and follow all operating
and safety instructions!
Technical specifications and outline are subject to change without prior
notice.
www.scilogex.com
12300258
Advertisement
Table of Contents
Related Manuals for Scilogex SCI340-ProT
Summary of Contents for Scilogex SCI340-ProT
- Page 1 MS-H-Pro-T Magnetic Hotplate-Stirrer with Timer User Manual SCI340-ProT Magnetic Hotplate-Stirrer with Timer Please read the User Manual carefully before use, and follow all operating and safety instructions! Technical specifications and outline are subject to change without prior notice. www.scilogex.com 12300258...
-
Page 2: Table Of Contents
12 Associated Standards and Regulations ....11 13 Specifications ............. 12 Contents 14 Ordering Information .......... 13 Preface ................. 1 Service ................. 1 Warranty ..............1 Safety Instructions ..........2 Proper Use ............3 Inspection ............. 3 3.1 Receiving Inspection ........... 3 3.2 Listing of Items ........... -
Page 3: Preface
It shall not apply to any product or parts which have been damaged SCILOGEX, LLC on account of improper installation, improper connections, 1275 Cromwell Ave. misuse, accident or abnormal conditions of operation. -
Page 4: Safety Instructions
substances or around water. 1 Safety Instructions • Gradually increase the speed, reduce the speed if: Warning! - Stirring bar breaks away due to high speed • Read the operating instructions carefully - The instrument is not running smoothly, or the container before use. -
Page 5: Proper Use
• section. Accessories must be securely attached to the device Observe the minimum distances between multiple and must be removed when not in use. Always disconnect units, and distances to the rear wall and above the the power before fitting accessories. assembly (min. -
Page 6: Listing Of Items
Note: 4. Control If there is any apparent damage to the unit, do not 4.1 Control elements attempt to operate. 3.2 Listing of Items The package includes the following items: Items Main unit Power cable Stirrer bar User Manual Table 1 Figure 2... - Page 7 LCD displays the real-time display working state and all settings. When the heating function is Heating switched ON, the LED Heat is knob Heat lit. Figure 3 When the stirring function is Stirring switched ON, the LED Stir is knob Stir lit.
-
Page 8: Display
function is switched ON. 4.2 Display Probe Display when using external probe. Remote Display when using remote control. Rated value/Real Display values in when heating or value stirring or timer function is switched Table 3 Note： If both heating and stirring functions have been started at the same time, heat display always has higher priority. -
Page 9: Function: Heating
stirring bar. controlled from a separate, adjustable safety circuit. The • two temperature sensors (PT1000) internal for temperature Place vessel on the work plate. • control are built into the hotplate. The single external Set the target stirring speed and begin. •... -
Page 10: Working With The Pt1000 External Temperature Sensor
- The sample container and the container. Comparing with the temperature control of the hotplate, the In order to ensure the accuracy of the liquid temperature external temperature sensor can control the medium’s inside the container, please use the PT1000 external temperature more precisely. -
Page 11: Stirring
turn off the unit, pull out the plug. When the plug is pulled 9 Remote Control out, the residual heat warning function will not function. 7 Stirring The “stirring” function is switched on or off via rotating stirring knob. The speed is set on the knob (100 to 1500 rpm in steps of 10 rpm). -
Page 12: Faults
• Transmission method: Asynchronous signal LCD still work and “Hot” flash). transmission in start-stop-operation. these faults resolved, please contact • manufacturer/supplier. Mode of transmission: Fully Duplex. 1 start bit; 7 character bits; 1 parity bit [straight (even)); 1 stop bit 11 Maintenance and Cleaning •... -
Page 13: Associated Standards And Regulations
Isopropyl alcohol Associated EU guidelines: Foodstuffs Water containing surfactant EMC-guidelines: 89/336/EWG Instrument guidelines: 73/023/EWG Fuels Water containing surfactant • Before using other method cleaning Note: decontamination, the user must ascertain with the • Electronic equipment cannot cleaned with a manufacturer that this method will not harm the detergent cleaner. -
Page 14: Specifications
Room 13 Specifications Temperature range [°C] temperature - 340, Digital model Items Step:1 200-240 / Temperature display [°C] Voltage [VAC] 100-120 Temperature display accuracy [°C] ±0.1 Frequency [Hz] 50 / 60 The safety temperature of the hotplate Power [W] [℃] Stirring point position quantity Temperature sensor in medium PT1000... -
Page 15: Ordering Information
Cat No. Descriptions Accessories PT1000-A Temperature sensor for digital hotplate model, used for MS-H-Pro 18900016 MS-H-Pro , MS7-H550-Pro & MS7-H550-S, length of 230mm PT1000-B Glass coated temperature sensor for digital hotplate length of 18900136 230mm 18900017 Support clamp of PT1000 MS 135.1 Carrier plate, used with MS 18900001 135.2-5... - Page 16 Cat No. Descriptions Cat No. Descriptions reaction vessel, Ø17.75mm, 26mm 18900014 Stirrer bar（80mm x 13mm）, 1pc/pk depth 18900015 Stirrer bar remover，1pc/pk MS135.7 Golden quarter pie, 4 holes， F100 protective cover for non-hotplate 18900018 18900049 16ml reaction vessel, Ø21.6mm, 31.7mm model depth 18900019 F101 protective cover for hotplate model...
- Page 17 SCILOGEX, LLC 1275 Cromwell Ave. Suite C6 Rocky Hill, CT 06067 USA Tel: +1(860) 436-9221 Fax: +1(860) 436-9745 info@scilogex.com www.scilogex.com...
