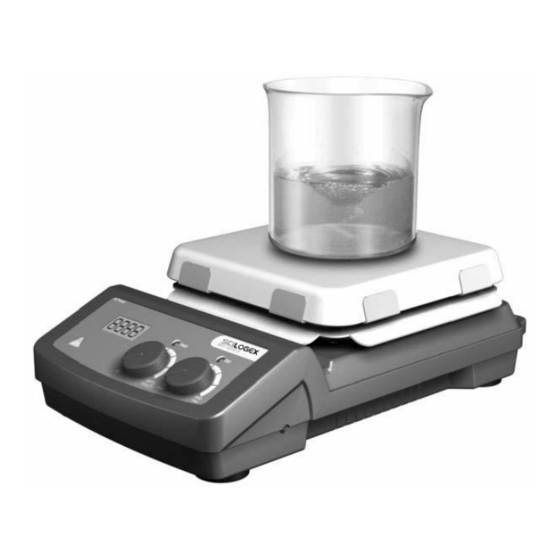

- Page 1 SCI550-S/SCI7-S Hotplate/Stirrers User Manual Classic 7”Square Plate Stirrer SCI7-S SCI550-S LED Digital 7” Square Hotplate Stirrer Please read the User Manual carefully before use, and follow all operating and safety instructions! www.scilogex.com 12300085...
-
Page 2: Table Of Contents
Contents Preface ................. 1 Service ................. 1 Warranty ................1 Safety Instructions ............2 Proper use ..............3 Inspection ..............4 3.1 Receiving Inspection ..........4 3.2 Listing of Items ............. 4 Control ................. 4 4.1 Control elements ............ 4 4.2 Display (Hotplate Model) ........ -
Page 3: Preface
24 months from the date of invoice. The SCILOGEX, LLC warranty is extended only to the original purchaser. It shall 1275 Cromwell Ave not apply to any product or parts which have been damaged... -
Page 4: Safety Instructions
LED Digital 7” Square Hotplate Stirrer substances or under water. 1. Safety Instructions • Gradually increase the speed, reduce the speed if: - Stirring bar breaks away due to high speed Warning! - The instrument is not running smoothly, or container •... -
Page 5: Proper Use
LED Digital 7” Square Hotplate Stirrer • The instrument can only be disconnected from the main power supply by pulling out the main or the connector plug. • The voltage stated on the label must correspond to the >100mm main power supply. •... -
Page 6: Inspection
LED Digital 7” Square Hotplate Stirrer 3. Inspection 4. Control 3.1 Receiving Inspection 4.1 Control elements Unpack the equipment carefully and check for any damages which may have arisen during transport. Please contact manufacturer/supplier for technical support. Note: LED heat If there is any apparent damage to the system, (Hotplate model) please do not plug it into the power line. - Page 7 LED Digital 7” Square Hotplate Stirrer Connection PT1000 Socket ( Hotplate model ) Figure 5 Items Descriptions Stirring Knob Speed control Knob The stirring function is switched LED Stir Stir ON or OFF by rotating the knob. Figure 3 Temperature control The heating function is switched knob...
-
Page 8: Display (Hotplate Model)
LED Digital 7” Square Hotplate Stirrer When instrument 5. Trial run LED Stir switched ON, the LED Stir is • Make sure the required operating voltage and power lit. supply voltage match. Switch Power Switch • Ensure the socket must be properly grounded. instrument. -
Page 9: Working With External Temperature Sensor (Hotplate Model)
LED Digital 7” Square Hotplate Stirrer temperature setting value and shifts to real value in 5 Warning ! seconds. Safe circuit controls hotplate temperature. Forbid to transfer the vessel when the instrument Comparing with the temperature control of the hotplate, the working. -
Page 10: Faults
LED Digital 7” Square Hotplate Stirrer the instrument. 7. Faults • Before using other method cleaning • Instruments can not be power ON. decontamination, the user must ascertain with the - Check whether the power cable is plugged in. manufacturer that this method will not harm the - Check whether the fuse is broken or loose. -
Page 11: Associated Standards And Regulations
LED Digital 7” Square Hotplate Stirrer 9. Associated standards 10. Technical data regulations Voltage [VAC] 100-120/200-240 Frequency [Hz] 50/60 Construction in accordance with the following safety standards: 1030 Power [W] EN 61010-1 UL 3101-1 Stirring point position quantity CAN/CSA C22.2(1010-1) Max. -
Page 12: Ordering Information
813221039999 Hotplate Magnetic Stirrer, glass ceramics Protection class acc. to DIN 60529 IP21 hotplate, UK plug, 220V/50Hz/60Hz *Hotplate model SCI7-S Classic 7’’ Square Plate Table 3 813211009999 Magnetic Stirrer, glass ceramics plate, USA plug, 110V/50Hz/60Hz SCI7-S Classic 7’’ Square Plate... - Page 13 Descriptions Cat No. Descriptions Euro plug, 220V/50Hz/60Hz reaction vessel, Ø17.75mm, 26mm depth SCI7-S Classic 7’’ Square Plate 813211039999 Magnetic Stirrer, glass ceramics plate, MS135.7 Golden quarter pie, 4 holes， UK plug, 220V/50Hz/60Hz 18900049 16ml reaction vessel, Ø21.6mm, 31.7mm depth Accessories...
