User Manual

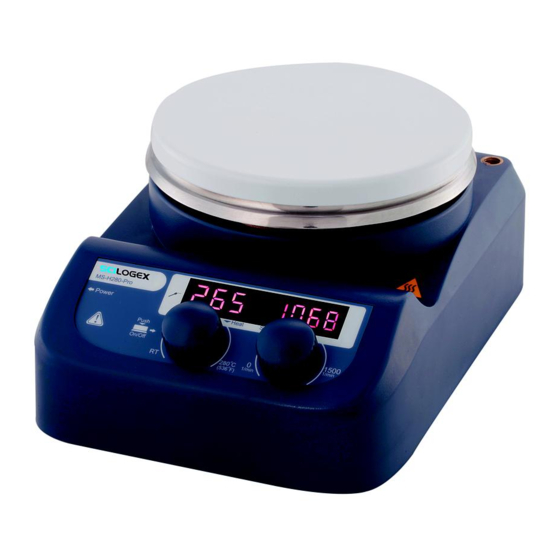

SCI280-Pro
LED Digital Hotplate Magnetic Stirrer
SCI-PA
LED Digital Magnetic Stirrer
SCI-PB
Classic Magnetic Stirrer
Please read the User Manual carefully before use, and follow all
operating and safety instructions!
Technical specifications and outline are subject to change without prior
notice.
www.scilogex.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Scilogex SCI280-Pro
Summary of Contents for Scilogex SCI280-Pro

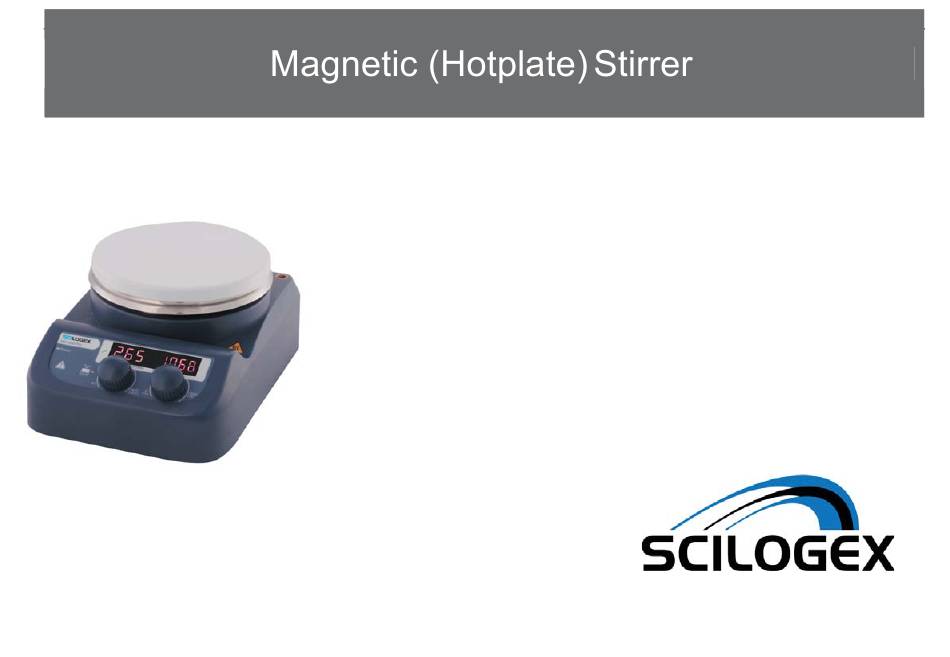

- Page 1 User Manual SCI280-Pro LED Digital Hotplate Magnetic Stirrer SCI-PA LED Digital Magnetic Stirrer SCI-PB Classic Magnetic Stirrer Please read the User Manual carefully before use, and follow all operating and safety instructions! Technical specifications and outline are subject to change without prior notice.
-
Page 2: Table Of Contents
Contents Preface ................. 1 Service ................. 1 Warranty ................1 Safety Instructions ............2 Proper Use ..............3 Inspection ..............4 3.1 Receiving Inspection ..........4 3.2 Listing of Items ............. 4 Control ................. 4 4.1 Control elements ............ 4 4.2 Display.............. -
Page 3: Preface
Please provide the customer care representative with the Preface following information Welcome to the “ (Hotplate) Magnetic Stirrer”. Users • Serial number on the rear panel should read this Manual carefully, follow the instructions • Certification and procedures, and be aware of all the cautions when using •... -
Page 4: Safety Instructions
substances or under water. 1. Safety Instructions • Gradually increase the speed, reduce the speed if: - Stirring bar breaks away due to high speed Warning! • - The instrument is not running smoothly, or container Read the operating instructions carefully moves on the base plate before use. -
Page 5: Proper Use
• The instrument can only be disconnected from the main power supply by pulling out the main or the connector plug. • The voltage stated on the label must correspond to the >100mm main power supply. • Ensure that the main power supply cable does not touch the hotplate. -
Page 6: Inspection
3. Inspection 4. Control 3.1 Receiving Inspection 4.1 Control elements Unpack the equipment carefully and check for any damages which may have arisen during transport. Please contact Probe manufacturer/supplier for technical support. ( Hotplate model ) Note: If there is any apparent damage to the system, please do not plug it into the power line. - Page 7 LED Display Speed Control Knob Speed Control Knob Figure 4 Classic model Figure 3 Digital model Figure 5...
- Page 8 Items Descriptions Set the temperature parameters. The function “heating” is switched ON or Temperature Control Knob Heat OFF via push ON/OFF knob. Set the rotary speed. The function “Stirring” is switched ON or OFF via Speed Control Knob Stir push ON/OFF knob. Digital hotplate model LED Display...
-
Page 9: Display
4.2 Display Speed display area Temperature display area Speed display area Figure 7 Digital model Figure 6 Digital hotplate model Characters Descriptions Speed display When stirring function was switched Characters Descriptions area ON, LED displays the speed setting Temperature When heating function was switched ON, value and flashes. -
Page 10: Trial Run
5. Trial Run 6. Function: Heating Digital hotplate model ) • Make sure the required operating voltage and power supply voltage match. The device is controlled by digital temperature control • Ensure the socket must be properly grounded. technology, which has two separate safe circuits. The •... -
Page 11: Working With External Temperature Sensor
Hotplate center and outer edge. control the medium’s temperature more precise. The The sample in the vessel and hotplate surface. heating function will be stopped automatically under In order to ensure the accuracy of the temperature inside the abnormal conditions. Please operate follow the instructions container, please use the external temperature sensor below: •... -
Page 12: Stirring
run. 8. Faults 7. Stirring • Instruments can’t be power ON - Check whether the power line is unplugged The function “stirring” of LED digital model is switched - Check whether the fuse is broken or loose on or off via pushing on/off speed control knob. The •... -
Page 13: Maintenance And Cleaning
• 9. Maintenance and Cleaning If you require maintenance service, must be cleaned the instrument in advance to avoid • Proper maintenance can keep instruments working pollution of hazardous substances, and to properly and lengthen its lifetime. send back into original packing. •... -
Page 14: Specifications
Changes or modifications not expressly approved by the 11.Specifications party responsible for compliance could void the user's authority to operate the equipment. Specifications NOTE: This equipment has been tested and found to Items Classic Digital model comply with the limits for a Class A digital device, model pursuant to Part 15 of the FCC Rules. - Page 15 Specifications Specifications Items Classic Items Classic Digital model Digital model model model Analog Rotary speed display *Residual heat warning Plate material *Ceramic coated/Plastic *220×160×95 Dimensions (mm) 220×160×75 Dimensions of φ135 φ135 workplate (mm) Weight [kg] *1.4/0.7 *Heating power [W] Permitted ambient 5 40 RT-280, temperature [°C]...
-
Page 16: Ordering Information
Digital Hotplate Magnetic Stirrer, stainless steel with corrosion-resistant coated hotplate, USA plug, 100-120V, 50Hz/60Hz 12.Ordering Information SCI280-Pro, BlueSpin Double LED Cat No. Descriptions Digital Hotplate Magnetic Stirrer, SCI-280Pro, 861131127777 BlueSpin stainless steel with corrosion-resistant Double LED coated hotplate, Cn plug, 200-240V,... - Page 17 Magnetic Stirrer, Cn plug, 100-240V, digital hotplate model, length 230mm 50Hz/60Hz PT1000-B Temperature sensor with 18900136 SCI-PA, BlueSpin glass coated, 230mm Digital 861521237777 Magnetic Stirrer, Euro plug, 100-240V, 18900148 Support clamp of PT1000 50Hz/60Hz Reaction block for 50ml round bottom 18900080 SCI-PA, BlueSpin...
- Page 18 SCILOGEX, LLC. 1275 Cromwell Avenue, Suite C6, Rocky Hill, CT 06067 USA. Office: +1-860-436-9221 Sales/Service contact: info@scilogex.com www.scilogex.com...
