Finger Guards
Installation Guide

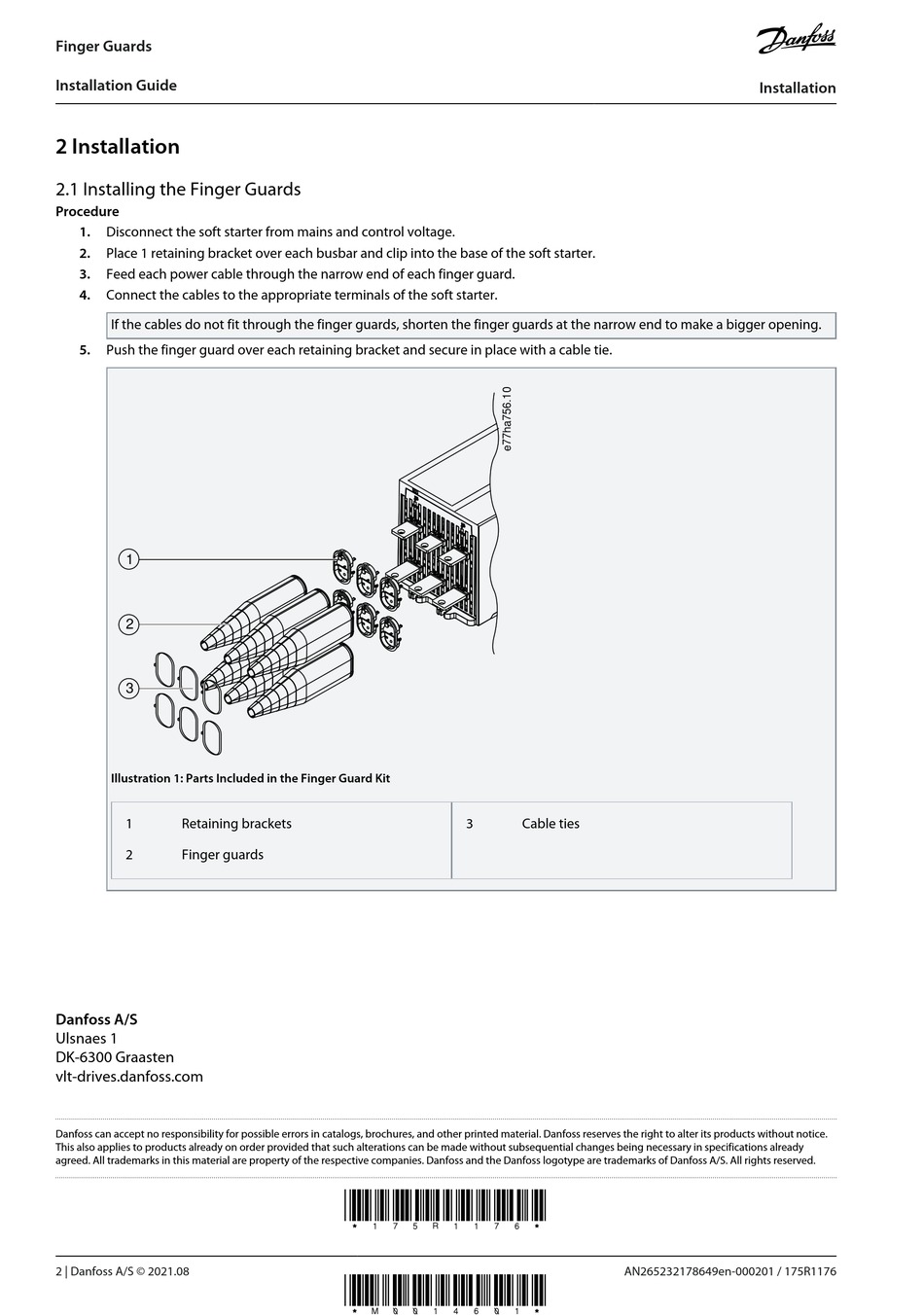

2 Installation

2.1 Installing the Finger Guards

Procedure
1. Disconnect the soft starter from mains and control voltage.
2. Place 1 retaining bracket over each busbar and clip into the base of the soft starter.
3. Feed each power cable through the narrow end of each finger guard.
4. Connect the cables to the appropriate terminals of the soft starter.
If the cables do not fit through the finger guards, shorten the finger guards at the narrow end to make a bigger opening.
5.
Push the finger guard over each retaining bracket and secure in place with a cable tie.
1
2
3
Illustration 1: Parts Included in the Finger Guard Kit
1 Retaining brackets
2 Finger guards
Danfoss A/S
Ulsnaes 1
DK-6300 Graasten
vlt-drives.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice.
This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already
agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2 | Danfoss A/S © 2021.08
3
*175R1176*
*M0014601*
Cable ties
AN265232178649en-000201 / 175R1176
Installation
