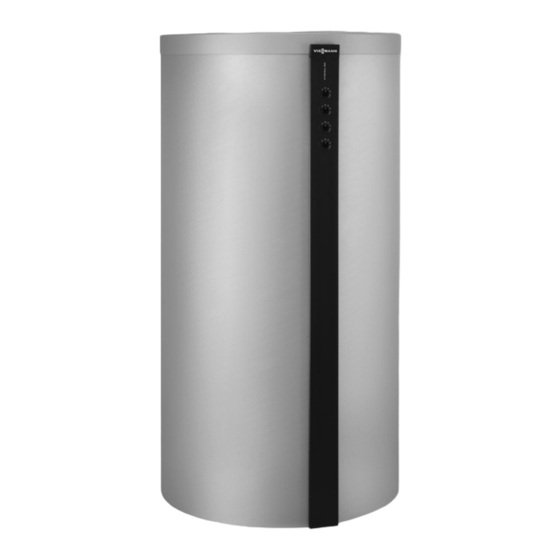

Viessmann Vitocell 100-E Installation And Service Instructions Manual
Hide thumbs
Also See for Vitocell 100-E:
Related Manuals for Viessmann Vitocell 100-E
Summary of Contents for Viessmann Vitocell 100-E

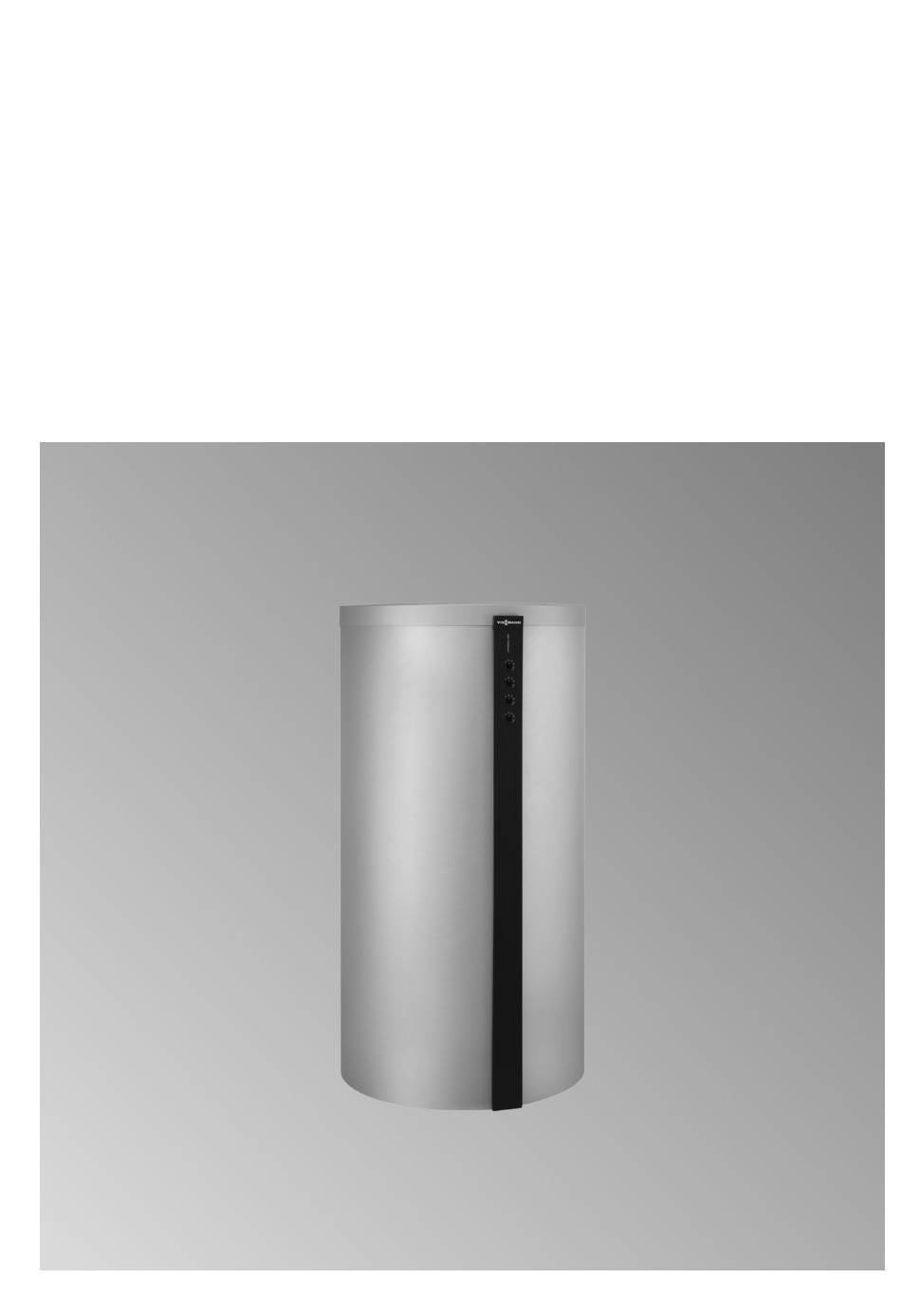

- Page 1 VIESMANN Installation and service instructions for contractors Vitocell 100-E Type SVPA Heating water buffer cylinder 1500, 2000 l For applicability, see the last page VITOCELL 100-E Please keep safe. 5672 141 GB 11/2014...
- Page 2 Note For replacements, use only original spare parts Details identified by the word "Note" contain additional supplied or approved by Viessmann. information. Target group These instructions are exclusively intended for author- ised contractors.
-
Page 3: Table Of Contents
Index Index Information Symbols ....................Intended use ..................Product information ................Preparing for installation ........................Installation sequence Installation ....................Fitting the lower thermal insulation mat and aligning the cylinder ..■ Fitting the thermometer sensor (if supplied) ........■ Fitting the 2-part thermal insulation jacket .......... ■... -
Page 4: Information Symbols
Information Symbols Symbol Meaning Reference to other document containing further information Additional information, not safety relevant Step: The numbering corresponds to the se- quence of work. Intended use The appliance is only intended to be installed and Any usage beyond this must be approved by the man- operated in sealed unvented systems that comply with ufacturer for the individual case. -
Page 5: Preparing For Installation
Preparing for installation Preparing for installation Connections Fig. 2 Back Fig. 1 Front Heating water flow 1 (HF 1) Thermometer sensor retainer Heating water flow 2 (HF 2)/heating water return Thermometer (TH) (HR 1) up to 4 pce (accessories) Heating water return (HR 2) Heating water return (HR 3) TR 1 TR 2... -
Page 6: Installation Sequence Installation
Installation sequence Installation Please note The thermal insulation must not come into con- tact with naked flames. Exercise caution when welding and brazing. Fitting the lower thermal insulation mat and aligning the cylinder Fig.3 Type plate 3 adjustable feet Insert the adjustable feet into the legs as far as they Note will go, then adjust them to level the cylinder. -
Page 7: Fitting The Thermometer Sensor (If Supplied)
Installation sequence Installation (cont.) Fitting the thermometer sensor (if supplied) Fig.4 1. Guide the thermometer sensor through the cover 4. Position the sensor on the outside of the sensor strip and insert the thermometer. retainer contact spring so that it is flush with the front of the spring. -
Page 8: Fitting The 2-Part Thermal Insulation Jacket
Installation sequence Installation (cont.) Fitting the 2-part thermal insulation jacket Fig.5 Note 2. At the front of the cylinder: Attach clip fasteners to Ensure that no fleece remnants enter the cylinder the edges of the right and left sections of the insula- through the cylinder connections. -
Page 9: Fitting The Cover Strips (2-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover strips (2-part thermal insulation jacket) Fit the thermal insulation jacket evenly around the ■ cylinder body by patting it. ■ Affix type plate Fig.6... -
Page 10: Fitting The 3-Part Thermal Insulation Jacket
Installation sequence Installation (cont.) Fitting the 3-part thermal insulation jacket Fig.7 Note 3. Fit the 2nd thermal insulation jacket to the cylinder Ensure that no fleece remnants enter the cylinder body. through the cylinder connections. 4. Connect the two thermal insulation jackets together Clip fasteners on each cylinder side: using the clip fasteners. - Page 11 Installation sequence Installation (cont.) 7. Connect the two thermal insulation jackets together 9. Push all clip fasteners as close together as they will using the clip fasteners. Note Leave the clip fasteners in the first notch. 8. Attach clip fasteners to the left edge of the last ther- mal insulation jacket.
-
Page 12: Fitting The Cover Strips (3-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover strips (3-part thermal insulation jacket) Fit the thermal insulation jacket evenly around the ■ cylinder body by patting it. ■ Cut out the perforated openings on the cover strips to make way for the connections. ■... -
Page 13: Fitting The Cover
Installation sequence Installation (cont.) Fitting the cover Viessmann logo Fig.10... -
Page 14: Fitting The Cylinder Temperature Sensor
Installation sequence Installation (cont.) Fitting the cylinder temperature sensor Note Sensor well The cylinder temperature sensor is supplied in the con- If a thermometer sensor is already fitted inside the trol unit pack. sensor well, be careful not to kink the sensor lead. Fig.11 Connections on the heating water side Any number of heating water buffer cylinders can be... -
Page 15: Parts Lists Ordering Parts
Parts lists Ordering parts The following information is required: ■ Serial no. (see type plate) ■ Assembly (from this parts list) ■ Position number of the individual part within the assembly (from this parts list) -
Page 16: Cylinder Body
Parts lists Cylinder body 0004 0002 0001 0003 0005 0006 0007 Fig.12... - Page 17 Parts lists Cylinder body (cont.) Pos. Designation 0001 Adjustable foot 0002 Sensor retainer 0003 Vitocell 100-E SVPA type plate 0004 Clamping bracket 0005 Thermometer 0006 Flexible pipe G 2 0007 Vitocell 100-E installation and service instructions...
-
Page 18: 2-Part Thermal Insulation
Parts lists 2-part thermal insulation 0001 0002 0007 0003 0009 0004 0005 0006 0008 0011 0010 Fig.13... - Page 19 Parts lists 2-part thermal insulation (cont.) Pos. Designation 0001 Cover 0002 Thermal insulation mat, upper 0003 Thermal insulation jacket, left section 0004 Thermal insulation jacket, right section 0005 Cap with logo 0006 Cover strip 0007 Cover strip 0008 Thermometer cover (grey) 0009 Clip fastener (6 pce) 0010...
-
Page 20: 3-Part Thermal Insulation
Parts lists 3-part thermal insulation 0001 0002 0006 0008 0003 0004 0009 0005 0011 0007 0010 Fig.14... - Page 21 Parts lists 3-part thermal insulation (cont.) Pos. Designation 0001 Cover 0002 Thermal insulation mat, upper 0003 Thermal insulation jacket, left section 0004 Thermal insulation jacket, right section 0005 Thermal insulation jacket, central section 0006 Cap with logo 0007 Thermometer cover (grey) 0008 Cover strip 0009...
-
Page 22: Commissioning/Service
Commissioning/service reports Commissioning/service reports Commissioning Service Service date: Service Service Service date: Service Service Service date: Service Service Service date: Service Service Service date:... -
Page 23: Specification Product Characteristics
Specification Product characteristics Vitocell 100-E Cylinder capacity 1500 2000 Standby heat loss (standard parameter to DIN EN 12897 : 2006) Standard thermal insulation, 2-part kWh/24 h High efficiency thermal insulation, 3-part kWh/24 h... - Page 24 Applicability Serial no. (see type plate) 7534883 7534884 7369028 7369038 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040...
