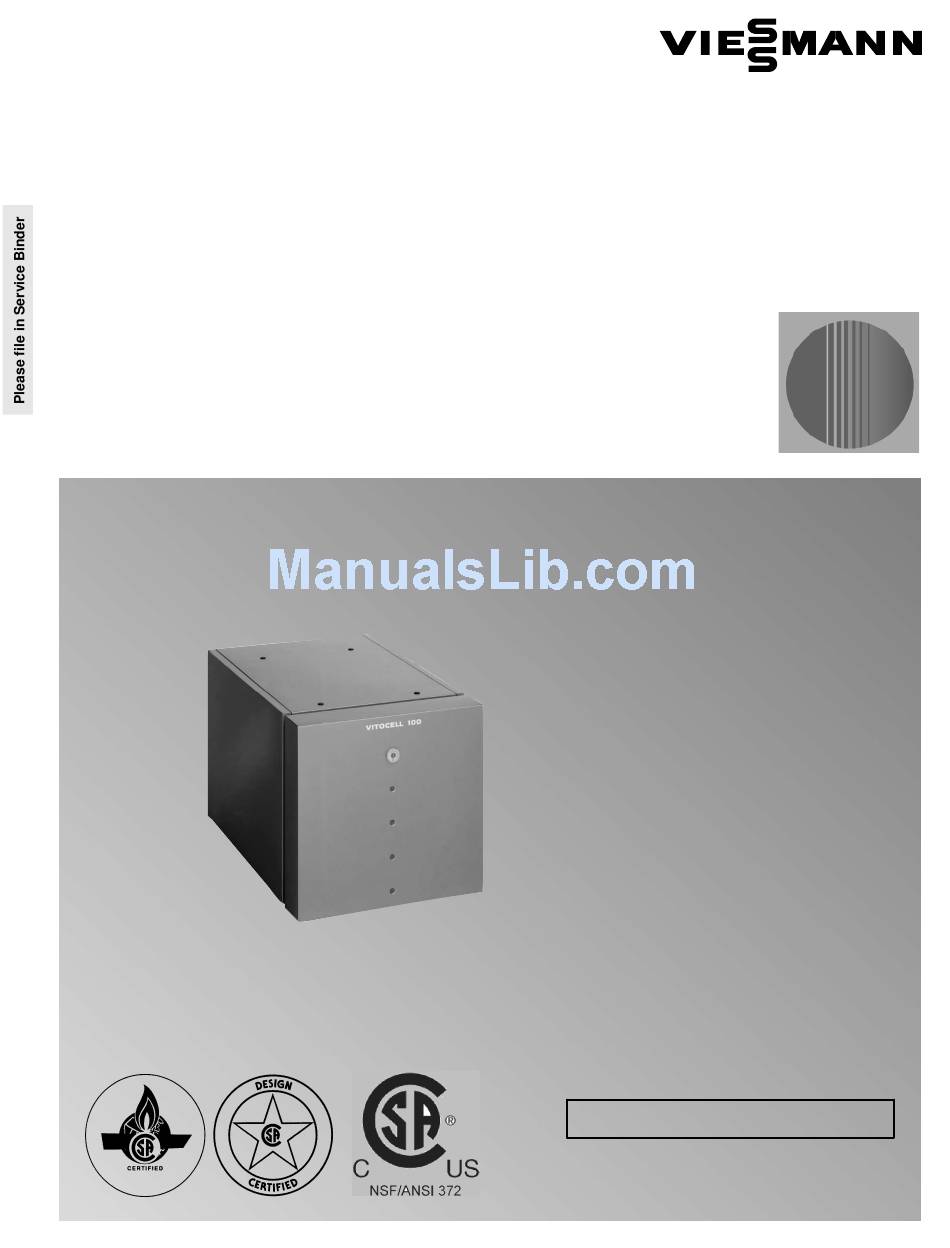

Service Instructions

for Use by Heating Contractor
Vitocell 100
CHA Series

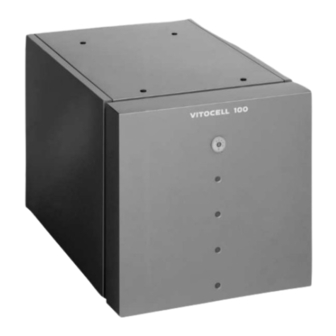

Enameled indirect-fired domestic hot water storage tank
42 and 53 USG / 160 and 200 ltr capacities
Vitocell 100
5167 515 - 01 03/2014
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitocell 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann Vitocell 100

Summary of Contents for Viessmann Vitocell 100

  • Page 1: Service Instructions

    Service Instructions for Use by Heating Contractor Vitocell 100 CHA Series Enameled indirect-fired domestic hot water storage tank 42 and 53 USG / 160 and 200 ltr capacities Vitocell 100 Product may not be exactly as shown IMPORTANT Read and save these instructions for future reference.

  • Page 2: Safety, Installation And Warranty Requirements

    Safety, Installation and Warranty Requirements Safety, Installation and Warranty Requirements Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life. Ensure all requirements below are understood and fulfilled (including detailed information found in manual subsections).

  • Page 3: Important Regulatory And Installation Requirements

    Literature applicable to all aspects of site and advise the system the Vitocell: operator/ultimate owner where the - Technical Data Manual literature can be found. Contact - Installation Instructions Viessmann for additional copies. - Start-up/Service Instructions - Operating Instructions and User’s Information Manual...

  • Page 4: About These Instructions

    About these Instructions Take note of all symbols and notations intended to draw attention to potential hazards or important product information. These include ”WARNING”, ”CAUTION”, and ”IMPORTANT”. See below. The following symbols and flag words may be utilized in these Installation Instructions: Warnings draw your attention to the WARNING...

  • Page 5: Initial Start-Up

    Initial Start-up Initial Start-up For initial start-up of the tank see Operating Instructions and User’s Information Manual of tank. See Installation Instruction Supplement supplied with tank. 1. Fill tank with domestic drinking CAUTION water. Tightening the inspection and 2. Check heating side and domestic clean-out opening is not necessary.
  • Page 6 Service Service Inspection and (if necessary) cleaning of tank must take place within 2 years of initial start-up and as required thereafter. IMPORTANT We also recommend annual inspection of the magnesium anode. The inspection takes place with an anode testing device, measuring the protective current (see following page) and does therefore not require shut-down of the heating...
  • Page 7 Service Service (continued) 4.Check anode protective current with testing device 1. Remove front panel , insulation ring and thermometer sensor 2. Pull grounding cable off insertion 3. Connect anode testing device (testing range of up to 5 mA) between insertion tap grounding cable in series.
  • Page 8 Service Service (continued) 5. Clean inside of tank 1. Drain domestic water from DHW tank. 2. Remove flange , insulation, insulation ring , and thermometer sensor 3. To prevent chemicals from entering piping, disconnect tank from domestic cold water piping system via adaptor.
  • Page 9 Service Service (continued) 7. Place DHW tank in operation again 1. Reconnect DHW tank to piping system. 2. After every opening insert new gasket into flange opening 3. Mount space ring and flange opening and pull tight with max. torque of 25 Nm (221 Ibs.in). 4.

  • Page 10: Parts List

    015 Front panel 023 Operating Instructions and User’s 008 Base panel 016 Panel caps Information Manual 009 Gasket 017 Thermometer 024 Spray paint, vitosilver 026 Vitocell 100 nameplate 025 Touch-up pen, vitosilver 027 Accessory pack to mount front panel Rating plate...

  • Page 11: Maintenance Report
