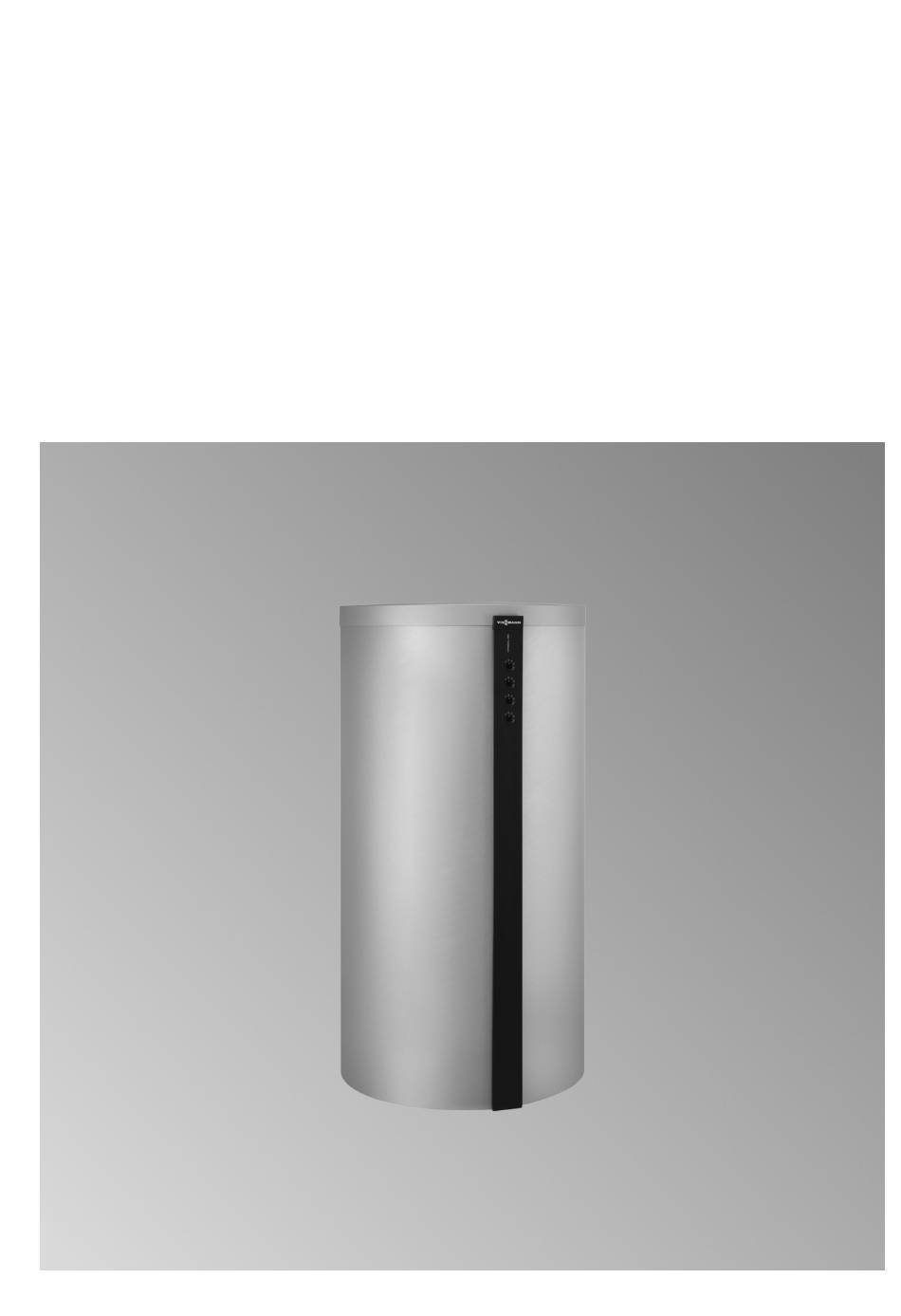

- Page 1 VIESMANN Installation and service instructions for contractors Vitocell 100-E Type SVPA Heating water buffer cylinder 1500 and 2000 l For applicability, see the last page VITOCELL 100-E Please keep safe. 5694 385 GB 9/2015...
- Page 2 Note For replacements, use only original spare parts Details identified by the word "Note" contain additional supplied or approved by Viessmann. information. Target group These instructions are exclusively intended for author- ised contractors.
-
Page 3: Table Of Contents
Index Index Information Disposal of packaging ................Symbols ....................Intended use ..................Product information ................Preparing for installation Connections ................... Siting ...................... Installation sequence Installation ....................Levelling the heating water buffer cylinder ......... ■ Fitting the thermometer sensor (if supplied) ........■... -
Page 4: Information Disposal Of Packaging
Please dispose of packaging waste in line with statu- DE: Use the disposal system organised by tory regulations. Viessmann. AT: Use the ARA statutory disposal system (Altstoff Recycling Austria AG, licence number 5766). CH: Packaging waste is disposed of by the HVAC contractor. -
Page 5: Intended Use
Information Intended use The appliance is only intended to be installed and Any usage beyond this must be approved by the man- operated in sealed unvented systems that comply with ufacturer for the individual case. EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due attention paid to the Incorrect usage or operation of the appliance (e.g. -
Page 6: Preparing For Installation Connections
Preparing for installation Connections Fig. 2 Back Fig. 1 Front Heating water flow 1 (HF 1) Thermometer sensor retainer Heating water flow 2 (HF 2)/heating water return Max. 4 thermometers (TH, accessories) (HR 1) Heating water return (HR 2) Heating water return (HR 3) Sensor well for thermometer sensor (TR 1) Sensor well for thermometer sensor (TR 2) Sensor well for thermometer sensor (TR 3) -
Page 7: Installation Sequence Installation
Installation sequence Installation Please note The thermal insulation must not come into con- tact with naked flames. Exercise caution when welding and brazing. Levelling the heating water buffer cylinder Note Seal connections that are not required with caps. Fig. 3 Type plate 3 adjustable feet 3. -
Page 8: Fitting The Thermometer Sensor (If Supplied)
Installation sequence Installation (cont.) Fitting the thermometer sensor (if supplied) Fig. 4 1. Guide the thermometer sensor through the cover 4. Position the sensor on the outside of the sensor strip and insert the thermometer. retainer contact spring so that it is flush with the front of the spring. - Page 9 Installation sequence Installation (cont.) Fig. 5 1. At the back of the cylinder: Attach clip fasteners to 3. Push the clip fasteners at the back of the cylinder the edges of the right and left sections of the ther- as close together as possible. mal insulation jacket.
-
Page 10: Fitting The Cover Strips (2-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover strips (2-part thermal insulation jacket) Fit the thermal insulation jacket evenly around the cyl- inder body by patting it. Fig. 6 Type plate Fitting the 3-part thermal insulation jacket Note ■ 2 people are required for the following work. ■... - Page 11 Installation sequence Installation (cont.) Fig. 7 1. Push the thermal insulation jacket (central section) 6. Fit the next thermal insulation jacket to the cylinder between the cylinder connections and fit to the cyl- body. inder body. 7. Connect the two thermal insulation jackets together 2.
- Page 12 Installation sequence Installation (cont.) 9. Push all clip fasteners as close together as possi- ble. Fig. 8...
-
Page 13: Fitting The Cover Strips (3-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover strips (3-part thermal insulation jacket) 1. Fit the thermal insulation jacket evenly around the cylinder body by patting it. 2. Cut out the perforated openings on the cover strips to make way for the connections. Fig. -
Page 14: Fitting The Cover (2-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover (2-part thermal insulation jacket) Fig. 10 Viessmann logo... -
Page 15: Fitting The Cover (3-Part Thermal Insulation Jacket)
Installation sequence Installation (cont.) Fitting the cover (3-part thermal insulation jacket) Fig. 11 Viessmann logo Fleece side of the insulation at the bottom Fitting the cylinder temperature sensor The cylinder temperature sensor is supplied in the ■ control unit pack. -
Page 16: Connections On The Heating Water Side
Installation (cont.) Fig. 12 Connections on the heating water side The Vitocell 100-E can be combined either in parallel Note or serial configuration in any number of units. Connec- For connection locations, see page 6. tion pipes and air vent valves should be provided on site. -
Page 17: Parts Lists Ordering Parts
Parts lists Ordering parts The following information is required: ■ Serial no. (see type plate) ■ Assembly (from this parts list) ■ Position number of the individual part within the assembly (from this parts list) -
Page 18: Cylinder Body
Parts lists Cylinder body 0004 0002 0001 0003 0005 0006 0007 Fig. 13... - Page 19 Parts lists Cylinder body (cont.) Pos. Description 0001 Adjustable foot 0002 Sensor retainer 0003 Vitocell 100-E SVPA type plate 0004 Clamping bracket 0005 Thermometer 0006 Flexible pipe G 2 0007 Vitocell 100-E installation and service instructions...
-
Page 20: 2-Part Thermal Insulation
Parts lists 2-part thermal insulation 0001 0002 0007 0003 0009 0004 0005 0006 0008 0011 0010 0012 0013 Fig. 14... - Page 21 Parts lists 2-part thermal insulation (cont.) Pos. Description 0001 Cover 0002 Thermal insulation mat, upper 0003 Thermal insulation jacket, left section 0004 Thermal insulation jacket, right section 0005 Cap with logo 0006 Cover strip 0007 Cover strip 0008 Thermometer cover (grey) 0009 Clip fastener (6 pce) 0010...
-
Page 22: 3-Part Thermal Insulation
Parts lists 3-part thermal insulation 0001 0002 0007 0003 0005 0008 0003 0006 0004 0011 0008 0012 0010 0009 Fig. 15... - Page 23 Parts lists 3-part thermal insulation (cont.) Pos. Description 0001 Cover 0002 Thermal insulation mat, upper 0003 Thermal insulation jacket, side 0004 Thermal insulation jacket, centre 0005 Cap with logo 0006 Thermometer cover (grey) 0007 Cover strip 0008 Cover strip 0009 Clip fastener (6 pce) 0010 Thermal insulation mat, lower...
-
Page 24: Commissioning/Service
Commissioning/service reports Commissioning/service reports Commissioning Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date:... -
Page 25: Specification Product Characteristics
Specification Product characteristics Vitocell 100-E Cylinder capacity 1500 2000 Thermal insulation Standard Highly effi- Standard Highly effi- (2-part) cient (2-part) cient (3-part) (3-part) Standby heat loss kWh/24 h 4.55 to EN 12 897: 2006 with 45 K temperature differ- ential... - Page 28 Applicability Serial No.: 7369028 7369038 Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
