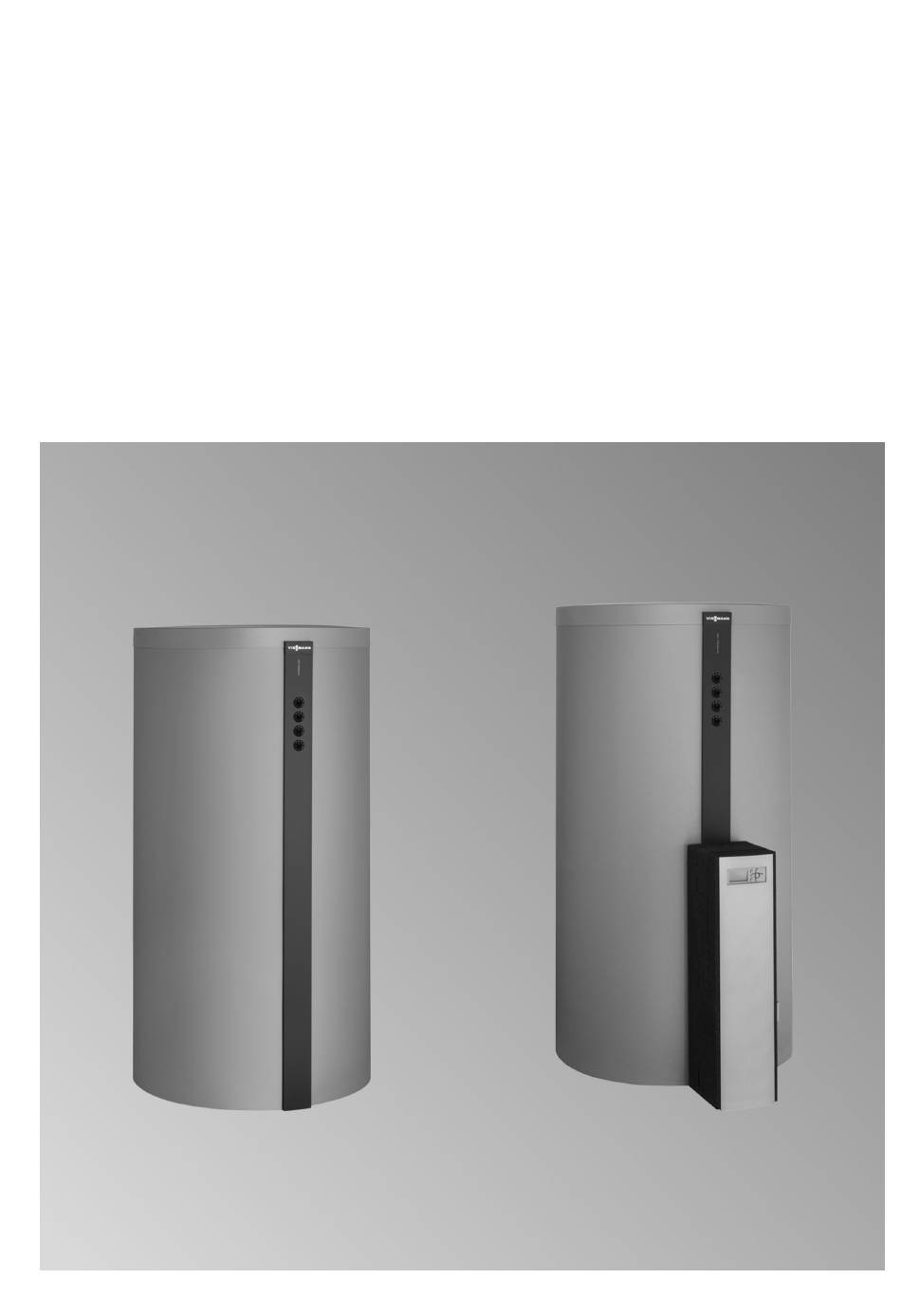

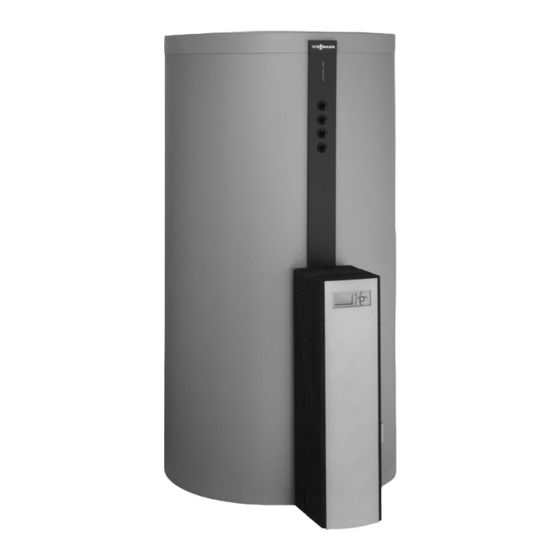

- Page 1 VIESMANN Installation and service instructions for contractors Vitocell 100-E/100-W Type SVW, SVPA Heating water buffer cylinder For applicability, see the last page VITOCELL 100-E/100-W Please keep safe. 5548 462 GB 9/2014...
- Page 2 Faulty components must be replaced with origi- sate or other causes. Ensure a sufficient supply of nal Viessmann spare parts. combustion air. Instruct system users that subsequent modifications to the building characteristics are not permissible (e.g.
- Page 3 Installing non-authorised components and making non-approved modifications or con- versions can compromise safety and may inva- lidate the warranty. For replacements, use only original spare parts supplied or approved by Viessmann.
-
Page 4: Table Of Contents
Intended use ........................Installation information Product information ................Vitocell 100-E/100-W, type SVW (200 l capacity) ......■ Vitocell 100-E, type SVPA (400, 750 and 950 l) ....... ■ Connections ..................■ Installation sequence Siting the Vitocell ................... 11 Vitocell with immersion heater, type SVW .......... 11 ■... -
Page 5: Intended Use
Intended use Intended use The appliance is only intended to be installed and operated in sealed unvented systems that comply with EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due attention paid to the associated installation, service and operating instruc- tions. -
Page 6: Installation Information Product Information
(immersion Vitocell 100-W: White heater). Vitocell 100-E, type SVPA (400, 750 and 950 l) Steel heating water buffer cylinder for storing heating Suitable for systems to EN 12828 and DIN 4753. water in combination with heat pumps, solar thermal systems, solid fuel boilers and heat recovery. - Page 7 Installation information Product information (cont.) Air vent valve (EL) Heating water flow 1 (HV1) to the heating circuits Sensor well 1 (SPR1) for cylinder temperature sensor Heating water flow 2 (HV2) from the heat generator Sensor well 2 (SPR2) for cylinder temperature sensor Heating water return 2 (HR2) from the heating circuits Heating water return 1 (HR1)
- Page 8 Installation information Product information (cont.) Heating water flow 1 (HV1) to the heating circuits / air vent valve (EL) Sensor well 1 (SPR1) for cylinder temperature sensor Heating water flow 2 (HV2) from the heat generator Sensor well 2 (SPR2) for cylinder temperature sensor Heating water flow 3 (HV3) / heating water return 1 (HR1)
- Page 9 Installation information Product information (cont.) Type SVPA (750 and 950 l) Thermometer sensor retainer Thermometer (TH) up to 4 pce (accessories) Heating water flow G 1 Return stratification G 1 Heating water return G 1 Fig. 5 Front...
- Page 10 Installation information Product information (cont.) Heating water flow 1 (HV1) to the heating circuits / air vent valve (EL) Heating water flow 2 (HV2) from the heat generator Sensor well (SPR1) for cylinder temperature sensor Thermometer sensor retainer Sensor well 2 (SPR2) for cylinder temperature sensor and thermometer sensor Heating water flow 3 (HV3) / heating water return 1...
-
Page 11: Installation Sequence Siting The Vitocell
Type SVW 200 l min. 650 mm 6 kW Vitocell 100-E/100-W, type SVW Please note 3. If no electric immersion heater is installed, seal the The thermal insulation must not come into con- front female connection with the plug supplied. Fit tact with naked flames. -
Page 12: Connecting The Equipotential Bonding
Installation sequence Connecting the equipotential bonding Connect the equipotential bonding in accordance with Carry out the equipotential bonding in accordance the requirements stipulated by your local power supply with the technical requirements stipulated by the local utility and VDE [or local] regulations. power supply utility and SEV regulations. - Page 13 Installation sequence Type SVPA 400 l: Fitting the thermal insulation (cont.) Fig. 9 Note 2. At the front of the cylinder: Attach 6 clip fasteners to 2 people are required for the following work. the edges of the right and left sections of the ther- mal insulation jacket.
-
Page 14: Fitting The Thermometer, Thermometer Sensor And Cover Strips
Installation sequence Type SVPA 400 l: Fitting the thermal insulation (cont.) Fitting the thermometer, thermometer sensor and cover strips Fig. 10 Type plate (self-adhesive) Fit the thermal insulation jacket evenly around the cyl- Note inder body by patting it. Slide the thermometer sensor into the clamping bracket at the upper base as far as possible and tighten the wing nut. -
Page 15: Fitting The Cover
Installation sequence Type SVPA 400 l: Fitting the thermal insulation (cont.) Fitting the cover Fig. 11 Type SVPA 750/950 l: Fitting the thermal insulation Please note The thermal insulation must not come into con- tact with naked flames. Exercise caution when welding and brazing. -
Page 16: Fitting The Lower Thermal Insulation Mat; Levelling The Vitocell
Installation sequence Type SVPA 750/950 l: Fitting the thermal… (cont.) Fitting the lower thermal insulation mat; levelling the Vitocell Fig. 12 Type plate Bag with adjustable feet Insert the adjustable feet into the legs as far as possi- Note ble, then adjust them to level the cylinder. Never extend the adjustable feet beyond a total length of 35 mm. -
Page 17: Fitting The Thermometer Sensor (If Available)
Installation sequence Type SVPA 750/950 l: Fitting the thermal… (cont.) Fitting the thermometer sensor (if available) Fig. 13 1. Guide the thermometer sensor through the cover 4. Depending on where the sensor is to be fitted: strip and insert the thermometer. Secure the thermometer sensor in the clamping bracket or pull the sensor retainer out of the sensor 2. -
Page 18: Type Svpa: Fitting The Vitotrans
Installation sequence Type SVPA: Fitting the Vitotrans Fitting the Vitotrans Fig. 14 Fig. 15 1. Fit the bolts to the cylinder. 3. Wind the nuts onto the bolts until hand-tight. 2. Fit the module. - Page 19 Installation sequence Type SVPA: Fitting the Vitotrans (cont.) DE F Fig. 16 1. Connect heating water flow connection pipe 3. Connect return stratification connection pipe connection on the Vitotrans. connection on the Vitotrans. 2. Connect heating water return connection pipe 4.
-
Page 20: Thermal Insulation On The Vitocell With Vitotrans
Installation sequence Thermal insulation on the Vitocell with Vitotrans Fitting the thermal insulation jacket Note Ensure that no fleece remnants enter the heating water buffer cylinder through the cylinder connections. Fig. 17 Note 2. Fit 4 clip fasteners above and 2 clip fasteners 2 people are required for the following work. -
Page 21: Closing The Thermal Insulation And Fitting The Cover Strips
Installation sequence Thermal insulation on the Vitocell with… (cont.) Closing the thermal insulation and fitting the cover strips Fig. 18 1. Tighten the nuts on the bolts. 3. Insert the rear sections of the Vitotrans thermal insulation. Observe the groove in the thermal insu- 2. -
Page 22: Fitting The Cover
3. Fit the rear strip to the thermal insulation. tion. 4. Affix the type plate. 2. Push the cylinder thermal insulation towards the front by patting it. This reduces the gap between the Vitotrans and the cylinder. Fitting the cover Fig. 20 Viessmann logo... -
Page 23: Fitting The Cylinder Temperature Sensor
Installation sequence Fitting the cylinder temperature sensor Note The cylinder temperature sensor is supplied in the con- trol unit pack. Fig. 21 Sensor wells for 200 l capacity Sensor wells for 400 l capacity Sensor wells for 750 and 950 l capacity Note Never wrap insulating tape around the sensor. - Page 24 Installation sequence Connections on the heating water side (cont.) Permissible pressure 1. Connect all pipework with detachable fittings. Operating pressure: 3 bar (0.3 MPa) 2. Install the flow line with a rise and fit an air vent Test pressure: 4.8 bar (0.48 MPa) valve at the highest point.
-
Page 25: Parts List, Type Svw (200 L)
Parts not shown Installation and service instructions Spray paint Touch-up paint stick, Vitosilver Vitocell 100 logo VIESSMANN logo Pos. Part Clamping bracket Sensor retainer Plug Cover Thermometer 30 - 120 °C Adjustable foot Top panel Flange insulation VIESSMANN logo (curved) - Page 26 Parts list, type SVW (200 l) Ordering parts, type SVW (200 l) (cont.) Fig. 24...
-
Page 27: Parts List, Type Svpa Ordering Parts, Type Svpa (400 L)
(from this parts list) Cylinder assembly, type SVPA 400 l Pos. Part 0001 Plug 0002 Clamping bracket 0003 Type plate, Vitocell 100-E SVPA 400 l 0004 Sensor retainer 0005 Adjustable foot 0006 Vitocell 100-E installation and service instructions 0002 0001... -
Page 28: Thermal Insulation Assembly Type Svpa 400 L
0002 Insulation mat, top 0003 Thermal insulation jacket, right section 0004 Thermal insulation jacket, left section 0005 Cap with logo 0006 VIESSMANN logo 0007 Vitocell 100 logo 0008 Cover strip 0009 Cover strip 0010 Thermometer 30 to 120 °C 0011... -
Page 29: Parts List, Type Svpa Ordering Parts, Type Svpa (750/950 L)
Cylinder assembly, type SVPA 750/950 l Pos. Part 0001 Adjustable foot 0002 Sensor retainer 0003 Vitocell 100-E SVPA type plate 0004 Clamping bracket 0005 Vitocell 100-E installation and service instructions 0006 Plug 0006 0002 0004 0003 0005 0001 Fig. 27... -
Page 30: Thermal Insulation Assembly, Type Svpa 750/950 L
Thermal insulation mat, bottom 0006 Cover 0007 Cover strip 0008 Thermometer cover (grey) 0009 Thermometer 30 - 120 °C 0010 VIESSMANN logo (curved) 0011 Cover strip 0012 Bezel (3 pce) 0013 Bezel (2 pce) 0014 Cap with logo 0015 Bezels without hole... -
Page 31: Commissioning/Service
Commissioning/service reports Commissioning/service reports Commissioning Service Service date: Service Service Service date: Service Service Service date: Service Service Service date: Service Service Service date:... -
Page 32: Keyword Index
Intended use..............5 Applicability Serial no. (see type plate) 7201937 7201938 7248307 7501369 7552963 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com...
