- Page 1 CUE-104FE 4-Port USB 2.0 Over Extender Cat5/6 up to 165ft User Manual Version: V1.0.1...

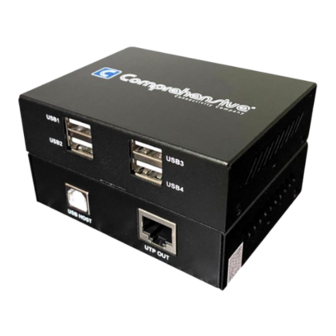

- Page 2 Overview Comprehensive’s CUE-104FE is a low-cost and high-performance 4-Port Plug-and-Play USB 2.0 over Cat5e/Cat6 Extender Hub Kit that transmits data from a computer to as many as four USB 2.0 peripherals up to 165ft (50m) away. This extender kit can work with all major operating systems including Windows®, MacOS®...
- Page 3 Application Diagram Video conference system Transmitter USB-A to USB-B Cable HDMI Cat X cable Receiver Display USB-A USB-A USB-A USB-A Keyboard & Mouse USB Camera...
- Page 4 Personal entertainment system Transmitter HDMI USB-A to USB-B Cable Cat X cable Receiver USB-A Cable USB Controller...
- Page 5 Specifications Video TX: 1 x USB Type-B 1 x UTP Out I/O Connections RX:1 x UTP IN 1 x DC 12V IN 4 x USB 2.0 USB 2.0 and backward compatible with Input/Output Signal Type USB 1.1 and USB 1.0 Maximum Data Rate Up to 480Mbps General...
- Page 6 Panel Description Front Panel Name Description Blinking: The device is working properly. a & 3 Status LED Off: The device is not working properly. b & 2 Power LED On/Off: The device is powered on/off. DC 12V 12V DC power input UTP IN Connect TX and RX with a Cat 5e/6 cable.
- Page 7 Rear Panel Name Description Connect to the PC with a USB-A to USB-B USB Host cable. UTP OUT Connect TX and RX with a Cat 5e/6 cable. Connect to USB devices such as keyboard, USB 1-4 mouse, MIC, USB camera.
- Page 8 Troubleshooting No Power Ensure the power is on. Ensure you use the power adapter provided in the package. If the transmitter is powered by the USB host, the receiver can be powered by transmitter through PoE. If connect to high power USB device(s), using external power supply to power the receiver is recommended.
