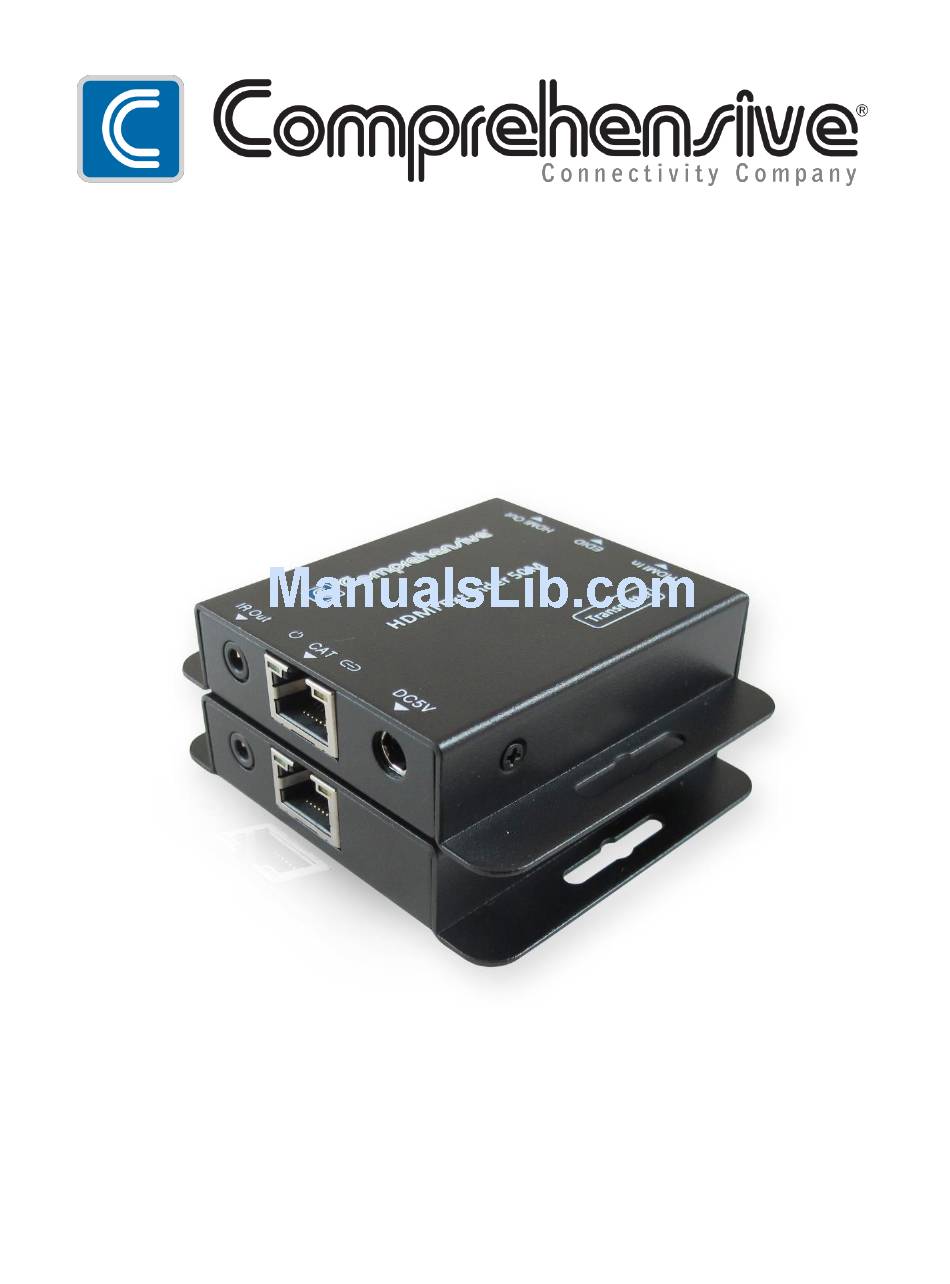

CHE-1
HDMI Extender with IR Control up to 164ft
over Single Cat5e/6
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHE-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Comprehensive CHE-1

Summary of Contents for Comprehensive CHE-1

  • Page 1 CHE-1 HDMI Extender with IR Control up to 164ft over Single Cat5e/6 USER MANUAL...
  • Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. INTRODUCTION The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable.
  • Page 3 RJ-45 connector: WE/SS 8P8C 3.5mm connector: (TX and RX) IR Receiver/IR Blaster MECHANICAL SPECS: Housing: Metal enclosure Power Supply: (1) 5V1A DC Power consumption: 1.5 watts (TX); 1.0 watts (RX) Operation temperature: 32~104 °F Storage temperature: -4 ~140 °F Relative humidity: 20~90 % RH (no condensation) PACKAGE CONTENTS: 1.
  • Page 4 6. CAT: Connect the CAT output of the transmitter with the CAT input of the receiver with a CAT5E/6 cable. 7. Link LED: The LED will illuminate when the device is connected to HDMI source. 8. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an AC outlet.
  • Page 5 Recommended EQ setting Position Cable Length under 15m (49.5ft) 15-30m (49.5 ft - 99ft) 30-40m (99ft - 132ft) 40-50m(132ft – 164ft) CONNECTION DIAGRAM...
  • Page 6 CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit.
  • Page 7 To control the display: Plug IR Receiver into IR RX port of transmitter unit; place receiver in position where it is able to receive remote signals. Comprehensive puts everything within reach. Check out the collection of computers & hardware we offer.
