- Page 1 TS 7 3 EMF Hold-open system...

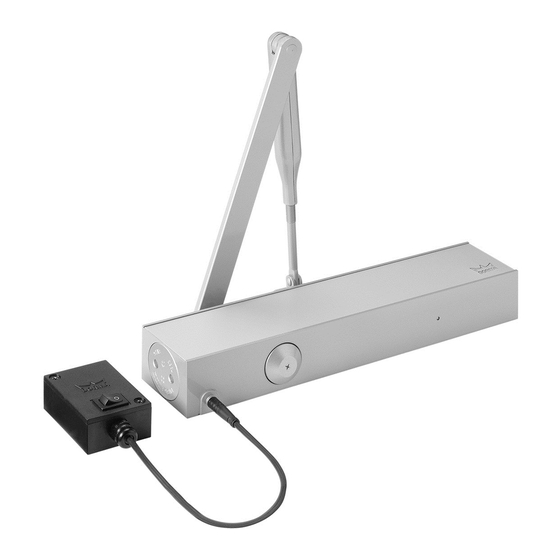

- Page 2 Universal application capability, stable hold-open point Data and features TS 73 EMF and assured quality. Closing force Spring The TS 73 EMF is a hydraulic door closer with integrated strength electro-magnetic hold-open for use on fire and smoke Standard doors ≤ 11 50 mm –...
- Page 3 Standard and optional functions 1 Infinitely variable The closing speed of the TS 73 EMF is infinitely closing variable by means of a valve. In addition, the 2 Infinitely variable latching action can be adjusted via the closer arm. latching action...
- Page 4 Door opening up to 180° with standard arm only possible where X ≤ 70 mm Example: RH/ISO 5 door; mirror image for LH/ISO 6 door. Example application: Hold open system TS 73 EMF + RMZ + 2x RM-N RM-N RM-N...
- Page 5 Accessories Mounting backplate For pull and push side fixing For mounting the TS 73 EMF to fire and smoke check 32,5 doors and also doors in which no direct fixing is possible. ø 5,5 Hinge plate For pull-side installation of the arm on particularly narrow door frames.
-
Page 6: Standard Equipment And Optional Accessories
TS 7 3 EMF Standard equipment and optional accessories TS 73 EMF hold-open device Standard Free swing Extended Extended Mounting Hinge Manual switch Door leaf fixing, pull side adjustable backplate plate HT-UP assembly 35901531 HT-AP □ 7540xx00 □ 530005xx □... - Page 7 Hold-open systems regulations / information – General building regulations pertaining to the approval of the hold-open system concerned – EN 1155 – EN 14637 1. General 1.1 In the case of fire doors (and similar 1.2 Any hold-open device must be “Close Door”...
