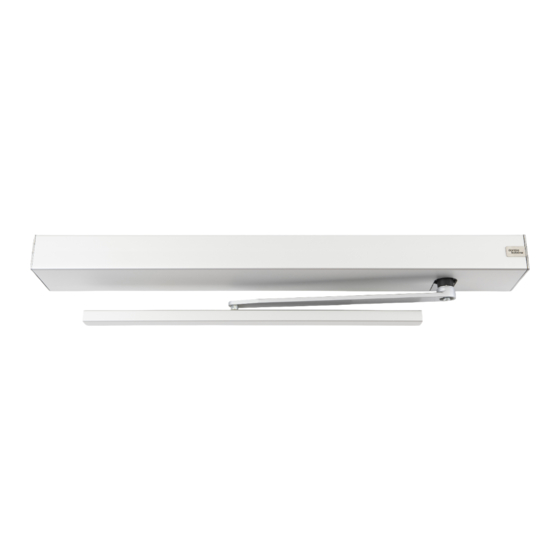

ED50LE/ED100LE
Low energy swing door operators
Fine cover
Owner's Manual
DL4616-003 – 09-2021
| EN |

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED50LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dormakaba ED50LE

Summary of Contents for Dormakaba ED50LE

  • Page 1 ED50LE/ED100LE Low energy swing door operators Fine cover Owner's Manual DL4616-003 – 09-2021 | EN |...

  • Page 2: Table Of Contents

    ED50LE/ED100LE Owner's Manual Chapter 1 Fine cover Table of contents Table of contents General information To our customers What you should know Distributor information ED50LE/ED100LE low energy operator Low energy power operated swinging doors ANSI/BHMA A156.19 Mode switch and Exit Only switch panels...

  • Page 3: General Information

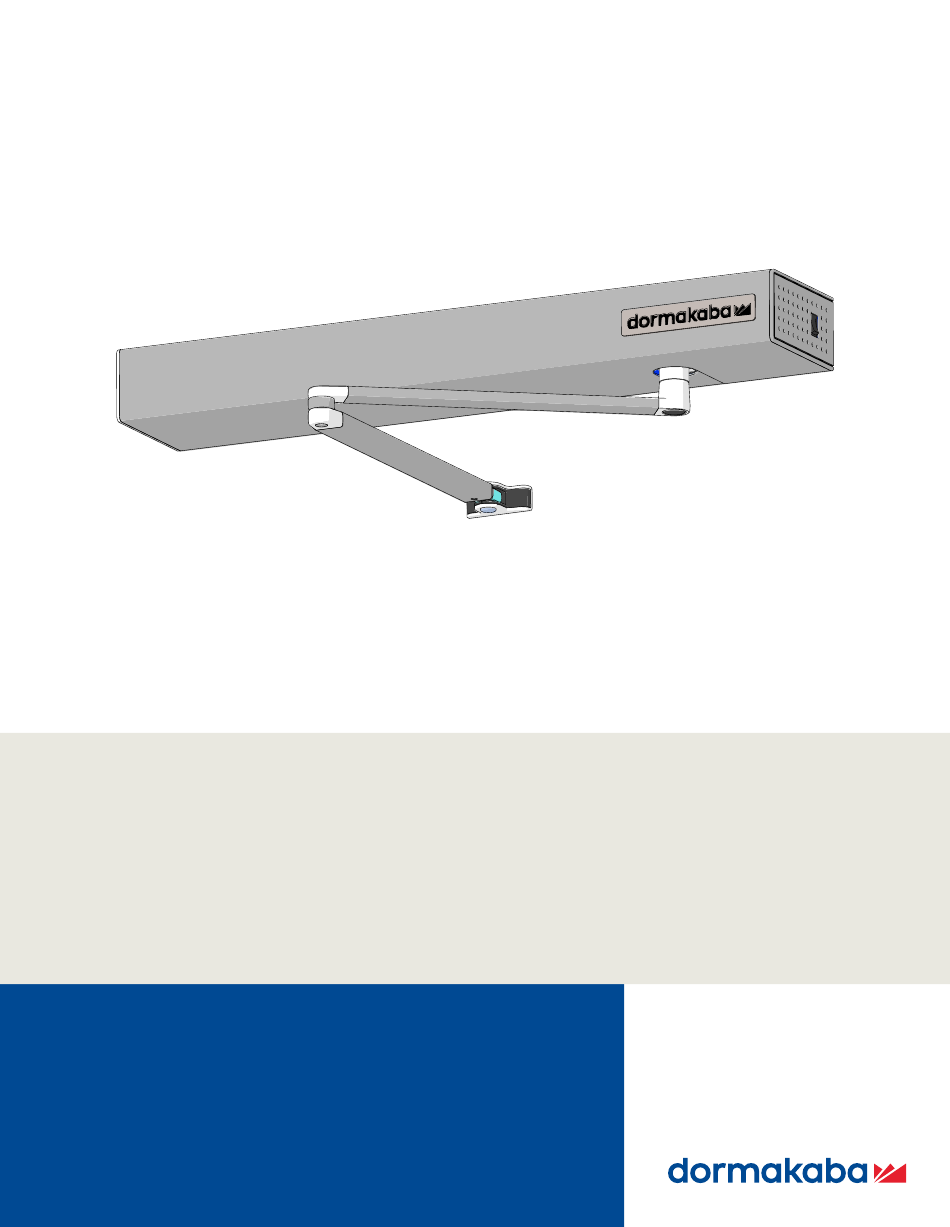

    Fine cover 1 General information 1.1 Owner's Manual. Fig. 1.1 ED50LE/ED100LE operator with fine cover This Owner's Manual applies to dormakaba ED50LE and ED100LE (fine cover) low energy swing door operators. 1.2 ED50LE and ED100LE installation. NOTICE Interior building surface installation.

  • Page 4: To Our Customers

    ED50LE/ED100LE Owner's Manual Chapter 2 Fine cover 2 To our customers We are pleased that a dormakaba ED50LE or ED100LE 2.1 Service availability. (fine cover) low energy swing door system has been dormakaba USA, Inc. has a nationwide network of selected for this installation.

  • Page 5: What You Should Know

    3.2 ED50LE/ED100LE low energy operator 3.1.1 dormakaba USA Inc. distributor information. Be sure that the dormakaba USA Inc. distributor has ED50LE/ED100LE operators are available only as a low provided the following information for each door energy operator (Para. 3.3). installation: 3.3 Low energy power operated...

  • Page 6: Mode Switch And Exit Only Switch Panels

    ED50LE/ED100LE Owner's Manual Chapter 3 Fine cover Mode switch and Exit Only switch panels Fig. 3.4.1 Fine cover Mode switch, Exit Only switch, 3 position 2 position 3.4.1 Mode switch 3.4.2 Exit Only switch 3.4.3 Mode switch position descriptions.

  • Page 7: Aaadm Safety Information Label

    ED50LE/ED100LE Owner's Manual Chapter 4 Fine cover 4 AAADM Safety information label Safety information label, low energy power operated doors 4.1.1 Low energy swing door safety information label. Fig. 4.1.1 Safety Information and Annual Compliance This AAADM label outlines safety checks that should be...

  • Page 8: Daily Safety Check Procedures

    • Force to prevent the door from closing should not 5. Have door inspected by a dormakaba USA Inc. exceed 15 pounds measured with a force gauge. AAADM certified technician annually, at a minimum. 4. Door safety signage •...

  • Page 9: Ed50Le/Ed100Le Door Signage

    ED50LE/ED100LE Owner's Manual Chapter 6 Fine cover 6 ED50LE/ED100LE door signage 6.1 Low energy operator, ANSI/BHMA A156.19 6.1.1 Overview Fig. 6.1.1 AUTOMATIC CAUTION DOOR decal Signage and warnings are specified in ANSI /BHMA A156.19, American National Standard for AUTOMATIC Low Energy Power Operated Swinging Doors.

  • Page 10: Door Signage, Low Energy Single Swing Door, Ansi/Bhma A156.19

    ED50LE/ED100LE Owner's Manual Chapter 6 Fine cover 6.2 Door signage, low energy single swing door, ANSI/BHMA A156.19 Fig. 6.2.1 Knowing act device initiation of door operation Fig. 6.2.2 Push / Pull initiation of door operation Push to Operate Pull to Operate...
  • Page 11 ED50LE/ED100LE Owner's Manual Chapter 6 Fine cover Fig. 6.3.3 Push / Pull, push to operate Fig. 6.3.4 Push / Pull, pull to operate AUTOMATIC AUTOMATIC CAUTION CAUTION AUTOMATIC AUTOMATIC CAUTION CAUTION DOOR DOOR DOOR DOOR DD0586-010 DD0586-010 DD0586-010 DD0586-010...

  • Page 12: Ed50Le/Ed100Le Maintenance

    7.1.1 ED50LE/ED100LE environmental requirements. Table 7.1.1 Operator environmental requirements. The ED50LE and ED100LE with fine cover is designed to Ambient temperature 50 to 122 °F [-150 to 500C] operate on an interior building surface under the specifications shown in Table 7.1.1.
  • Page 13 ED50LE/ED100LE Owner's Manual Blank page Fine cover This page left intentionally blank. ED50LE/ED100LE DL4616-003 09-2021...
