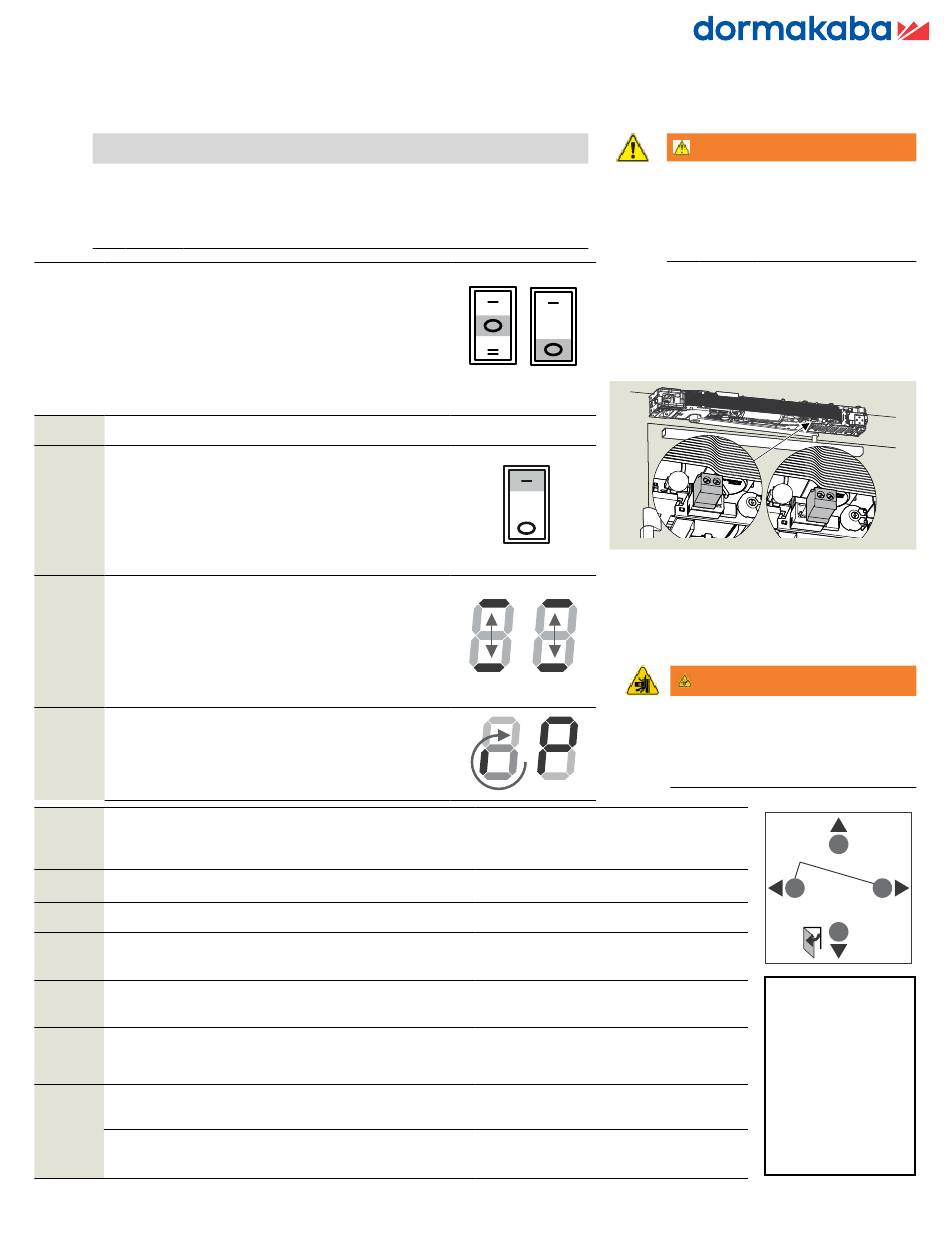

Quick Start Guide
ED900
NOTICE
This guide is intended to be used as a reference to assist in
programming the dormakaba ED900 operator in accordance with
ANSI A156.19 Standard for Low Energy Power Operated Doors.
•
The ED900 operator must be completely installed
per the applicable dormakaba USA Inc. ED900
Installation Instruction Manual.
•
Door must be closed.
•
Both program switches in the CLOSE "0" position.
Step
Directions
Power switch to ON position.
•
A series of numbers and letters will show
up on the display.
1
•
This will stop after two horizontal dashes
side by side move up and down several
times.
While the dashes are moving up and down,
press the bottom button on the display.
•
This will identify which way the unit is
2
mounted.
•
Letters and numbers will now display
right side up.
The display will show a "P" on the right with
a rotating segment on the left.
Press and hold the right button until Parameter
ID is displayed (approximately 3 seconds), then
3
release the button.
4
Press the right button.
Press the right button again.
5
Press the up and down buttons to change the
6
setting.
7
Press the right button to accept the changes.
Press the left button to return to the
8
programming menu.
Press the down button to go to the next
parameter setting (or)
9
Press the left button to exit programming menu.
ED900
Expected results
Parameter ID will appear (ex. AS).
Displays the current setting.
Display will flash the current setting.
Displays the new parameter
setting.
Displays the current Parameter ID
(Step 3).
Go back to Step 4.
Display will show a rotating
segment and a "0".
08125350
Verify power fail closing speed
and braking circuit plug position
before programming the door
and completing a learn cycle.
Power fail closing speed.
•
The door must be adjusted to close in
no less than three seconds but a
minimum of five seconds is recommended.
Braking circuit plug position
A
28
A – Pull arm
When the braking circuit plug is in the
correct position the door will easily Press
open and close slowly. If the door is very
hard to Press open change the jumper
position.
If braking circuit plug is inserted
incorrectly, brake circuit will not
work. The door can close at high
speed!
www.dormakaba.com
WARNING
B
B – Press arm
WARNING
< 3s Quit
> 3s Reset
> 3s
< 3s
LEARN
> 8s
Fact-Setup
All three required
parameter settings
(AS, rd, Tb) must
be made to flash
even if the value
does not need to
be changed before
the door will move
to the learn cycle.
02-2020
> 3s
PRG
