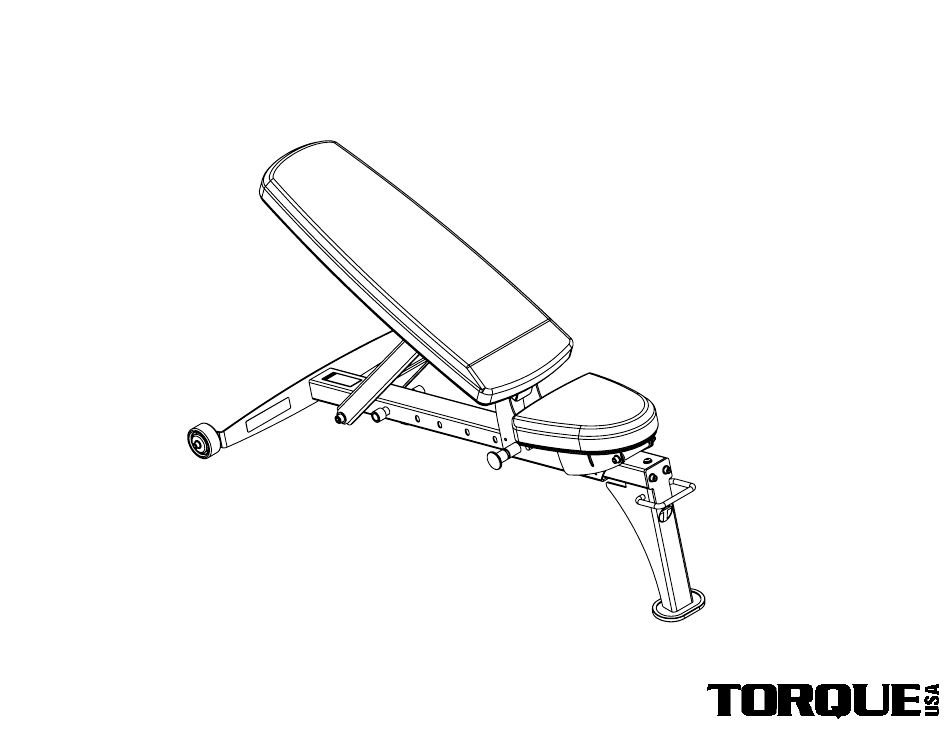

FLAT INCLINE BENCH ASSEMBLY GUIDE
VERSION: FFIB-101
PART #: 5494001-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5494001-B and is the answer not in the manual?

Questions and answers

Related Manuals for Torque 5494001-B

Summary of Contents for Torque 5494001-B

  • Page 1 FLAT INCLINE BENCH ASSEMBLY GUIDE VERSION: FFIB-101 PART #: 5494001-B...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important safety instructions: • Important safety instructions for using equipment: Page 3 • Important safety instructions for assembling equipment: Page 3 • Obtaining service: Page 3 General Notes: • Unpacking equipment: Page 4 • Tools Required: Page 4 •...

  • Page 3: Important Safety Instructions For Using Equipment

    DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). Failure to comply with these instructions will void any and all product warranties.

  • Page 4: General Notes

    If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm • Insert all bolts in the direction indicated in •...

  • Page 5: Parts List

    ITEM PART NO DESCRIPTION 54906PA PTD ASSY, SEAT SLIDE 5333801 ASSY, SPRING PIN 40MM 54899PA PTD ASSY, BENCH FRAME 54910PA PTD ASSY, FRONT LEG 2001101 WASHER, FLAT 3/8 SAE ST ZN 2004011 BOLT, 3/8-16 X 3-1/4" BUTTON HEAD W/NP 2009404 BOLT, 3/8-16 X 1-1/4"...

  • Page 6: Assembly Instructions: Pages

    STEP 1 SECURELY tighten spring to the seat slide...
  • Page 7 STEP 2 Pull back spring pin and carefully slide seat over the bench frame. Release spring pin into the first hole...
  • Page 8 STEP 3 6 3/8 X 3-1/4" (83mm) 7 3/8 X 1-1/4" (32mm) W/NP SECURELY tighten all bolt connections in this step...
  • Page 9 STEP 4 1/2 X 4-1/4" (108mm) NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.
  • Page 10 STEP 5 14 1/2 X 6-1/2" (165mm) NOTE: SECURELY tighten bolt connections, then back nuts off 1/4 turn. Part should rotate freely.
  • Page 11 STEP 6 7 3/8 X 1-1/4" (32mm) W/NP SECURELY tighten bolt connections in this step...
  • Page 12 STEP 7 3/8 X 4-3/4" (121mm) NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.
  • Page 13 STEP 8 3/8 X 4-3/4" (121mm) NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.
  • Page 14 STEP 9 3/8 X 3" (76mm) W/NP SECURELY tighten bolt connections in this step...

  • Page 15: Attachment And Adjustment Instructions

    GRIPS: Inspect and replace if they appear worn or damaged. the seat back down. For customer service contact Torque Fitness Customer service at: 763-754- 7533 (8:30 am - 5:00 pm CST). or 1-877-TORQUE5 (1-866-664-9894).
