Gabarron PHM075 Installation Instructions And User Manual

Before connecting the unit for the first time, please, read
these instructions carefully.
1.- IMPORTANT INFORMATION
•
The warranty of the panel heater will not cover any damage
caused by non observance of any of these instructions.
•
This Guide must be kept and given to any new owner.
•
Check that the voltage shown on the rating plate on the heater is
the same as the voltage of the supply to which connection is to be
made.
•
Should the heater be moved and reinstalled it is essential that the
work is carried out by a competent electrician.
•
The use of panel heaters is forbidden in any area where there is a
presence of gases, explosives or inflammable objects.
•
Do not use this heater to dry clothes.
•
Neither the connecting cable nor any other object must come into
contact with the hot unit.
•
Do not cover this heater at any time.
•
The surfaces of this heater can be hot, so young children should
not be left unsupervised in the vicinity of the heater.
•
The air outlet grill at the top of the heater cabinet and the air inlet
at the bottom of the heater are provided to ensure the most effi-
cient operation of the appliance. They also protect the heater from
overheating, therefore, it is essential that at no time are they cov-
ered.
•
This heater should be disconnected from the electricity supply
before any repair work is carried out. This action should also be
taken during the times of the year when heat is not required.
•
The panel heater should not be installed just below an electrical
socket.
•
The appliance must be installed in such a way that switches and
other control devices cannot be touched by a person using a bath
or shower.
•
The installation must be carried out in accordance with the current
electrical regulations.
•
The heater is fitted with a flexible cable size 3 x 1.00 mm2 for
electrical connection. It may be used to connect the heater to the
fixed wiring of the premised through a suitable connection box po-
sitioned adjacent to the panel heater.
•
This appliance must be connected to the supply by fixed wiring.
The supply circuit to the heater must incorporate a double pole
isolating switch having a contact separation of at least 3 mm.
•
If the flexible power cable for this unit is damaged, it may only be
replaced by a repair workshop recognised by the manufacturer, as
special tools are necessary.
•
This appliance must be earthed.
•
Before carrying out any work inside the appliance, the panel heater
must be disconnected from the electricity supply.
•
The presence in the air of particles of smoke, dust and other
pollutants could, in time, discolour the walls and surfaces around
the panel heater.
•
Please complete the enclosed warranty card and return it to the
manufacturer to enable registration to take place.
•
All models are supplied with an electrical interrupt cut-out. This will
switch off the heater if, for any reason, it overheats. Should the cut-
out operate, turn the heater off and remove the cause for the over-
heating. The cut-out will be reset automatically.

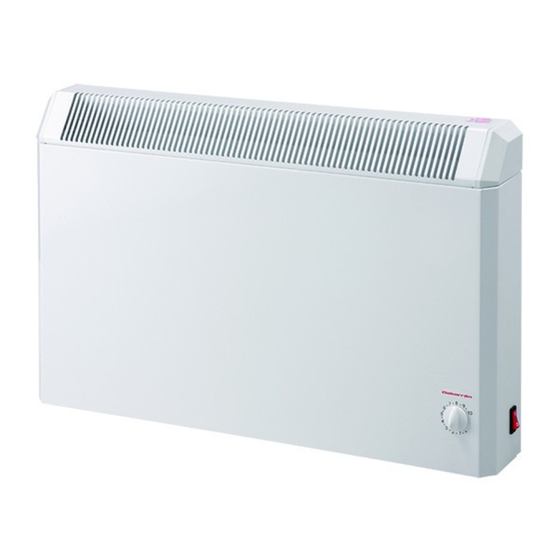

PANEL CONVECTOR HEATERS
INSTALLATION INSTRUCTIONS AND USER GUIDE
PHM075 RATING 750 W
PHM125 RATING 1250 W
PHM150 RATING 1500 W
PHM200 RATING 2000 W
230 – 240 V~
230 – 240 V~
230 – 240 V~
230 – 240 V~
2.- Installation instructions
- When positioning the heater for installation it is important that a mini-
mum clearance of 50 cm must be allowed between the heater and any
combustible materials, such as furniture, curtains etc, to ensure the best
heating results.
Fig. 1
- Open the carton at the indicated side. The screws are in the accessories
bag. Turn the carton upside down to allow the heater to stand. Check that
it is the correct model and that it is in good condition.
- Fix the two square brackets to the back of the heater by using the two
small screws (see Fig. 1).
8cm
10cm
min 15cm
- Position and fix the top bracket at the correct distance from the floor
(see Fig. 2) and hang the unit on the hooks of the top bracket. Mark the
fixing points on the wall using a pencil. Use the heater fixing holes as a
template and mark the wall through the two fixing holes in the square
brackets. Fix the heater to the wall.
41.0 cm ( 750W)
56.0 cm (1250W)
63.5 cm (1500W)
78.5 cm (2000W)
Fig. 2
min 15cm
