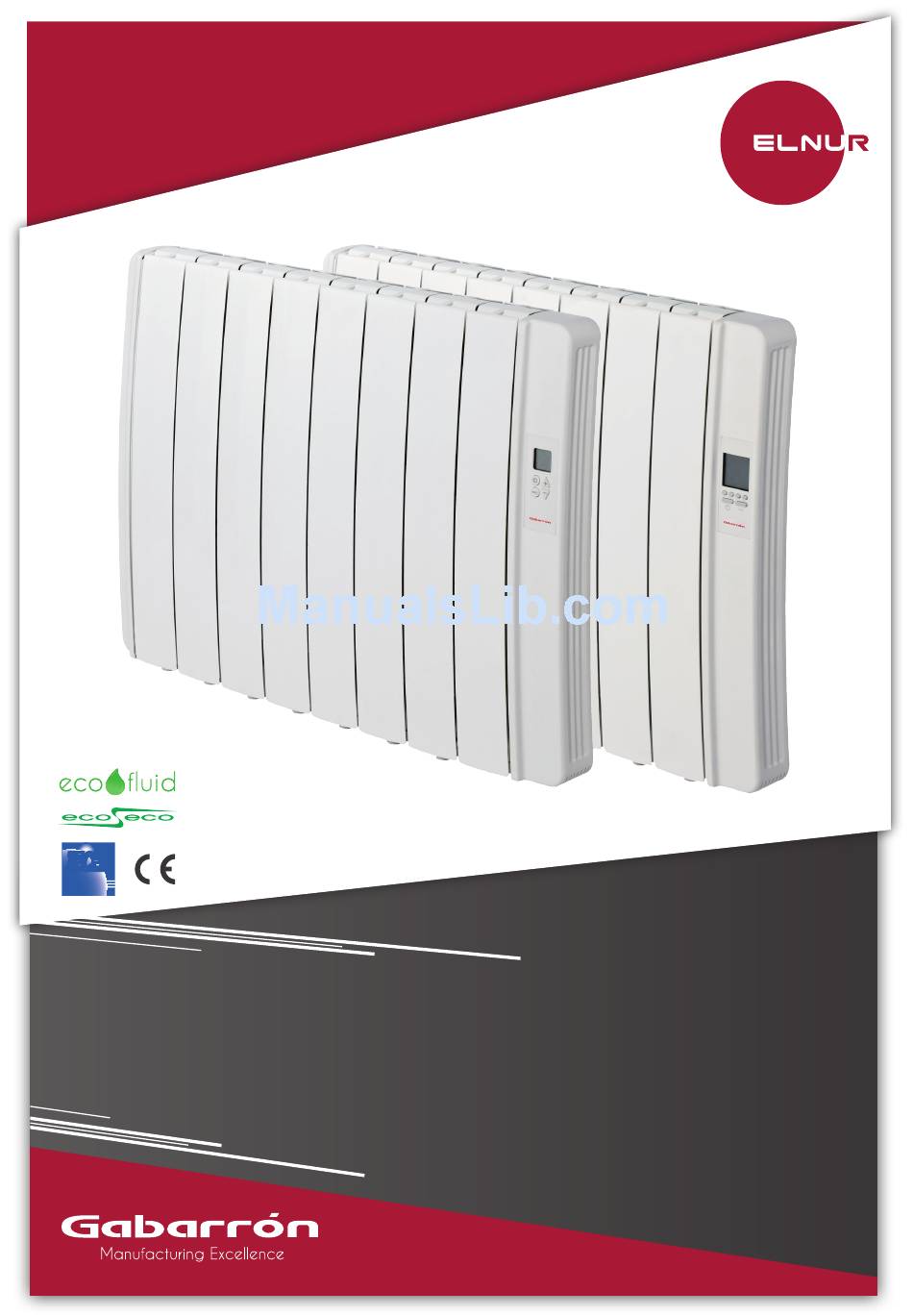

- Page 1 INSTALLATION INSTRUCTIONS AND USER GUIDE IECEE IECEE SCHEME INTERTIA ELECTRIC RADIATOR RKS4Hi RKS4L RKS6Hi RKS6L RKS8Hi RKS8L RKS10Hi RKS10L RKS12Hi RKS12L RKS14Hi RKS14L Please read these instructions before installing or using this appliance for the first time...
-
Page 2: Installation Instructions
1. - WARNING The warranty of the heater will not cover any damage caused by non observance of any of these instructions. • This guide must be kept and given to any new owner. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of •... - Page 3 3. - USING THE THERMAL RADIATOR Main switch. MODELS RKSHi All models are equipped with one switch on the back surface allowing the heater disconnection. ON/OFF key: Push the button to switch on/off the heater. Also you may lock/unlock the keyboard by maintaining it for several seconds.
- Page 4 BLUE BACKLIGHT Pressing any key the display will illuminate with a soft blue color. After certain time if no other keys are pushed the display backlight will turn off. It is also possible to adjust the display backlight time. “mod.” Hold the key during five seconds.
- Page 5 MODELS RKSL CONNECT / DISCONNECT Main switch. All the models are equipped with the switch on the back surface for general heater disconnection. After a long-term disconnection it is necessary to reset the unit system time. These four keys perform different operations depending on the message of the LCD display.
- Page 6 ON/OFF The heater may operate only in one of two conditions; ON or OFF. OFF: To switch on the unit to ON mode press the key: Last operation mode before the unit had been switched off PROG will be displayed. Press the same key to switch off the unit and pass to OFF.
- Page 7 PERMANENT COMFORT MODE In permanent comfort mode the unit maintains constantly the set point temperature. It is possible to modify COMFORT set point temperature in 0,5ºC steps by pressing the “+” “–” keys Temperature range is from 5 to 30ºC. When the heater consumes power, ON message is displayed.
- Page 8 AUTO PROG KEY INFO KEY 0h 2 8 10 12 14 16 18 20 22 24 Press the key to modify PROG the program Press the key to see the premises temperature or set point temperature, according to configurations of MENU 5 SAND GLASS KEY ABSENCE KEY Press the key to adjust the specified temperature for...
- Page 9 CONFIGURATION It is possible to configure various parameters of the unit. “ ” ON/OFF In OFF mode press for 10 seconds key to enter the first configuration menu. It is necessary to pass through five menus to exit the configuration. The Menu number is displayed above in the right part of the display.
-
Page 10: Cleaning And Maintenance
Menu 3: Configuration of CPL This menu allows associating the unit to the remote CPL programmer connected to the same power grid. “+” In menu 3 press the for 5 seconds. CPL message will start blinking. Switch the CPL programmer, remote control desk to the “association” mode (see “+”... -
Page 11: Specifications
SPECIFICATIONS Models (Hi, L) RKS4Hi RKS6Hi RKS8Hi RKS10Hi RKS12Hi RKS14Hi RKS4L RKS6L RKS8L RKS10L RKS12L RKS14L ELEMENTS LENGTH (cm) 41.5 57.5 73.5 89.5 105.5 121.5 41.5 57.5 73.5 89.5 105.5 121.5 WIDTH(cm) 10 plus 2.5 cm separation from the wall... - Page 12 WARNIN G: In order to avoid overheating do not cover the heater. The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recyc ling of electrical and electronic equipment.
