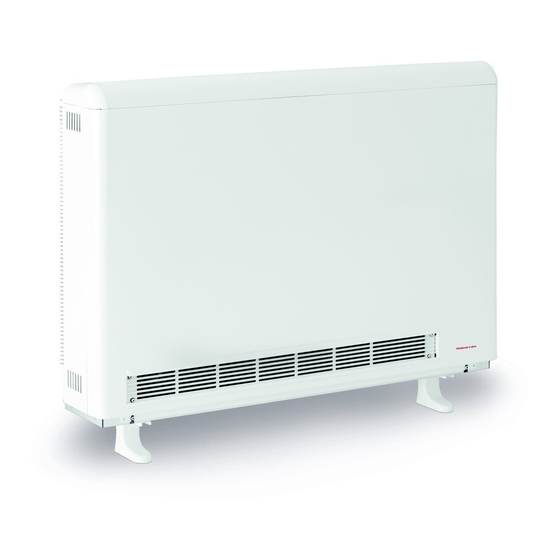

- Page 2 Installation Instructions IMPORTANT INFORMATION ECOHHR20 ECOHHR30 ECOHHR40 Please read all the instructions carefully before installing or using the Balancing element output 1100 heater for the first time and retain for future use. Storage heater element rating 1742 2613 3484 WARNING - THE SURFACE OF THIS HEATER CAN BE HOT. Charge period Particular attention must be given where children and vulnerable people Charging (7h)
- Page 3 Installation Instructions Information symbols used within this manual are as follows:- WARNING This indication shows the possibility of causing death from electric shock. WARNING This indication shows the possibility of causing death or serious injury. CAUTION This indication shows the possibility of causing injury or damage to properties only. This symbol is for useful information.
- Page 4 Installation Instructions 3. Flip the box upside down to allow the heater to stand on its feet and remove the carton. Please check that it is the correct model and is in good condition. Check that all parts have been delivered and are intact: 1 ECOMBIHHR heater casing.
- Page 5 Installation Instructions 8. Unscrew the inner panel and remove it. WARNING Steel edges can cut. CAUTION In the interior part of this inner panel there is a very delicate MICROTHERM insulation panel. It has to be handled with extreme care. AVOID TOUCHING OR BENDING IT. 9.
- Page 6 Installation Instructions 12. Place the third row of storage bricks with the flat side facing out. 13. Refit the inner front panel. If the bricks have been fitted correctly you will have no difficulty in refitting the panel. Make sure the bottom edge of the inner panel is inside the front lip of the heater. Please see below: 14.
-
Page 7: Main Components List
Installation Instructions RELOCATION WARNING: Relocation to another location must be carried out by an experienced technician. If during reinstallation the thermal insulation shows any sign of damage, it must be removed and replaced by an identical part. MANUALLY RESET TEMPERATURE LIMITER This heater employs a manually reset temperature limiter (see Safety Cut-out in the connection diagram). -
Page 8: Connection And Disconnection
Installation Instructions Connection and Disconnection Each ECOHHR storage heaters has its own power switch and is located on the right side panel. The power switch is used to turn the heater ON and OFF. If this switch is turned OFF then the storage heater will not take a charge when the off peak supply is on and will not give out any heat. -
Page 9: General Settings
Installation Instructions General Settings The General settings MUST be configured after installation by the installer to ensure correct operation. It is important to configure the off peak times correctly. The HHR allows you to configure two separate off peak charge periods; Period 1 via P01 & P02 and Period 2 via P03 &... -
Page 10: Factory Reset
Installation Instructions Factory Reset Factory reset allows you to reset the heater back to its factory default settings. To Reset, turn ON the heater via the switch at the right side of the heater while holding down the clock buttons at the same time. -
Page 11: Installation Instructions
Installation Instructions Connection Diagram – HHR20... - Page 12 Installation Instructions Connection Diagram – HHR30...
- Page 13 Installation Instructions Connection Diagram – HHR40...
- Page 14 Installation Instructions WARNING In order to avoid overheating do not cover the heater The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
