INSTALLATION INSTRUCTIONS AND USER GUIDE
Please read these instructions before installing or using this appliance for the first time.
ELECTRIC DESIGNER RADIATORS
RF4E
RF6E
RF8E
RF10E
RF12E
RF14E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF4P and is the answer not in the manual?

Questions and answers

Summary of Contents for Gabarron RF4P

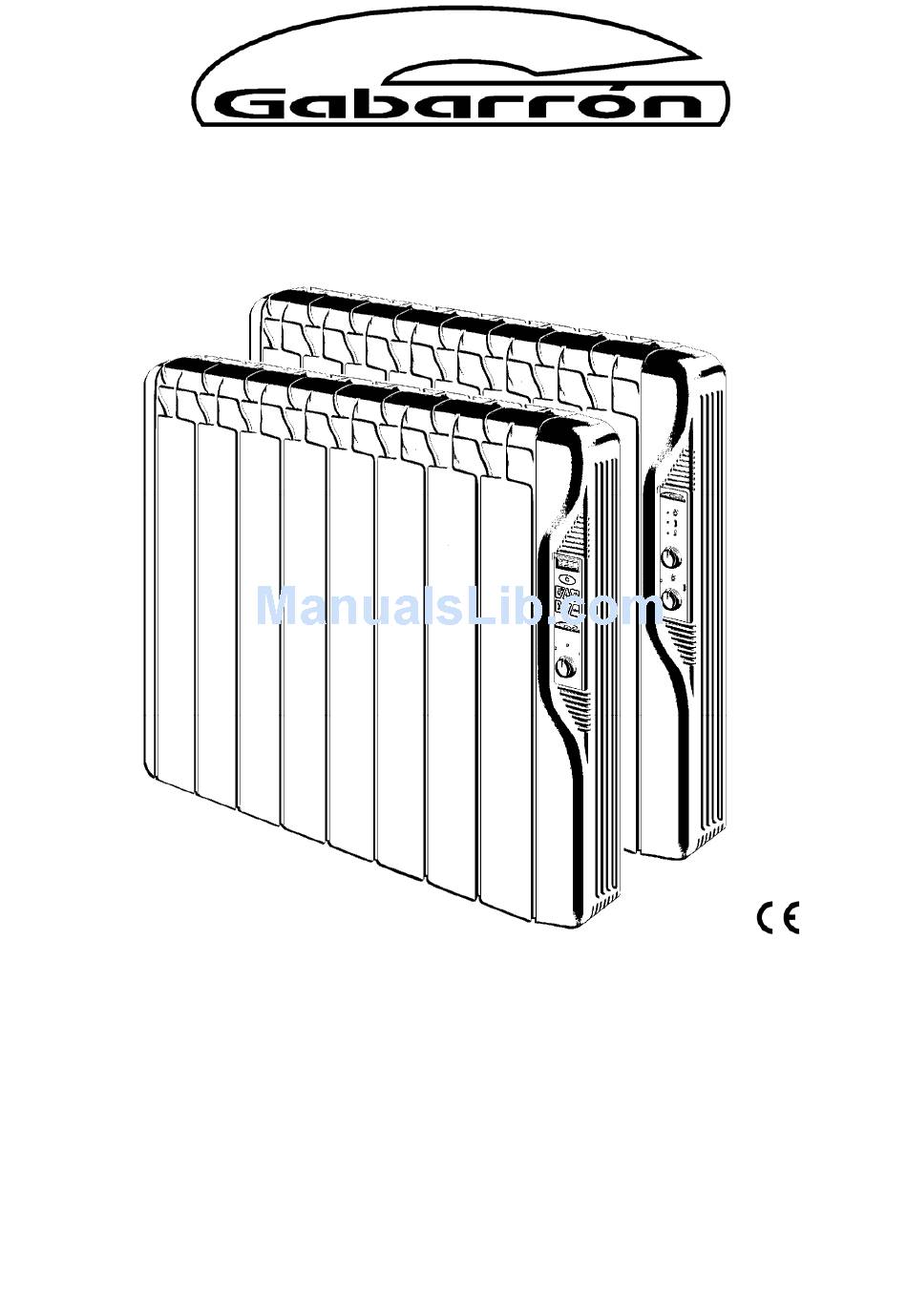

  • Page 1 ELECTRIC DESIGNER RADIATORS RF4P RF4E RF6P RF6E RF8P RF8E RF10P RF10E RF12P RF12E RF14P RF14E INSTALLATION INSTRUCTIONS AND USER GUIDE Please read these instructions before installing or using this appliance for the first time.
  • Page 2: Installation Instructions

    This heater is filled with a precise quantity of special oil. Repairs requiring the opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage. • Regulations concerning the disposal of oil when scrapping the appliance have to be followed. Modelo RF4P RF6P RF8P RF10P RF12P...
  • Page 3 Use the heater as a Position and fix the brackets at the correct distance from the floor template and mark the and hang the unit on the hooks of the brackets. and mark the wall. fixing points on the wall Use the polystyrene packaging to level the heater and protect the using a pencil through the floor.
  • Page 4 DIGITALS MODELS RFE Digital DISPLAY: shows time, temperature other messages. Heating indicator: This small dot will be lit when Key + : heater consuming It increases the energy. values. SUN indicator Frost protection key: If the display shows the time the heater is in frost protection SUN key : mode.
  • Page 5 SUN, MOON AND TEMPERATURES The electronic programmer is able to handle three temperature levels during the 24h of the day. Press the key to set the SUN temperature. The display will show the SUN temperature value blinking. – Set the SUN temperature value by means of the keys and press the key to store the value.
  • Page 6: Cleaning And Maintenance

    WEEKLY PROGRAMMES It is possible to allocate different programs to different days of the week. To do this, the controller has to be upgrade from 24hr mode (factory default) to 24hr/7days mode as follows: Move the selector to position, the display will be Off. Press the key and at the same time turn the selector to position maintaining the P-SE...
  • Page 7 WIRING controller MODELS RF-E R heating element Ts safety cut - out C three way selector sensor MODELS RF-P R heating element Ts safety cut out controller C three way selector sensor...
