Assembly instructions
Single wall bars
Thank you very much for choosing a Sport-Thieme product!
Please read the instructions fully before use so that you can enjoy the product and safety is guaranteed.
Please keep these instructions for future reference. Should you have any questions or requests, we are happy to
help.

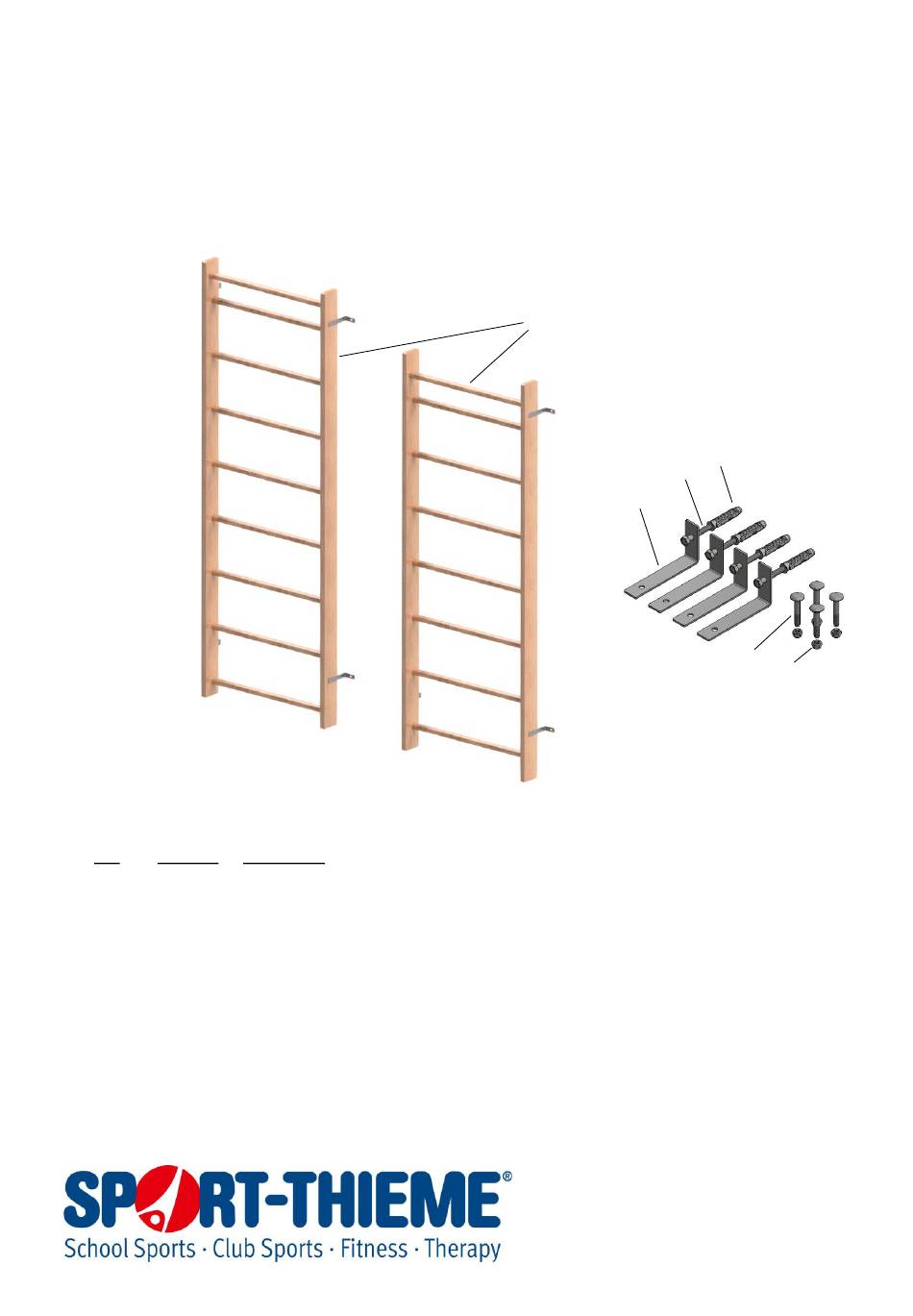

Illustration 1: 122 6557 (230×80 cm, 9 rungs – on the left) and 122 6560 (210×80 cm, 8 rungs – on the right)
Parts list:
No.
Quantity
1
1
2
4
3
4
4
4
5
4
6
4
Assembly
Tools required: Tape measure or folding rule, spirit level, pencil, hammer, drill with a diameter of 9 mm (wood) &
12 mm (masonry/concrete), SW13 spanner
Number of people required: 1–2
Time required: Approx. 30 min.
Description
Single wall bars (8 or 9 rungs)
Securing bracket, L: 130×65 mm, 3 mm thick, 25 mm wide
Coach bolt, M8×40
Nut, M8
Hexagon wood screw, 8×60
Plastic raw plug (12×60)
Product numbers: 122 6557 (230×80), 122 6560 (210×80)
①
⑥
⑤
②
③
④
Version 03/2019 · Page 1
Advertisement
Table of Contents
Related Manuals for Sport-thieme Single wall bars 122 6557
Summary of Contents for Sport-thieme Single wall bars 122 6557
- Page 1 Product numbers: 122 6557 (230×80), 122 6560 (210×80) Single wall bars Thank you very much for choosing a Sport-Thieme product! Please read the instructions fully before use so that you can enjoy the product and safety is guaranteed. Please keep these instructions for future reference. Should you have any questions or requests, we are happy to help.
- Page 2 Assembly instructions for product codes 122 6557, 122 6560 Difficulty: Medium Please note: Before installing the wall bars, please assess the wall that it will be attached to. It should be a solid load-bearing wall (solid brick, lime sandstone or reinforced concrete) which can safely withstand horizontal forces of at least 900 N in line with DIN 7910 (illustration 2).
- Page 3 Various Sport-Thieme products can be attached to the wall bars at different heights, e.g., Sport-Thieme® Sloping Board (122 6805), Sport-Thieme® Pull-Up Bars (122 6906 & 281 6106), Sport-Thieme® ‘Original’ Gymnastics Benches, 3+ m (121 8419 et seq.) Sport-Thieme® ‘Vario’ Ladder (122 3109) and further products from the modular vaulting box range.
