Sport-thieme 122 4001 Assembly Instructions

Swivel castor kit

Operating/assembly instructions

Swivel castor kit for vaulting boxes

Prod. code: 122 4001

Assembly instructions for swivel castor kit

Thank you very much for choosing a

fully before you assemble the equipment so you can enjoy the product and its

measured from

the floor!

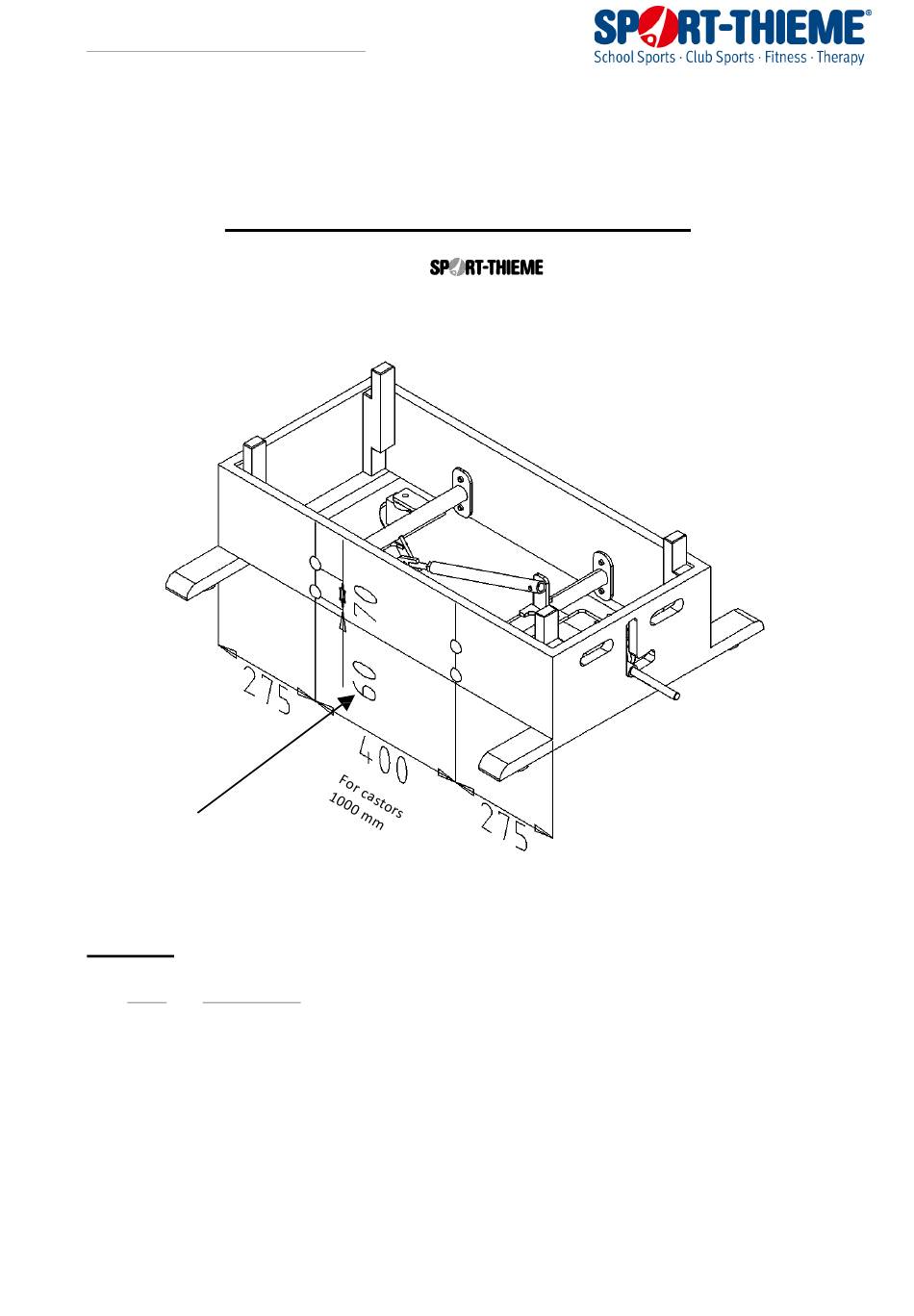

Ill. 1: Sport-Thieme swivel castor kit for vaulting boxes

Included:

Pos.

Description

front set of castors with telescopic lever

rear set of castors without telescopic lever

adjustable connecting tube

4 x axle bearing

8 x coach bolt M8 with locking nut

2 x telescopic lever

2 x hex bolt M8 with locking nut

product. Please read the instructions

guaranteed safety:

From

the

floor

page 1 / 4

Sport-Thieme GmbH

38367 Grasleben / Germany

Tel: +49 (0)5357 181 81

Fax: +49 (0)5357 181 90

04/2016

Table of Contents

Do you have a question about the 122 4001 and is the answer not in the manual?

Page 1 From the floor measured from the floor! Ill. 1: Sport-Thieme swivel castor kit for vaulting boxes Included: Pos. Description front set of castors with telescopic lever rear set of castors without telescopic lever adjustable connecting tube...
Page 2 Operating/assembly instructions Swivel castor kit for vaulting boxes Sport-Thieme GmbH Prod. code: 122 4001 38367 Grasleben / Germany Tel: +49 (0)5357 181 81 Fax: +49 (0)5357 181 90 Tools required: 2 spanners 13 mm ∅ 8.5 mm * 1 wood drill bit...
Page 3 Operating/assembly instructions Swivel castor kit for vaulting boxes Sport-Thieme GmbH Prod. code: 122 4001 38367 Grasleben / Germany Tel: +49 (0)5357 181 81 Fax: +49 (0)5357 181 90 ƒ ‚ 8. Bolt connecting pole to the set of castors using hex bolts and locking nut For vaulting boxes without assembly cut-outs.
Page 4 Operating/assembly instructions Swivel castor kit for vaulting boxes Sport-Thieme GmbH Prod. code: 122 4001 38367 Grasleben / Germany Tel: +49 (0)5357 181 81 Fax: +49 (0)5357 181 90 Caution: Do not overload the equipment! Maintenance and care instructions Instructions: Carry out a visual check at regular intervals. Due to our continuous quality control of the products, technical changes may occur which may lead to slight deviations in the instructions.
