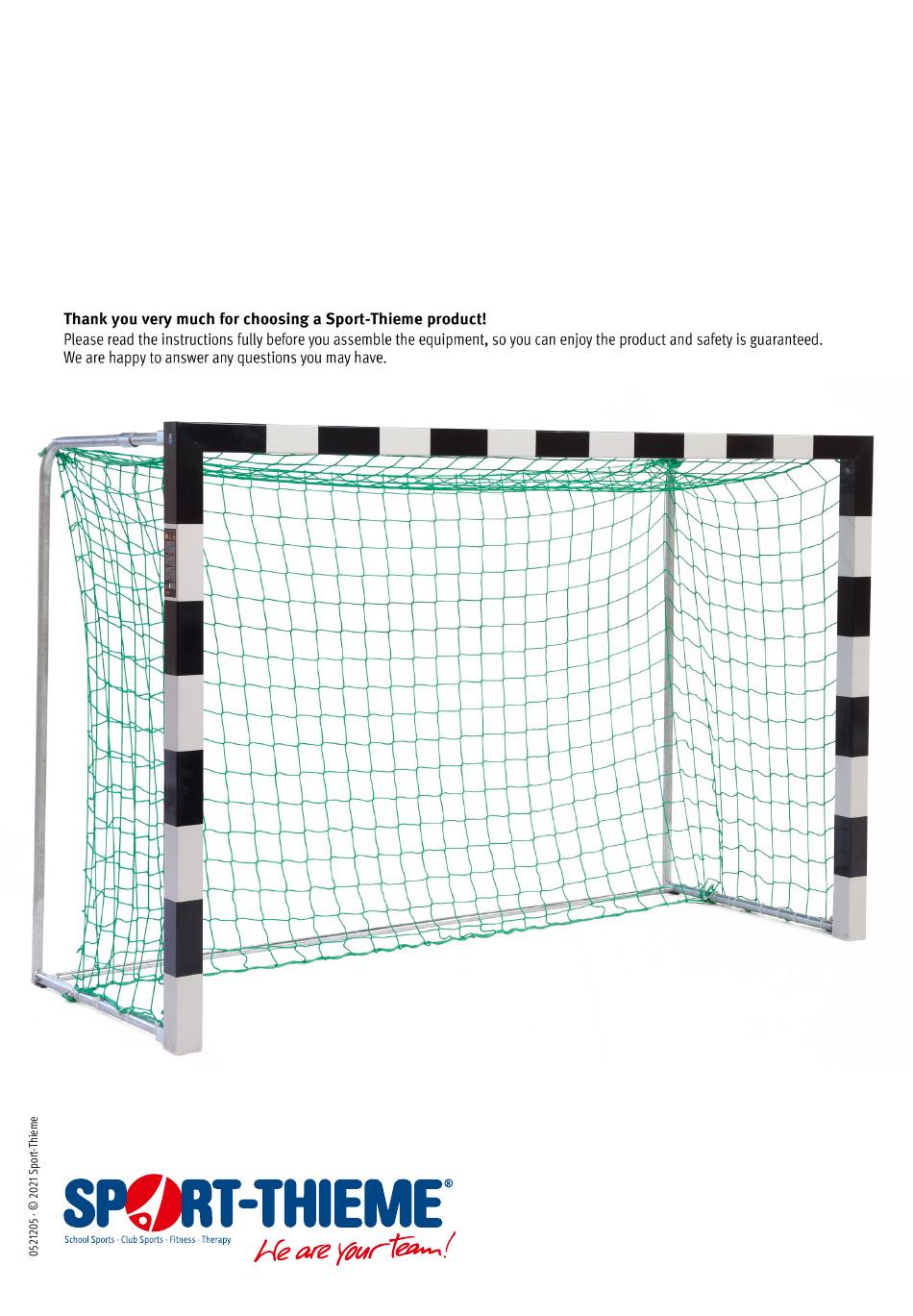

- Page 1 Assembly instructions Art.-Nr.: 1151666 1151679 1151682 Sport-Thieme Mini Handball Goal, 3.00x1.60 m D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
- Page 2 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 1. Scope of delivery Please check the following content before assembly. The following in dicated quantities refer to 1 street soccer goal. In case of a delivery in pairs we double the amount.
- Page 3 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 2. Assembly of the goal The following tools are necessary: - 2 wrench/ring spanners 13 mm - 1 wrench/ring spanner 10 mm - 1 mallet/hammer - 1 drill Ø 1.5 mm - 1 thin screwdriver...
- Page 4 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 b) Assembly of upper steel hinges: Place steel hinges/angles on the edges of crossbar/upright construction and adjust holes, the open sides of the U profiles facing to the goal inside (see picture bottom left). Then screw hexagon screws DIN 931, M8 x 50 and fix them (see picture bottom right).
- Page 5 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 e) Assembly of net hoops: Fix net hoops in hinges. Consider that net hoop ends with 2 holes (round tube) are inserted in the upper hinges and the ends with 1 hole (square tube) in the lower hinges. Adjust holes of net hoops with holes of the hinges.
- Page 6 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 3. Assembly of the net At first fix net holders at the net rope. Bend open net holders a little and press rope into the holders. We recommend the fol- lowing distribution of net holders.
- Page 7 Assembly instructions for Art.-Nr. 1151666, 1151679, 1151682 4. torage of the goal To store the goal unscrew wing nuts at the upper hinges and remove screws. Fold net hoops. Then screw slightly wing nuts and screws into the 2nd holes of the upper hinges so that they don’t get lost.
