Assembly instructions
Sport-Thieme pull-up bar
Prod. code: 122 6906
122 6919
Thank you very much for choosing a Sport-Thieme product. We want to make sure
that you can enjoy this product, so here is some important advice for your safety as
well as for the use and maintenance of the equipment. Please read these
instructions fully before you assemble and use the equipment.

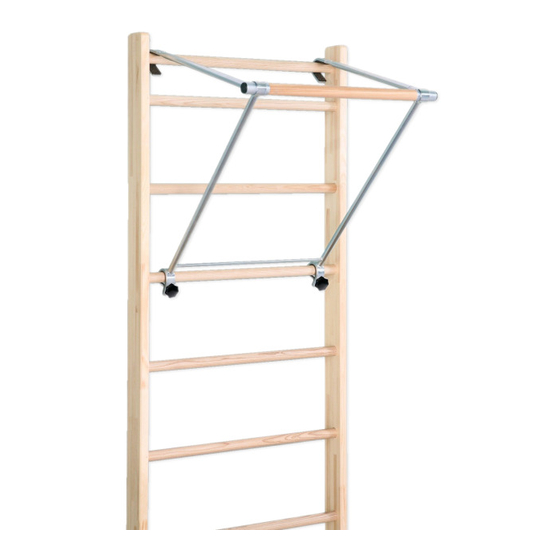

Ill. 1: Pull-up bar (122 6919 wide)

1. General

The wall bars pull-up bar has a variety of uses and can be attached to any standard
set of wall bars at various heights. Furthermore, the bar can be used as a support
structure for the platform of the 'ramp' (Prod. code 128 5648). The sturdy metal
construction and the wooden bar ensure safe use. Assembly is easy and can be
carried out without tools. After use, the pull-up bar can be stored compactly.
Assembly instructions
Attach the pull-up bar to the wall bars in such way that the upper supports with the
hooks are approximately at the desired training height. Now, place the lower
supports on the rungs in such way that the upper supports are almost horizontal.
This also ensures sufficient distance to the wall bars. The lower supports can be
secured against lifting if safety screws are available.
Assembly instructions for pull-up bar
90 kg
Page 1 of 2
38367 Grasleben / Germany
Telephone: +49 (0)53 57/181 81
www.sport-thieme.com
Ill. 2: Pull-up bar (122 6906)
80 kg
02/2016
