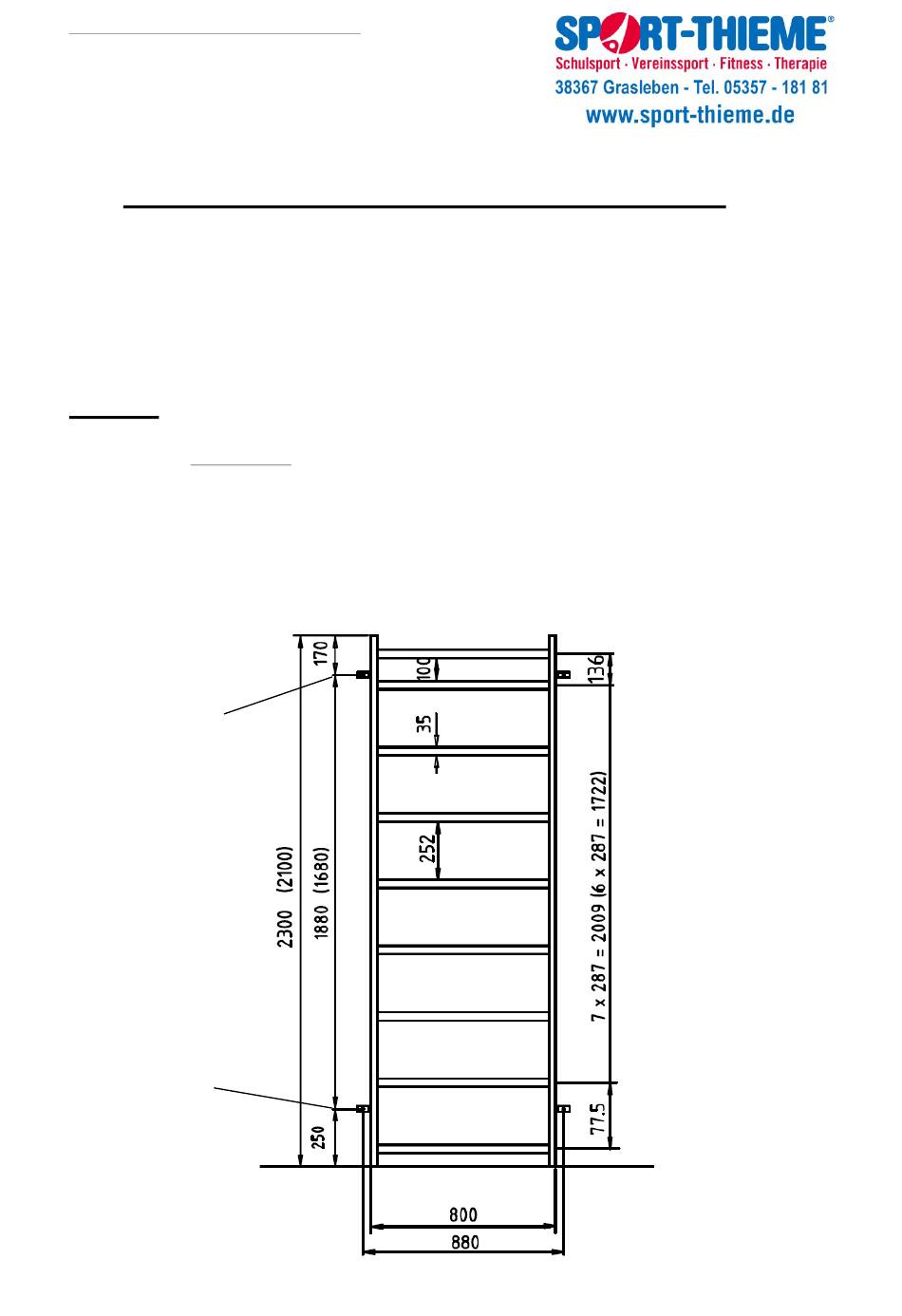

Operating/assembly instructions
Wall bars, w=80 cm
Prod. no. 122 6557; 122 6560
(210 x 80) (230 x 80)
Assembly Instructions for fixed mounting of wall bars
Thank you very much for choosing a Sport-Thieme product. Please read the instructions
fully before you assemble the equipment so you can enjoy the product and its
These wall bars with round rungs are designed for use in primary schools and nurseries
Included:
Pos.
Description
1
1 x wall bars
2
4 x mounting bracket
3
4 x coach bolt with spring washer and nut
4
4 x hexagonal wood screw
5
4 x nylon wall plug
‚
‚
guaranteed safety:
as well as at home.
page 1 of 3
L130 x 65 x 3 x 25 long
M 8 x 40
M 8 x 60
S 12
04/2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sport-thieme 122 6557
Summary of Contents for Sport-thieme 122 6557
- Page 1 (210 x 80) (230 x 80) Assembly instructions for fixed mounting of wall bars Thank you very much for choosing a Sport-Thieme product. Please read the instructions fully before you assemble the equipment so you can enjoy the product and its...
- Page 2 Operating/assembly instructions Wall bars, w=80 cm Prod. no. 122 6557; 122 6560 (210 x 80) (230 x 80) Assembly instructions: Please, make sure that the coach bolts (short bolts with rounded head) sit tightly on the inside of sides. To achieve this, you can use a standard hammer for example. Once the square part of the bolt is hammered into the wood the bolt will not turn when the mounting bracket is later mounted.
- Page 3 Operating/assembly instructions Wall bars, w=80 cm Prod. no. 122 6557; 122 6560 (210 x 80) (230 x 80) Please check the wall before mounting the wall bars to it. The wall should be stable and solid (solid brick, lime sand brick, or reinforced concrete) and be able to cope with horizontal forces in accordance with DIN 7910.
