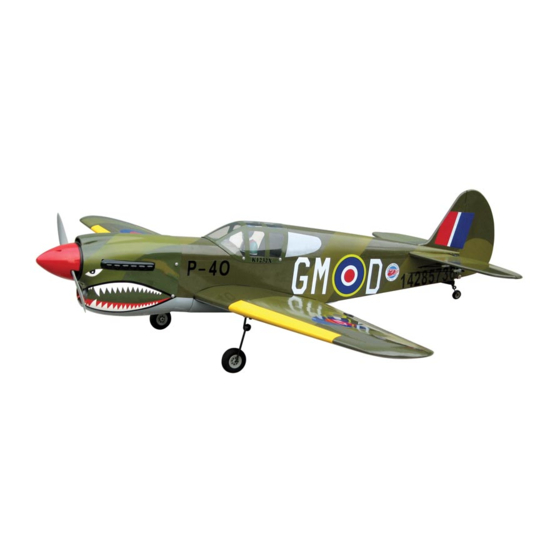

0.46 Cubic inch displacement 2-stroke
0.70-0.81 Cubic inch displacement 4-stroke
Requires : 5-channel radio w/5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
All manuals and user guides at all-guides.com
and 1 low profile retract servo.
INSTRUCTION MANUAL
57 in / 1450 mm
564 sq in / 36.4 sq dm
6.3 lbs / 2860 g
49 in / 1240 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing P-40 WARHAWK
Summary of Contents for The World Models Manufacturing P-40 WARHAWK
- Page 1 All manuals and user guides at all-guides.com INSTRUCTION MANUAL 0.46 Cubic inch displacement 2-stroke 0.70-0.81 Cubic inch displacement 4-stroke Requires : 5-channel radio w/5 standard servos and 1 low profile retract servo. Wing Span 57 in / 1450 mm Wing Area 564 sq in / 36.4 sq dm Flying Weight 6.3 lbs / 2860 g...
-
Page 2: Before You Begin
All manuals and user guides at all-guides.com I N D E X BEFORE YOU BEGIN P. 1 P. 2 PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. - Page 3 All manuals and user guides at all-guides.com Parts List 12. LINKAGE CONNECTOR 2.1mm -- 1 set 1. MAIN WING -- 1 pair 2. SERVO MOUNTING PANEL (PL5310000) -- 1 pair 13. THROTTLE PUSHWIRE Ø1.2x440mm -- 1 pc. SCREW PB2x16mm -- 6 pcs PLASTIC TUBE d2xd3x300mm -- 1 pc.
-
Page 4: Aileron Servo
All manuals and user guides at all-guides.com Main Wing KA3x14mm Main Landing Gear Pre-installed Pre-glued Bottom View Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole Aileron Servo marks at under side of control surfaces. Fuel Tube PWA 2 x 8mm Straper 1.5mm... -
Page 5: Retract Servo
All manuals and user guides at all-guides.com Retract Servo PUSHROD TRAVEL 21mm R-side L-side Wheels up position Wheels down Position Lead to flap & Aileron servo Covering Film Covering Film 32x42mm 32x42mm Bottom View Stabilizer & Elevator Pre-glued (Stabi l i zer) (Mai n Wi ng) B=B' A=A'... -
Page 6: Tail Landing Gear
All manuals and user guides at all-guides.com Vertical Fin & Rudder Pre-glued C=C' Completed Tail Landing Gear PA3x12mm Screw PM2x10mm Screw 1.5mm PA3x12mm M2 Nut 2.1mm Collar 3mm Set Screw 3mm Set Screw M2 NUT PM2x10mm Bottom View... -
Page 7: Elevator Pushrod
All manuals and user guides at all-guides.com Elevator Pushrod Ø1m m pilot holes for Wor ld Models tr i-hor n ar e pr e-dr illed. Please look for pin-hole m ar ks at under side of contr ol sur faces. PB2x14mm Screw P B2 x14mm Cl e vi s... - Page 8 All manuals and user guides at all-guides.com Fuel Tank Fuel Tank Setup 320cc Fuel Tank 320cc Fuel Tank 320cc Install Balsa 8x8x104mm (For Fuel Tank Position Fixing) Servo Set 3x3mm Set Screw 3x 3mm Set Screw Linkage Connector Throttle Pushwire M2 Nut Washer 2mm Washer...
- Page 9 All manuals and user guides at all-guides.com Engine M3.5x30mm Socket Head Screw d3.5xD8mm Washer M3.5 Nut Installed Engine Position 130mm 5.12in d3.5xD8 Washer M3.5x30mm Socket Head Screw Throttle Pushwire Plastic Tube M3.5 Nut Ø1.2x440mm d2xD3x300mm Cowling Please refer to the attached sheet for usage of the transparent PWA2.6x12mm Screw 3D template.
-
Page 10: Radio Equipment
All manuals and user guides at all-guides.com Canopy First insert the grommet to the canopy then apply screw. PWA2.3x12mm Screw d1.5xD6.5mm Silicon Grommet Decals Pilot Apply double-sided tape Silicom Grommet PWA2.3x12mm d1.5xD6.5mm Radio Equipment Install and arrange the servo as shown in the diagram. J1(Pushrod Ø1.8x70mm) Elevator Pushrod Ø1.8x70mm... - Page 11 All manuals and user guides at all-guides.com Main Wing M4x35mm Socket Head Screw PWA3x12mm Screw d4x15mm Washer Socket Head Screw Washer M4x35mm d4xD15mm Bottom View 1.5mm PWA3x12mm Air Scoop Bottom View Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C'...
-
Page 12: Control Throws
All manuals and user guides at all-guides.com Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 20mm 20mm Rudder 30mm 30mm Aileron 10mm 10mm C.G. - Page 13 All manuals and user guides at all-guides.com Warning! I m portant S afety P recauti ons F irst tim e flyer sh o u ld n ever fly b y h im self / h erself. Assistan ce fro m exp erien ced flyer is ab so lu tely n ecessary.
- Page 14 All manuals and user guides at all-guides.com Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
-
Page 15: Optional Parts ( Accessories)
All manuals and user guides at all-guides.com Optional Parts ACCESSORIES) 180mm Extension Fuel Filler Code No. Size Package Code No. Size Package KW0011800 PL8110030 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800... - Page 16 All manuals and user guides at all-guides.com Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., LTD. www.theworldmodels.com A079SPO19990904...
