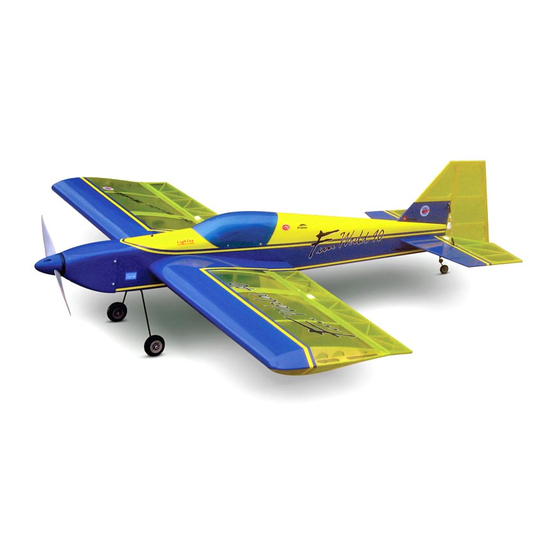

FUN WORLD 40
0.40 cu.in. displacement 2-stroke
Requires : 4-channel radio w/ 5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this
kind of engine powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
Specifications
*Specifications are subject to change without notice.*
THE WORLD MODELS
MANUFACTURING CO., LTD.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.theworldmodels.com
50 in / 1270 mm
700 sq in / 45.2 sq dm
3.6 bs / 1650 g
50.5 in / 1290 mm
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for The World Models Manufacturing FUN WORLD 40

Summary of Contents for The World Models Manufacturing FUN WORLD 40

  • Page 1 INSTRUCTION MANUAL FUN WORLD 40 0.40 cu.in. displacement 2-stroke Requires : 4-channel radio w/ 5 standard servos Specifications Wing Span 50 in / 1270 mm Wing Area 700 sq in / 45.2 sq dm Flying Weight 3.6 bs / 1650 g Fuselage Length 50.5 in / 1290 mm...

  • Page 2: Before You Begin

    FUN WORLD 40 I N D E X BEFORE YOU BEGIN P. 1 P. 2 PARTS LIST P.3-P.11 ASSEMBLY SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do.

  • Page 3: Parts List

    Parts List 1. MAIN WING -- 1 pair 10. FUEL TANK 200cc -- 1 set BALSA 72x6x6mm (For Fuel Tank Position Fixing) -- 1 pc. 2. SCREW PM2x12mm -- 4 pcs CLEVIS -- 2 pcs 11. SCREW PM3x25mm -- 4 pcs STRAPER -- 2 pcs WASHER d3xD7mm -- 8 pcs FUEL TUBE Ø6x5mm -- 4 pcs...

  • Page 4: Aileron Servo

    Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2x12mm Screw Straper Fuel Tube...
  • Page 5 Vertical Fin & Rudder Apply instant type CA glue to both sides of each hinge. C=C' Completed Flying Wire Copper Tube PM2x6mm Screw d2xD5mm Press down the center Washer PM2x12mm Screw 1/3 portion PM2x12mm d2xD5mm Washer Screw M2 Nut PM2x12mm Screw Copper Tube d2xD5mm...

  • Page 6: Elevator Pushrod

    Elevator Pushrod Ø1mm pilot holes for World Models tri-horn are pre-drilled. PM2x12mm Screw Please look for pin-hole marks at under side of control surfaces. PM2x12mm Fuel Tube Ø6x5mm Horn Pushrod Ø1.8x560mm Clevis Bottom View Rudder Pushrod Ø1mm pilot holes for World Models tri-horn are pre-drilled. PM2x10mm Screw Please look for pin-hole marks at side of control surfaces.

  • Page 7: Fuel Tank

    Fuel Tank Fuel Tank 200cc Fuel Tank 200cc Install Balsa 72x6x6mm (For Fuel Tank Position Fixing) Fuel Tank 200cc Bottom View Engine PM3x25mm Screw PM3x25mm M3 Nut d3xD7mm Washer d3xD7mm Washer M3 Nut Installed Engine Position 105 mm 4.13in. Throttle Pushrod Ø1.2x400mm Plastic Tube Bottom View...

  • Page 8: Main Landing Gear

    Main Landing Gear Screw PA2 x10mm Collar 3 1mm 1.5mm 3.1mm Collar Landing PA2x10mm Wire Straps Bottom View 3mm Set Screw Canopy First insert the grommet to the canopy then apply screw. PWA2.3x8mm Screw d1.5xD6.5mm SIlicon Grommet d1.5xD6.5mm 6x620mm PWA2.3x8mm SIlicon Grommet Double-Sided Tape First insert the grommet to the cowling then apply screw.
  • Page 9 Main Wing Wing Tube D14.5x324mm Eye Screw PA2.5x10x23mm 1.5mm Rubber Band Aileron Servo Lead Bottom View Completed...

  • Page 10: Radio Equipment

    Servo Set LINKAGE CONNECTOR 3x3mm Set Screw Throttle Pushwire Linkage Connector M2 Nut 2mm Washer 1.5mm Throttle Servo Please refer to the attached sheet for linkage connector installation. Radio Equipment Install and arrange the servo as shown in the diagram. PWA2x8mm Screw Elevator Pushrod Ø1.8x60mm...
  • Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' D=D' P.10...

  • Page 12: Important Safety Precautions

    # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. FUN WORLD 40 is specially designed to be powered by 2C 0.40 engine, using a more powerful engine does not mean better performance. In fact, over powered engine may cause structural damage and injuries.
  • Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 14 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 15 http://www.theworldmodels.com A2620709...
