ARF

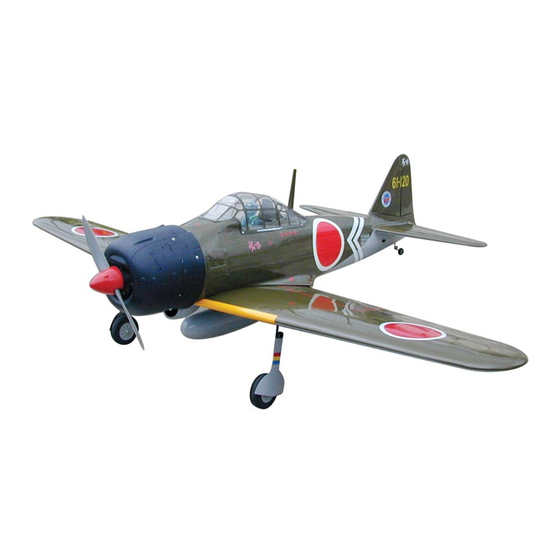

1.60 cubic inch displacement 2-stroke(glow)
Requires: 6- channel radio w/ 7 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
lage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
and 2 low profile retract servos
Specifications
* Specifications are subject to change without notice.*

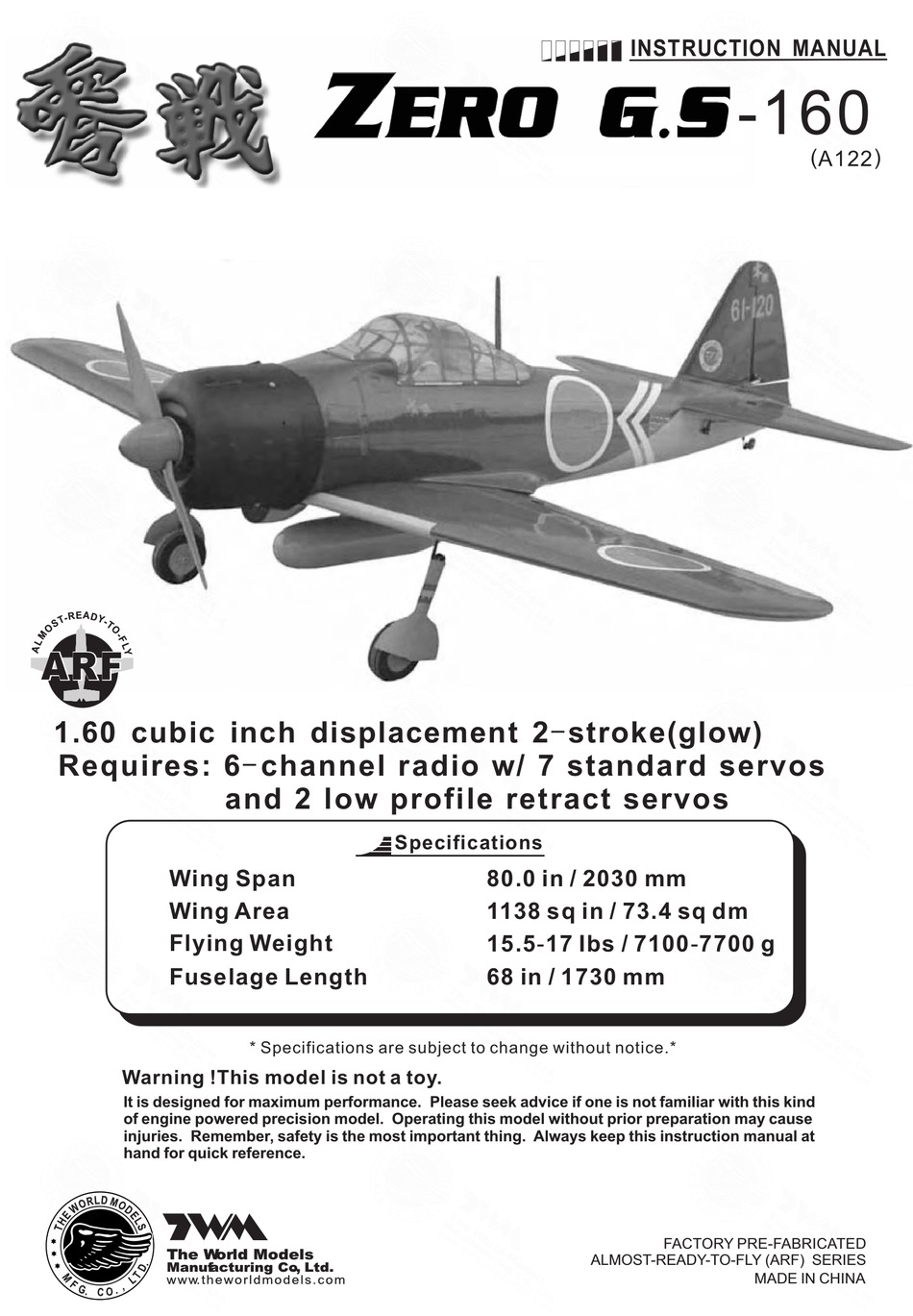

INSTRUCTION MANUAL
80.0 in / 2030 mm
80.0 in / 2030 mm
1138 sq in / 73.4 sq dm
15.5-17 lbs / 7100-7700 g
15.5-17 Ibs / 7100-7700 g
68 in / 1730 mm
ALMOST-READY-TO-FLY (ARF) SERIES
-160
(
A122
FACTORY PRE-FABRICATED
MADE IN CHINA
)
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing ZERO G.S - 160
Summary of Contents for The World Models Manufacturing ZERO G.S - 160
- Page 1 INSTRUCTION MANUAL -160 A122 1.60 cubic inch displacement 2-stroke(glow) Requires: 6- channel radio w/ 7 standard servos and 2 low profile retract servos Specifications 80.0 in / 2030 mm Wing Span 80.0 in / 2030 mm Wing Area 1138 sq in / 73.4 sq dm 15.5-17 lbs / 7100-7700 g Flying Weight 15.5-17 Ibs / 7100-7700 g...
-
Page 2: Before You Begin
-160 I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 - 11 SAFETY PRECAUTIONS P. 11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 13. PLYWOOD 6x61x133mm(For Elevator\ Rudder) -- 2 pcs BALSA 6x6x41mm(For Elevator\ Rudder Servo Stand) -- 4 pcs 2. SCREW PWA2x8mm -- 16 pcs PUSHROD CONNECTOR PL4410010 -- 1 set SCREW PB2x22mm -- 4 pcs FUEL TUBE Ø6x5mm -- 2 pcs SCREW PB2x20mm -- 2 pcs STRAPER PL4112102 -- 2 pcs... - Page 4 Flap & Aileron Pre-glued Flap & Aileron Servos Screw PWA2x8mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Screw PB2x25mm Screw PB2x22mm PWA2x8mm Fuel Tube Straper d2xD4x4mm Screw PB2x22mm Screw PB2x20mm...
- Page 5 Landing Gear & Retract Servos Screw PM2x8mm Washer d2xD5mm d2xD5mm d2 x D5mm Washer Washer PM2x8mm Retract Servos Covering Film Pushrod Travel Pushrod Travel 32mm 32mm Wheel Wheel Down Down Wheel Wheel Fueslage Make sure no glue gets near the pushrod guide sleeves. Screw PA3x15mm Washer...
-
Page 6: Fuel Tank
Engine Mount Screw M6x30mm Washer d6xD15mm A:Inverted mount with Pitts type muffler. M6x D18mm Blind Nut Apply thread locker to screws. Blind nuts are off-centered to keep the spinner at the fuselage axis. B:Inverted mount for stock muffler installation. 7.5mm M6x30mm Engine Mount PL5911120... - Page 7 Stabilizer & Elevator Screw PA3x12mm (Stabilizer) Temporary install the main wing, adjust Washer d3xD7mm leveling of the stabilizer to make it as (Main Wing) parallel to the main wing as possible. B B' A=A' Pre-glued Stabilizer Tube Ø9.5x458mm Bottom View Washer d3xD7mm PA3x12mm...
-
Page 8: Rudder Pushrod
Vertical Fin & Rudder Pre-glued C=C' Rudder Pushrod Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at side of control surfaces. Screw PB2x30mm Pushrod Ø1.8x970mm TWM PL8210010 CLEVIS WRENCH Tri-horn Fuel Tube M3x14mm D6x5mm Clevis Pushrod Ø1.8x970mm... - Page 9 Servo Set 3x3mm Set Screw LINKAGE CONNECTOR Set Screw 3 x 3mm Included with the radio Set. Linkage Connector Washer Washer Washer 2m m Throttle Servo. Please refer to the attached sheet for linkage connector installation. Servos Install and arrange the servo as shown in the diagram. Front Pushrod Charge Receptacles...
- Page 10 Engine M4 Nylon Insert Lock Nut Screw M4 x 35mm Plastic Tube Throttle Pushwire d2xD3x110mm Ø1.2x360mm Washer Screw KM3 x 20mm d4 x D12mm M4 Nylon Insert Lock Nut M3 Nylon Insert Lock Nut Washer M4 x 35mm d4 x D12mm Illustration is for inverted mounting.
- Page 11 Main Wing Screw 70mm Wing Tube Ø25.4 x 750mm Washer d3 x D7mm Washer d4 x D15mm Screw HM4X45mm M3x18mm SOCKET HEAD SCREW M3 Nylon Insert Lock Nut Wing Tube Ø9.5 x 382mm Bottom View Screw PWA3x12mm Down PWA3x12mm d3 x D7mm Washer PM3 x 70mm 3mm Nylon Insert Lock Nut...
- Page 12 Canopy First insert the grommet the cowling then apply screw. Screw d1.5 x D6.5 mm PWA2.3x8mm PWA2.3 x 8mm Antenna Silicon Grommet Sponge d1.5xD6.5 mm Silicon Grommet Pilot Decals Apply double-sided tape Wing Setting A = A ' B = B ' C = C ' Adjust the wing and fuselage configuration as shown in the diagrams.
-
Page 13: Important Safety Precautions
Adjust the control throws as shown in the diagram . Control Throws These throws are good for general flying . Yon can adjust according to your personal preference . Elevator 18mm 18mm Rudder 41mm 41mm Flaps (near fuselage ) 50mm Ailerons ( away from fuselage ) 12mm 12mm... -
Page 14: Landing Gear
ADDENDUM LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder. - Page 15 Should you require to bend the landing gear wire, please insert a round metal bar into the spring coil and apply force there as leverage. Bending the wire directly may damage the mounting block structure. Round metal bar A122PO31681704 P.14...
- Page 16 ANTI-VIBRATION MOUNT INSTALLATION For Engine Mount (PL5911120) Counter Sink edges are Make sure the rounded f a c ing t he s hoc k a bs or bing SILICON PAD. 1.----- KM3x20mm Screw 2.----- Copper Tube 3.----- M3 Nylon Insert Lock Nut 4.----- M4 Nylon Insert Lock Nut 5----- 4mm Washer 6.-----M4x35mm Screw...
- Page 17 180mm Extension Code No. Code No. Package Package Size Size Code No. Package Size Code No. Package Size Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small Code No. Package (EP)clevis. Size KP0041300 Code No SV4031 Code No.
- Page 18 The World Models Manufacturing Co., Ltd. www .thew orldm odels .com A122PO31681704...
