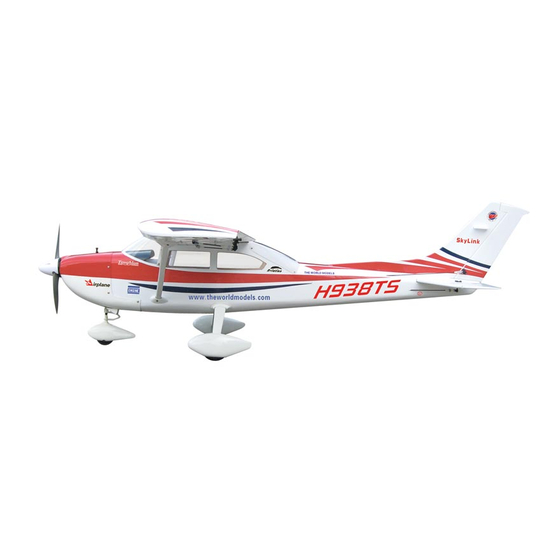

SkyLink 40
0.40-0.50 cu.in. displacement 2-stroke
0.52-0.70 cu.in. displacement 4-stroke
Requires : 5-channel radio w/ 7 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
THE WORLD MODELS
MANUFACTURING CO., LTD.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.theworldmodels.com
Specifications
*Specifications are subject to change without notice.*
66 in / 1680 mm
590 sq in / 38.1 sq dm
6.6 Ib / 3000 g
51 in / 1300 mm
INSTRUCTION MANUAL
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing SkyLink 40
Summary of Contents for The World Models Manufacturing SkyLink 40
- Page 1 INSTRUCTION MANUAL SkyLink 40 0.40-0.50 cu.in. displacement 2-stroke 0.52-0.70 cu.in. displacement 4-stroke Requires : 5-channel radio w/ 7 standard servos Specifications Wing Span 66 in / 1680 mm Wing Area 590 sq in / 38.1 sq dm Flying Weight 6.6 Ib / 3000 g...
-
Page 2: Before You Begin
SkyLink 40 INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.12 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 12. MAIN LANDING GEAR -- 1 pair MAIN LANDING GEAR COVER -- 1 pair 2. SCREW PM2x20mm -- 4 pcs SCREW PM4x45mm -- 2 pcs SCREW PM2x16mm -- 2 pcs SCREW PWA2.6x8mm -- 4 pcs SCREW PM2x22mm -- 4 pcs SOCKET HEAD SCREW M2.5x15mm -- 6 pcs SCREW PM2x18mm -- 2 pcs... - Page 4 Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron & Flap Servos Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2x20mm Screw PM2x16mm PM2x20mm...
-
Page 5: Stabilizer & Elevator
Main Wing Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve, and apply the glue to wing joiner before putting them together. -
Page 6: Elevator Pushrod
Vertical Fin & Rudder Apply instant type CA glue to both sides of each hinge. c = c' Completed Elevator Pushrod Ø1mm pilot holes for World Models horn are pre-drilled. PM2x16mm Screw Please look for pin-hole marks at under side of control surfaces. PM2x16mm 35mm Clevis... -
Page 7: Engine Mount
Engine Mount M4x25mm Socket Head Screw Engine Mount PL5111050 d4xD9mm Washer Blind nuts are off-centered to keep the spinner at the fuselage axis. d4xD9mm Washer M4x25mm Socket Head Screw Front Landing Gear 4.1mm Collar M3x3mm Set Screw 4.1mm Wheel Collar Ø50mm 4.1mm M3x3mm... -
Page 8: Fuel Tank
Fuel Tank Fuel Tank 380cc Fuel Tank 380cc Install Balsa 8x8x156mm (For Fuel Tank Position Fixing) Balsa 8x8x156mm Fuel Tank 380cc Engine PM3x25mm Screw d3xD7mm Washer M3 Nut PM3x25mm Installed Engine Position 127 mm d3xD7mm 5.0 in. Washer M3 Nut Front Wheel Pushrod Ø1.4x260mm Plastic Tube... -
Page 9: Main Landing Gear
Main Landing Gear PM4x45mm Screw Wheel Ø 62mm Set Screw PWA2.6x8mm Screw d4xD9mm Washer M2.5x15mm PM4x45mm M2.5x15mm Socket Head Screw M4 Nut M4 Nut d4xD9mm Washer 4.1mm d2.5xD8mm Plate 1mm Collar Washer d2.5xD8mm Washer 4.1mm Wheel Collar PWA2.6x8mm Bottom View Completed Servo Set 3x3mm Set Screw... -
Page 10: Radio Equipment
Radio Equipment Elevator Pushrod Ø1.8x100mm M2 Nut Install and arrange the servos as shown in the diagram. Elevator Servo KM2x8mm Rudder Servo Receiver Front Rudder Pushrod Front Wheel Pushrod Straper Ø1.8x760mm Ø1.4x260mm Fuel Tube Ø6x5mm Throttle Pushrod Elevator Servo Elevator Pushrod Battery Ø1.2x370mm Ø1.8x650mm... -
Page 11: Wing Struts
Cowling & Spinner First insert the grommet to the cowling then apply screw. PWA2.6x12mm Screw d1.5xD6.5mm Silicon Grommet Spinner PWA2.6x12mm Ø52mm Please refer to the attached sheet for usage of the transparent 3D template. d1.5xD6.5mm Silicon Grommet Bottom View Wing Struts PM2.5x15mm Screw PM2.5x15mm Bottom View... - Page 12 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A’ B’ C’ D’ A=A' B=B' C=C' D=D' P.11...
-
Page 13: Control Throws
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. SkyLink 40 is specially designed to be powered by 2C 0.40-0.50 / 4C 0.52-070 engine, using a more powerful engine does not mean better performance. In fact, over powered engine may cause structural damage and injuries. - Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
