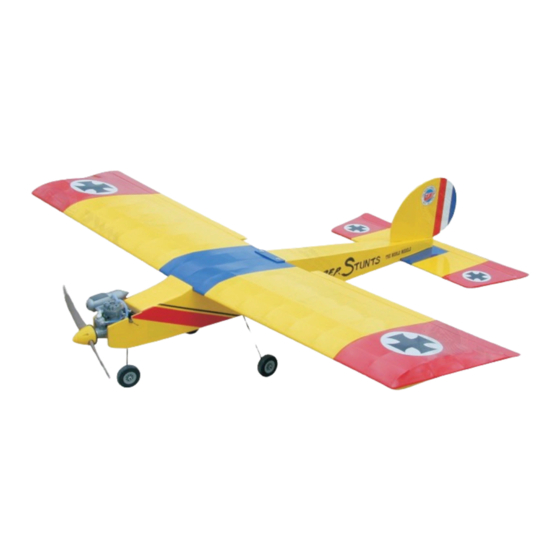

0.40-0.46 cu in displacement 2-stroke
Requires : 4-channel radio w/ 5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www .thew orldm odels .com
A095PO25881103
.
.
Specifications
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
66.5 in / 1690 mm
882 sq in / 56.9 sq dm
5.5 lbs / 2500 g
57.0 in /1450 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing SUPER STUNTS
Summary of Contents for The World Models Manufacturing SUPER STUNTS
- Page 1 INSTRUCTION MANUAL 0.40-0.46 cu in displacement 2-stroke Requires : 4-channel radio w/ 5 standard servos Specifications Wing Span 66.5 in / 1690 mm Wing Area 882 sq in / 56.9 sq dm Flying Weight 5.5 lbs / 2500 g Fuselage Length 57.0 in /1450 mm * Specifications are subject to change without notice.* Warning !This model is not a toy.
-
Page 2: Before You Begin
I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair SPINNER Ø57mm PL2111057 -- 1 set THROTTLE PUSHWIRE Ø1.2x340mm -- 1 pc. 2. SCREW PB2x12mm -- 4 pcs PLASTIC TUBE d2xD3x180mm -- 1 pc. FUEL TUBE Ø6x5mm -- 4 pcs STRAPER PL4112102 -- 2 pcs 12. - Page 4 Main Wing Apply instant type CA glue to both sides of each hinge. Aileron & Flap Servos Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Screw PB2x12mm Pushrod Ø1.8 x 175mm Straper Lead for servo...
-
Page 5: Stabilizer & Elevator
Stabilizer & Elevator Apply instant type CA glue to both sides of each hinge. BALSA(Fin Tip) 6x54.4x223.5mm (Stabilizer) (Main Wing) B=B' Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible. -
Page 6: Engine Mount
Fuel Tank Cable Tie 1.5x5x400mm Double-sided Tape 40x100mm Completed Engine Mount M4x25mm Socket Head Screw Engine Mount Engine Mount PL 5111-050 Washer d4xD9mm PL5111050 Apply thread locker to screws d4xD9mm Blind nuts are off-centered to keep M4x25mm Washer the spinner at the fuselage axis. Front Landing Gear Collar 4.1mm... -
Page 7: Main Landing Gear
Main Landing Gear PA 3 x 12mm Screw PA3x12mm Mounting Plate 12x20mm 2m m Main Wheels Main Landing Gear Collar 4.1mm Wheel 65mm 4.1mm Collar 3mm Set Screw Installed Engine Position Engine Spinner 52mm PM2x10mm Screw M3.5x30mm d2xD5mm Washer 118mm 4.65 in. -
Page 8: Elevator Pushrod
Ø1mm pilot holes for World Models horn are Pushrod Pushwire pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2x16mm Screw Copper Tube d2.5xD3.2x8mm Fuel Tube Horn Ø6x5mm PM2x16mm Wire Ø 1x860mm TWM Pl8210010 CLEVIS WRENCH Ø1mm pilot holes for World Models horn are Elevator Pushrod pre-drilled. -
Page 9: Radio Equipment
Servo Set 3 X 3mm Set Screw Linkage Connector 2mm Nut Washer 2mm Washer Washer 2m m Throttle Servo. M2 Nut Please refer to attached sheet for linkage connector installation. Install and arrange the servo as shown in the diagram. Radio Equipment Clamp the copper tube Rigging Coupler... -
Page 10: Control Throws
Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 15mm 15mm Rudder... - Page 11 Warning! Important Safety Precautions # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. is specially designed to be powered by 0.40-0.46 engine, using a...
- Page 12 The World Models Manufacturing Co., LTD. www .thew orldm odels .com A095PO25881103...
