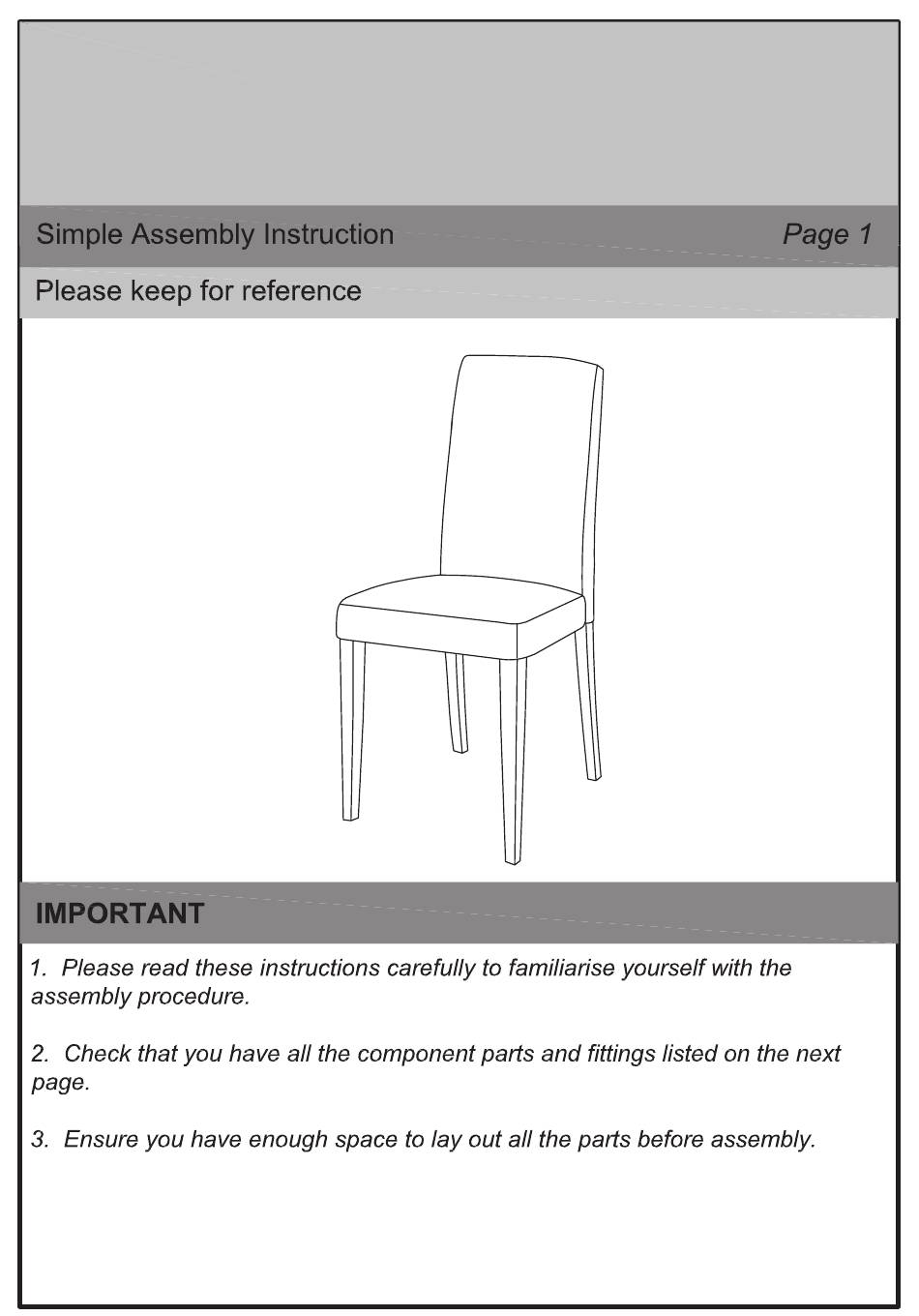

Cat. No. 6029731 KINGSTON OAKSTAIN PAIR OF CHOC CHAIRS 6029779 KINGSTON OAKSTAIN PAIR OF CREAM CHAIRS 6029803 KINGSTON WALNUTSTAIN PAIR OF CHOC CHAIRS 6029834 KINGSTON WALNUTSTAIN PAIR OF CREAM CHAIRS 4. To avoid scratching it is recommended that you assemble the chair on a soft level surface.
Page 2
Components and fittings for one chair assembling.
Page 3
Secure the short JCBC screws (E) using spring washers (F) and flat washers (G) as show in Fig.2. Do not fully tighten all screws at this stage.
Page 4
Dining Chair Assembly Instructions 603/4135 - Please keep for future reference 603/2333 603/2900 603/0452 602/9834 603/2364 Dimensions Width - 44cm Depth - 54cm Height - 92cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 25/09/12...
Page 5
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Assemble this product on a flat • Discard all extra fittings and • We do not surface. keep fittings out of reach of recommend the children.
Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Backrest Seat Leg x 2 (36 x 10 x 92cm) (43.5 x 41 x 9.5cm) (3 x 3 x 43cm) Components - Fittings Please check you have all the fittings listed below...
Page 7
Assembly Instructions Step 1 Attaching legs Place the seat upside down on a flat protected surface. Insert the legs into the holes of the seat as shown and fix using bolts , spring washer washers . Tighten the bolts using allen key Important: Do not fully tighten bolts at...
Page 8
Assembly Instructions Step 3 Aligning & securing the legs Carefully turn the chair upright and place on a flat surface. Tighten all bolts using allen key Note: This step is essential to prevent the chair from wobbling due to uneven legs. Carefully sit on the chair and make adjustments to ensure...
Page 13
Do not stand or put weight on this product during assembly, this could cause damage. unit or your floor.
Page 14
Components Panels Please check you have all the panels listed below Table T op Table Leg x 4 call the Customer Helpline:0845 6400 800 Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 15
Table Leg Locate the table leg at 4 corners of table Assemble hex bolt s pring washers and flat washer through corner b lock using hex spanner Tighten the bolts, and repeat for all legs. Carefully turn the table over, and put the table on the floor The assembly is complete.
Page 17
Do not stand or put weight on this product during assembly, this could cause damage. unit or your floor.
Page 18
Components - Panels Please check you have all the panels listed below Table Top x 1 Table Leg x 4 (150 x 90 )cm ( 72 x 5.4 )cm Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly.
Page 19
Table Leg Locate the table leg at 4 corners of table Assemble bolts , spring washers and flat washer through corner block using hex key Tighten the bolts, and repeat for all legs Carefully turn the table over, and put the table on the floor The assembly is complete.
