Matrix
-Metal / Glass
Assembly Instructions -
Dimensions
Width - 90cm
Depth - 30cm
Height - 76cm
Important -
Please read these instruction fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference

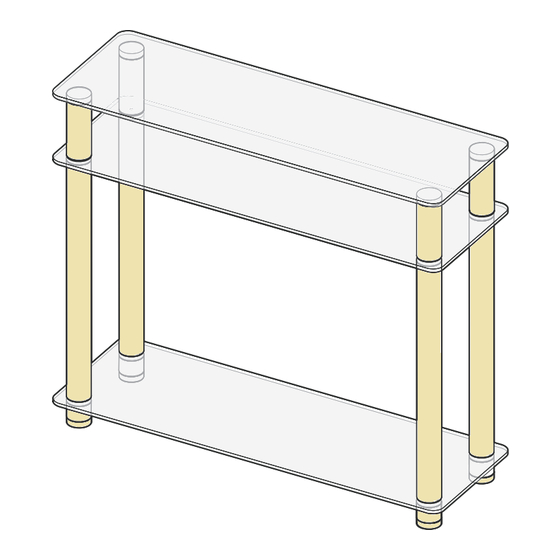

Console Table
609/0739
609/0454
Issue 1 - 12/01/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Matrix 609/0739
Summary of Contents for Argos Matrix 609/0739
- Page 1 Matrix -Metal / Glass Console Table Assembly Instructions - Please keep for future reference 609/0739 609/0454 Dimensions Width - 90cm Depth - 30cm Height - 76cm Important - Please read these instruction fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 12/01/09...
- Page 2 Take to your local authority waste disposal centre. Keep These Instructions For Future Reference This product complies with Argos plc Batch No./Date of manufacture: BS EN 14749:2005 489-499 Avebury Boulevard Central Milton Keynes MK9 2NW...
- Page 3 Components - Panels Please check you have all the pan els listed below Glass top x 1 Metal tube x 4 Metal rod x 4 (90 x 30cm) (5.08 x 13.5cm) (74.5 x 0.7cm) Metal tube x 4 Metal tube x 4 Glass shelf x 2 (5.08 x 5.5cm) (5.08 x 53cm)
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fitting Metal Rod Finger tighten 4 pcs of metal rods onto glass as shown. as shown. as shown. as shown. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Step 2 Fitting Wall Straps Put 2 pcs of wall straps...
- Page 6 Assembly Instructions Step 3 Fitting Metal Tube Attach 4 pcs of metal tubes through 4 pcs of metal rods shown. Step 4 Attaching Glass Shelf Please be careful to Matt surface place glass shelf through 4 pcs of metal rods rods rods rods...
- Page 7 Assembly Instructions Step 5 Fitting Metal Tube Attach 4 pcs of metal tubes tubes tubes tubes tubes tubes tubes tubes through 4 pcs of metal rods shown. Step 6 Attaching Glass Shelf Please be careful to place glass shelf Matt surface through 4 pcs of metal rods as shown.
- Page 8 Assembly Instructions Step 7 Fitting Cap Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown. Step 8 Fitting glass shelf in position Push two sides of glass down. down.
- Page 9 Assembly Instructions Step 8- continued Finger tighten 4 pcs of feet onto metal rods as shown. Step 9 Adjust Wall strap Straighten up the wall straps as shown...
- Page 10 Assembly Instructions Step 10 Fixing to wall It is recommended that the unit is fixed to a wall. Fix wall strap to top of the unit by using screw. With help, move the unit into position. Warning: The unit is BRICK heavy.
