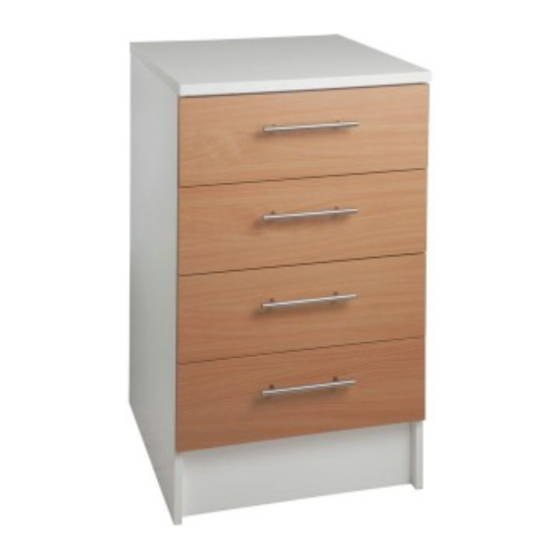

Argos Athina 608/0804 Assembly Instructions Manual

500 drawer unit
Hide thumbs

Advertisement

Quick Links

Download this manual
Athina - 500 Drawer Unit
Assembly Instructions -
Dimensions
Width - 50cm
Depth - 59cm
Height - 89.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
608/0804
608/0921
608/0866
608/0983
MADE IN
BRITAIN
Issue 1 - 05/01/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Athina 608/0804 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argos Athina 608/0804

Summary of Contents for Argos Athina 608/0804

  • Page 1 Athina - 500 Drawer Unit Assembly Instructions - 608/0804 Please keep for future reference 608/0921 608/0866 608/0983 Dimensions Width - 50cm Depth - 59cm MADE IN Height - 89.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 05/01/10...

  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 34kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D0315A) (D0316A) (D0338A) (870 X 570mm) (870 x 570mm) (500 x 590mm) Rail...
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare 4 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten metal dowels up fully against...
  • Page 6 Assembly Instructions Step 5 Attach drawer front Turn the drawer assembly over and push onto the back of the drawer front Note: Turn locking nuts clockwise to secure panels - more than 1/2 a turn. Step 6 Attach 2 handles Attach each handle to the drawer fronts using 2 screws...
  • Page 7 Assembly Instructions Step 8 Fit 2 brackets to the left side Fit a bracket to the left side , 100mm in from the back edge, see diagram. Fit another bracket 100mm the left side , 100mm down from the top edge, 100mm see diagram.
  • Page 8 Assembly Instructions Step 11 Fit 2 brackets to the right side Fit a bracket to the 100mm right side , 100mm 100mm down from the back edge, see diagram. Fit another bracket the right side 100mm down from the top edge, see diagram. Secure each bracket using screw Note: The brackets must...
  • Page 9 Assembly Instructions Step 14 Prepare the base Insert 4 large locking nuts into the base as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into the base shown. 10mm Note: Wooden dowels must not stick out from the edge by more than 10mm or they may...
  • Page 10 Assembly Instructions Step 17 Fit the 2 rails and plinth One at a time, push the 2 rails and plinth onto the right side Support this rail shown. Use a screwdriver to tighten the 3 large locking nuts fitted to the 3 panels, as shown.
  • Page 11 Assembly Instructions Step 19 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
  • Page 12 Assembly Instructions Step 20 Fit the top Position the top onto the unit, making sure that the back edge is flush with the back edge of the sides Secure the top using screw through the 2 brackets fitted at the top edge of the side panels Step 21...
  • Page 13 Assembly Instructions Step 22 Secure the unit to the wall Using the brackets fitted to the back edge of the sides screw the unit to the wall. Fixings are not supplied as they will need to suit the wall type, and the length of screw will depend on the distance of the back of the Unit to...
  • Page 14 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
  • Page 16 ALR2456...
  • Page 17 Athina - 500 Drawer Unit Assembly Instructions - 608/0804 Please keep for future reference 608/0921 608/0866 608/0983 608/2974 Dimensions Width - 50cm Depth - 59cm MADE IN Height - 89.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 3 - 25/03/11...
  • Page 18 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 34kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 19 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D0315B) (D0316B) (D0338A) (870 X 570mm) (870 x 570mm) (500 x 590mm) Rail...
  • Page 20 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 21 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare 4 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten metal dowels up fully against...
  • Page 22 Assembly Instructions Step 5 Attach drawer front Turn the drawer assembly over and push onto the back of the drawer front Note: Turn locking nuts clockwise to secure panels - more than 1/2 a turn. Step 6 Attach 2 handles Attach each handle to the drawer fronts using 2 screws...
  • Page 23 Assembly Instructions Step 8 Fit 2 brackets to the left side Fit a bracket to the left side , 100mm in from the back edge, see diagram. Fit another bracket 100mm the left side , 100mm down from the top edge, 100mm see diagram.
  • Page 24 Assembly Instructions Step 11 Fit 2 brackets to the right side Fit a bracket to the 100mm right side , 100mm 100mm down from the back edge, see diagram. Fit another bracket the right side 100mm down from the top edge, see diagram. Secure each bracket using screw Note: The brackets must...
  • Page 25 Assembly Instructions Step 14 Prepare the base Insert 4 large locking nuts into the base as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into the base shown. 10mm Note: Wooden dowels must not stick out from the edge by more than 10mm or they may...
  • Page 26 Assembly Instructions Step 17 Fit the 2 rails and plinth One at a time, push the 2 rails and plinth onto the right side Support this rail shown. Use a screwdriver to tighten the 3 large locking nuts fitted to the 3 panels, as shown.
  • Page 27 Assembly Instructions Step 19 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
  • Page 28 Assembly Instructions Step 20 Fit the top Position the top onto the unit, making sure that the back edge is flush with the back edge of the sides Secure the top using screw through the 2 brackets fitted at the top edge of the side panels Step 21...
  • Page 29 Assembly Instructions Step 22 Secure the unit to the wall Using the brackets fitted to the back edge of the sides screw the unit to the wall. Fixings are not supplied as they will need to suit the wall type, and the length of screw will depend on the distance of the back of the Unit to...
  • Page 30 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
  • Page 32 ALR2456...
