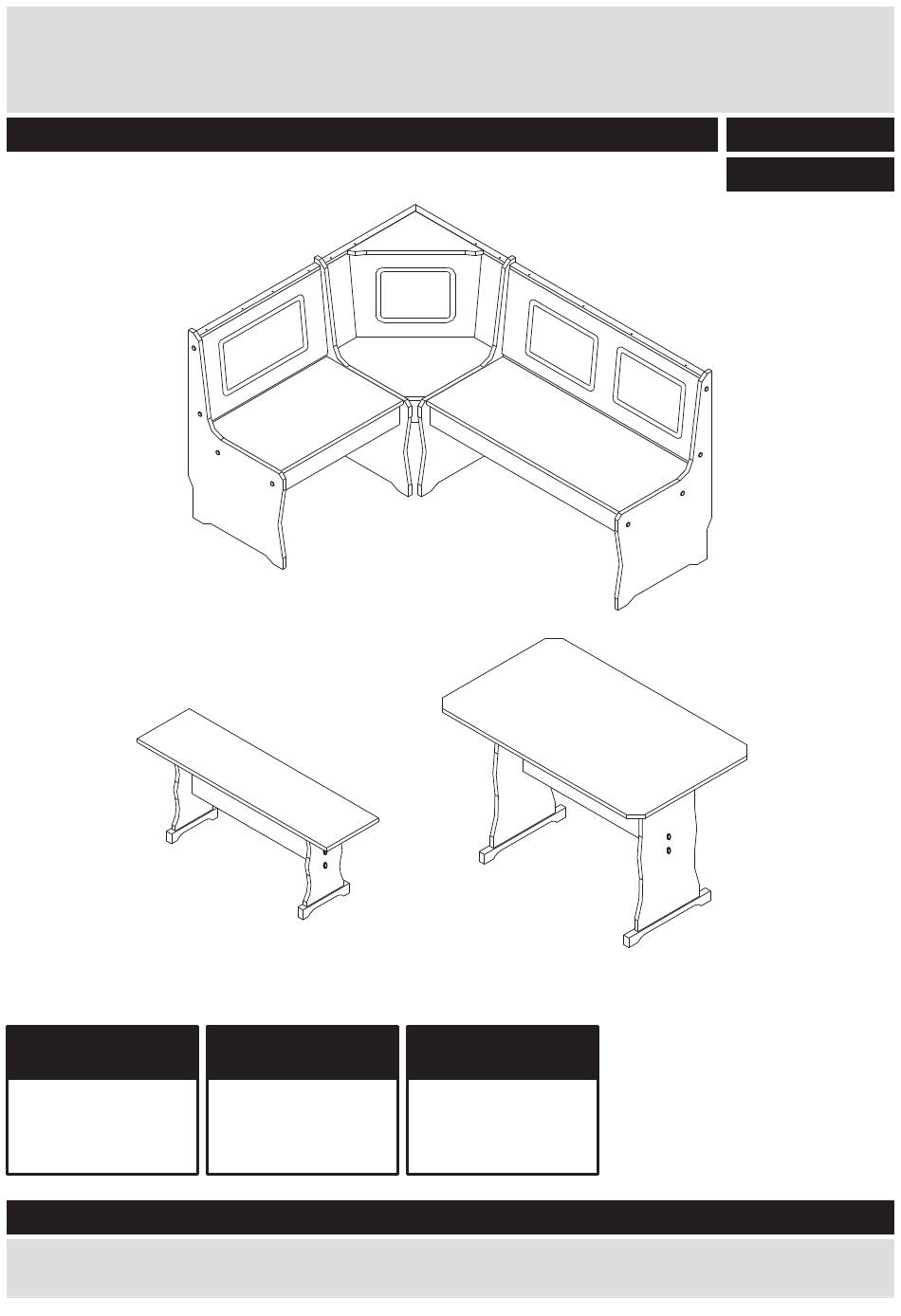

Puerto Rico - Nook 3 Corner Set
Assembly Instructions
Dimensions of
the corner nook
Width - 161.5cm
Width - 123.5cm
Height - 85cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
- Please keep for future reference
Dimensions
of the table
Width - 109cm
Depth - 65cm
Height - 73.5cm
Dimensions
of the bench
Width - 102cm
Depth - 28cm
Height - 43cm
Customer Helpline: 08456 400 800
603/1028
603/0366
Issue 1 - 18/08/10
Advertisement
Related Manuals for Argos Puerto Rico
Summary of Contents for Argos Puerto Rico
- Page 1 Puerto Rico - Nook 3 Corner Set Assembly Instructions - Please keep for future reference 603/1028 603/0366 Dimensions of Dimensions Dimensions the corner nook of the table of the bench Width - 161.5cm Width - 109cm Width - 102cm Width - 123.5cm...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not from natural timber; you may recommend the components and tools listed on pages 2 and 3. notice some variation in the grain use of power and colour of different component...
- Page 3 Components - Panels Please check you have all the panels listed below 5 Top corner (54.8 x 54,8cm) 1 Right side 2 Left side 3 Middle right 4 Middle left panel panel side panel side panel (85 x 50cm) (85 x 50cm) (85 x 50cm) (85 x 50cm) 12 Small corner...
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Inserting dowels. Insert dowels into the indicated parts. Note: Dowels on parts are a bit loose, this is not a manufacture failure. Step 2 Fixing blocks. Fix blocks to the pre drilled holes in the seat panels using screws...
- Page 6 Assembly Instructions Step 3 Attention! Fixing panels. Right! Left! Attention: The product can be assembled left or right. Assembly Instructions show option right! For left option swap back panels as well as rails Attach sides to the back panel Option right! and cross rails using bolts...
- Page 7 Assembly Instructions Step 4 Fixing corner seat. Fit corner seat the benches then fix using screws Step 5 Fit top rails the back panels then fix using screws Front Fit small corner back panels to the benches then fix using screws...
- Page 8 Assembly Instructions Step 6 Attach screws to the small corner back panels from underneath the seat panel as shown. Place corner back panel in place. Step 7 Fit top corner to the back corner panels then fix using screws Fix metal studs to the side panels as shown.
- Page 9 Assembly Instructions Step 9 Place seat panels into place as shown. Note: Wooden blocks must face down. Step 10 Caution: Carefully turn the product upright as shown. Fix seat panels using screws Fix blocks in the sides using screws...
- Page 10 Assembly Instructions Step 11 Attach corner rail to the corner seat using screws Hold rail in place and fix it to the seat panel first. View from behind Fix rail to the sides using screws Step 12 Assembling the table and bench.
- Page 11 Assembly Instructions Step 13 Fit top rails using dowels Attach top rails using screws Step 14 Fit base rails using dowels Attach base rails using screws...
- Page 12 Assembly Instructions Step 15 Fixing table top and seat panel. Caution: Curefully lay the panels with holes facing up in a soft and clean surface to avoid damaging the product. Important: Make sure the correct screws are used in this step to avoid damaging the product.
