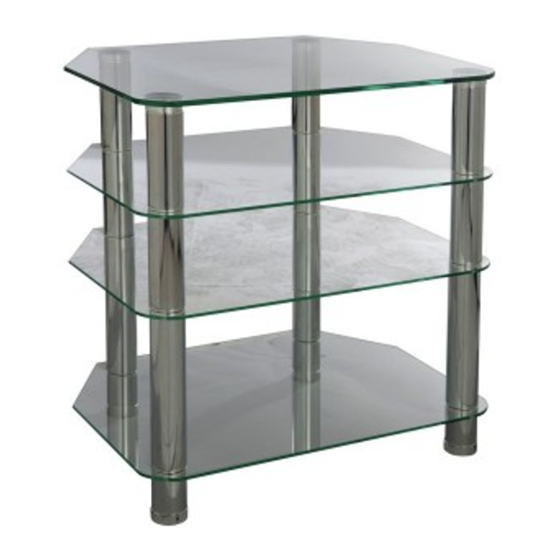

Matrix - Glass Small Entertainment unit
Assembly Instructions -
Dimensions
Width - 60cm
Depth - 45cm
Height - 59.5cm
Important -
Please read these instruction fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
609/0722
610/8566
Issue 1 - 11/01/98
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Matrix 609/0722
Summary of Contents for Argos Matrix 609/0722

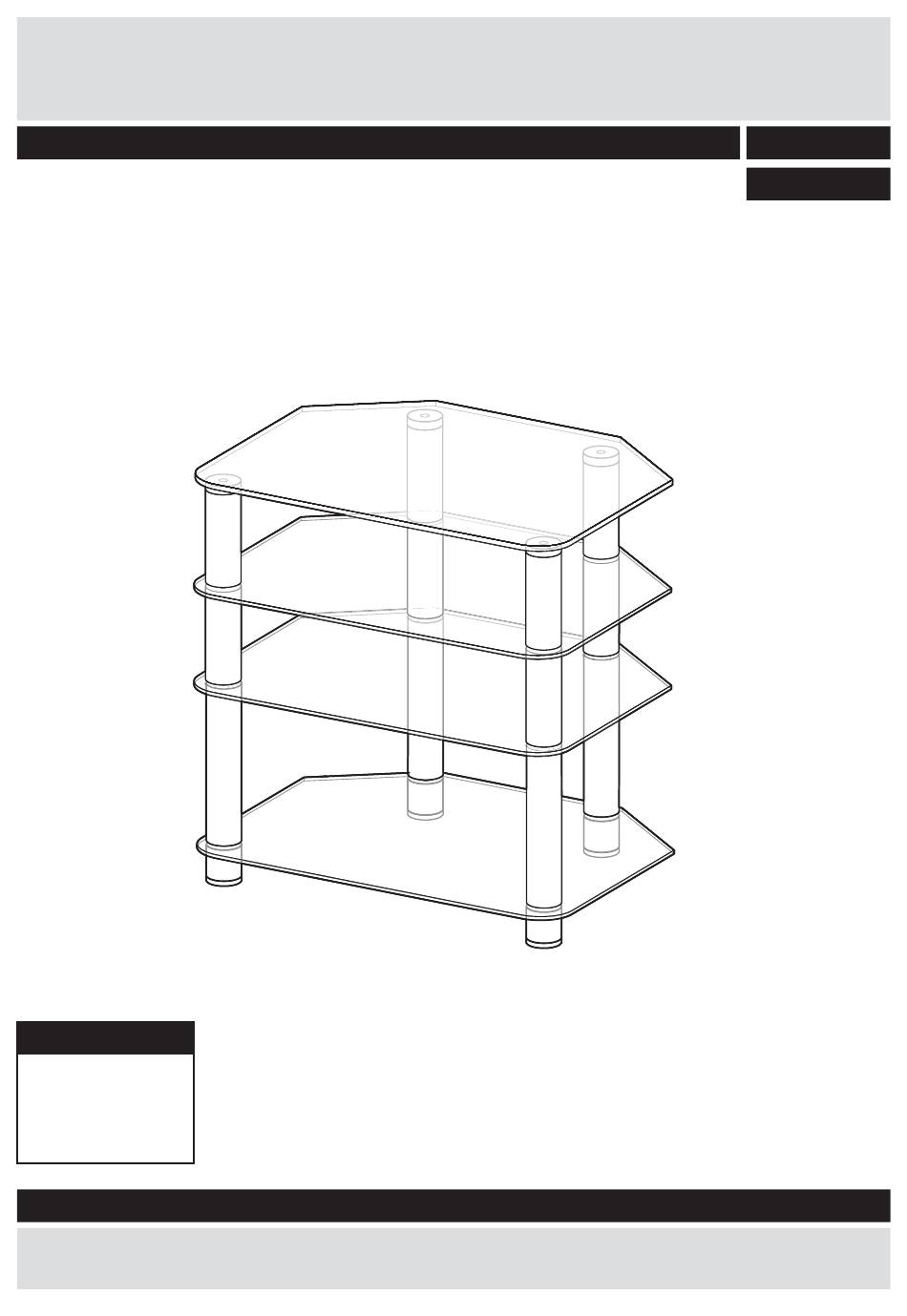

- Page 1 Matrix - Glass Small Entertainment unit Assembly Instructions - Please keep for future reference 609/0722 610/8566 Dimensions Width - 60cm Depth - 45cm Height - 59.5cm Important - Please read these instruction fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 11/01/98...
- Page 2 Take to your local authority waste disposal centre. Keep These Instructions For Future Reference This product complies with Argos plc Batch No./Date of manufacture: BS EN 14749:2005 489-499 Avebury Boulevard Central Milton Keynes MK9 2NW...
- Page 3 Components - Panels Please check you have all the panels listed below Metal rod x 4 Glass top Metal tube x 8 (58 x 0.8cm) (60x45cm) (13 x 5.08cm) Metal Tube x4 (5x 5.08cm) Glass shelf x 3 Metal tube x 4 (60 x 45cm) (22 x 5.08cm) Feet x 4...
- Page 4 Assembly Instructions Step 1 Attaching rods Finger tighten 4 pcs of metal rods onto glass top shown. Step 2 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 5 Assembly Instructions Assembly Instructions Step 3 Attaching shelf Matt surface Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 4 Attaching tubes Attach 4 pcs of metal tube through 4 pcs of metal rods shown.
- Page 6 Assembly Instructions Step 5 Matt surface Attaching shelf Please be careful to place glass shelf through 4 pcs of metal rods Step 6 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 7 Assembly Instructions Assembly Instructions Step 7 Matt surface Attaching shelf Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 8 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 8 Assembly Instructions Assembly Instructions Step 9 Attaching feet Finger tighten 4 pcs of feet onto the unit as shown. Step 10 Assembly is completed. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 9 Matrix - Glass Small Entertainment unit Assembly Instructions - Please keep for future reference 609/0722 610/8566 Dimensions Width - 60cm Depth - 45cm Height - 59.5cm Important - Please read these instruction fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 11/01/98...
- Page 11 Components - Panels Please check you have all the panels listed below Metal rod x 4 (58 x 0.8cm) Glass top (60x45cm) Metal tube x 8 (13.5 x 5.08cm) Glass shelf x 3 (60 x 45cm) Metal tube x 4 (22.5 x 5.08cm) Metal Tube x4 (5.5x 5.08cm) (1.3 x 5.2cm)
- Page 12 Assembly Instructions Step 1 Attaching rods Finger tighten 4 pcs of metal rods onto glass top shown. Step 2 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 13 Assembly Instructions Assembly Instructions Step 3 Attaching shelf Matt surface Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 4 Attaching tubes Attach 4 pcs of metal tube through 4 pcs of metal rods shown.
- Page 14 Assembly Instructions Step 5 Matt surface Attaching shelf Please be careful to place glass shelf through 4 pcs of metal rods Step 6 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 15 Assembly Instructions Assembly Instructions Step 7 Matt surface Attaching shelf Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 8 Attaching tubes Attach 4 pcs of metal tubes through 4 pcs of metal rods as shown.
- Page 16 Assembly Instructions Assembly Instructions Step 9 Attaching feet Finger tighten 4 pcs of feet onto the unit as shown. Step 10 Assembly is completed. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 17 Matrix - Glass Small Entertainment unit Assembly Instructions - Please keep for future reference 609/0722 610/8566 Dimensions Width - 60cm Depth - 45cm Height - 59.5cm Important - Please read these instruction fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 11/01/98...
- Page 19 Components - Panels Please check you have all the panels listed below Metal rod x 4 (58 x 0.6cm) Glass top (60x45cm) Metal tube x4 (13.2 x 5 cm) Glass shelf x 3 (60 x 45cm) Metal tube x 4 (22.3 x 5.08cm) Metal Tube x4 (6.2x 5 cm) Feet x 4...
- Page 20 Assembly Instructions Step 1 Attaching rods Finger tighten 4 pcs of metal rods onto glass top shown. Step 2 Attaching tubes Attach 4 pcs of metal 4 pcs of tubes through plastic pad 4 pcs of metal rods as shown.
- Page 21 Assembly Instructions Assembly Instructions Step 3 Matt surface Attaching shelf Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 4 Attaching tubes Attach 4 pcs of metal 8 pcs of tube plastic pad through 4 pcs of metal rods as shown.
- Page 22 Assembly Instructions Step 5 Attaching shelf Matt surface Please be careful to place glass shelf through 4 pcs of metal rods Step 6 Attaching tubes Attach 4 pcs of metal tubes 8 pcs of plastic pad through 4 pcs of metal rods as shown.
- Page 23 Assembly Instructions Assembly Instructions Step 7 Attaching shelf Matt surface Please be careful to place glass shelf through 4 pcs of metal rods as shown. Step 8 Attaching tubes Attach 4 pcs of metal tubes 4 pcs of plastic pad through 4 pcs of metal rods as shown.
- Page 24 Assembly Instructions Assembly Instructions Step 9 Attaching feet Finger tighten 4 pcs of feet onto the unit as shown. Step 10 Assembly is completed. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
